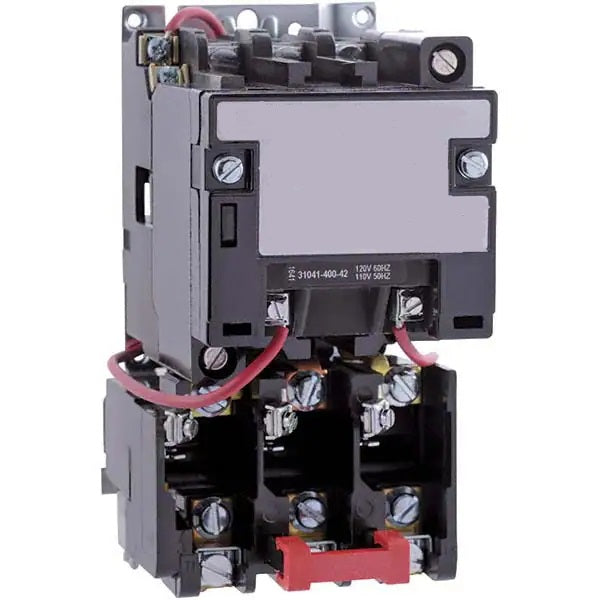

Square D 8536SBO2V01H30S NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 5 HP at 460 VAC, up to 100 kA SCCR

Product Description

The Square D 8536SBO2V01H30S NEMA motor starter is designed for full voltage starting and stopping of AC squirrel cage motors. This model features a non-reversing, three-pole configuration with a rating of up to eighteen amperes. It can handle three-phase motors rated at three horsepower at two hundred and thirty volts AC and five horsepower at four hundred and sixty volts AC. The device includes a Motor Logic overload relay that detects overcurrent conditions within a range of six to eighteen amperes. It is suitable for applications requiring a Short Circuit Current Rating of up to one hundred kA when connected to the appropriate circuit protection.

• Rating: Non-reversing, Size 0, 18A at 460 VAC
• Features: Motor Logic overload relay for enhanced safety
• Type: Open device without enclosure

Product Highlights

This motor starter is UL listed and CSA certified, ensuring compliance with industry standards for safety and performance.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 8536SBO2V01H30S
• Brand: Square D
• Warranty Description: Contractual Warranty: 18 months
• Height: 6.77 inches
• Width: 3.50 inches
• Depth: 4.22 inches
• Voltage Coil: 24 VAC, 60 Hz
