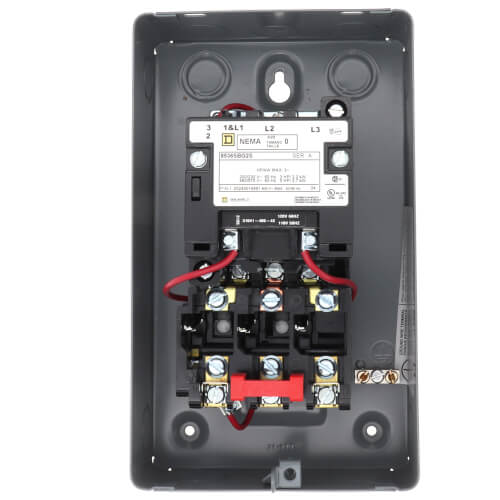

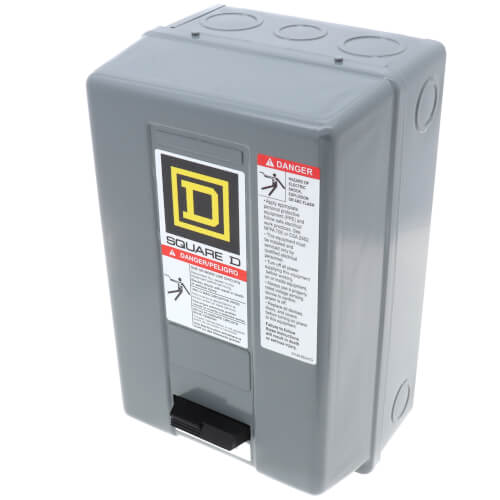

Square D 8536SBG2V02S Magnetic Motor Starter NEMA Size 0 Non-Reversing

Product Description

The Square D 8536SBG2V02S Magnetic Motor Starter is designed for full voltage starting and stopping of AC motors. It features a NEMA Size 0 classification, making it suitable for various industrial applications. The motor starter includes a melting alloy thermal overload relay for enhanced protection.

• Full-voltage starter for AC motors
• Melting alloy thermal overload relay
• Suitable for industrial use

Product Highlights

The Square D 8536SBG2V02S ensures reliable motor starting and stopping with a robust thermal overload relay system. Featuring non-reversing action and NEMA 1 general purpose enclosure, this motor starter offers dependable performance in demanding environments.

Product Information

Standard Information

• Brand: Square D
• Model: 8536SBG2V02S
• Type: Magnetic Motor Starter
• Non-reversing: Yes

Technical Specifications

• NEMA Size: 0
• Amps AC: 18
• Coil Volts: 120VAC
• Enclosure NEMA Rating: 1
• HP @ 3 Phase - 240V: 3
• HP @ 3 Phase - 480V: 5
• HP @ 3 Phase - 208V: 3
• HP @ 3 Phase - 575V: 5
• Height: 10 inches
• Width: 6 inches
• Depth: 5.56 inches
• Standards: UL Listed, CSA Certified
• Starter Type: NEMA
• Hz: 50/60
