SCHNEIDER ELECTRIC 8536SAG12V08 MOTOR STARTERS

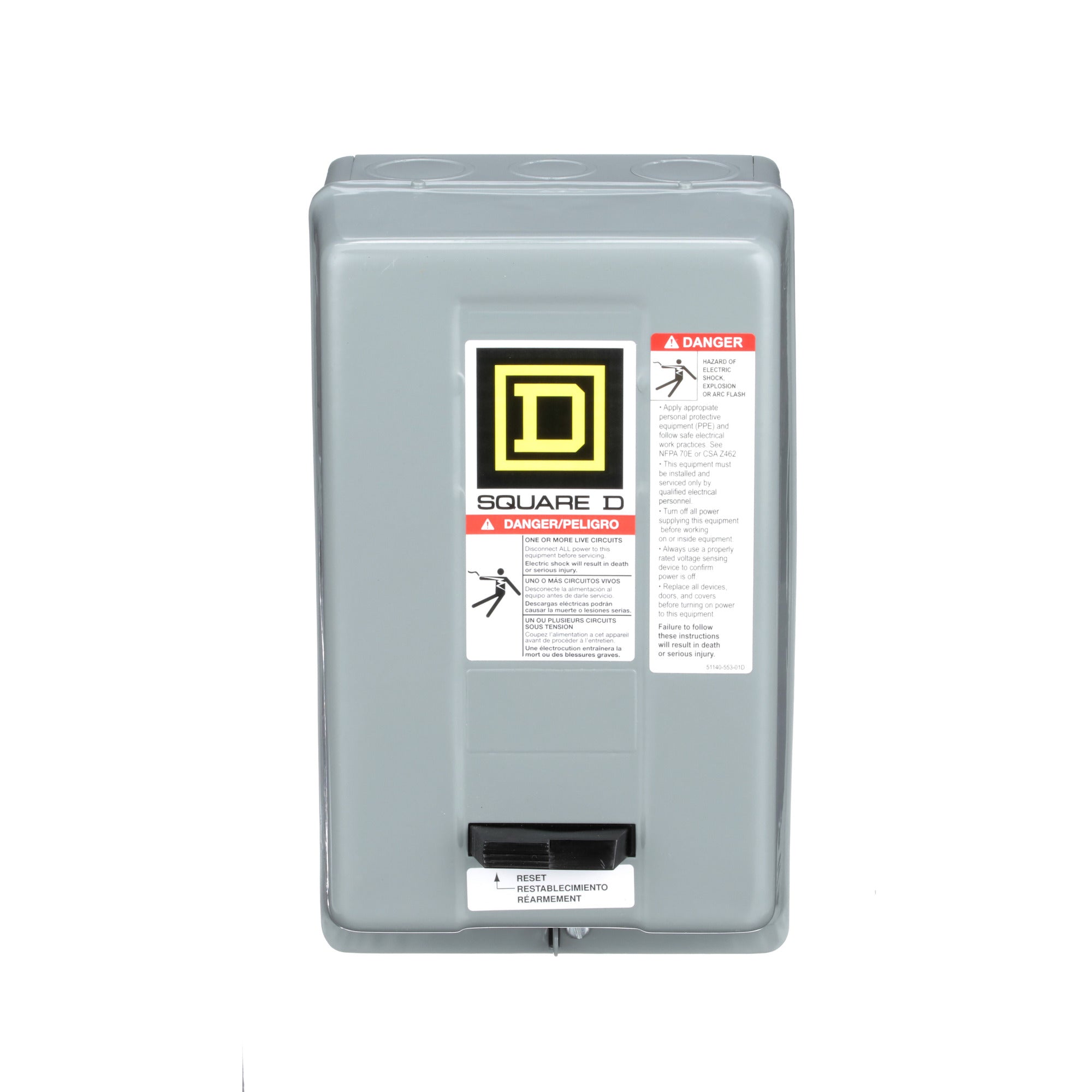

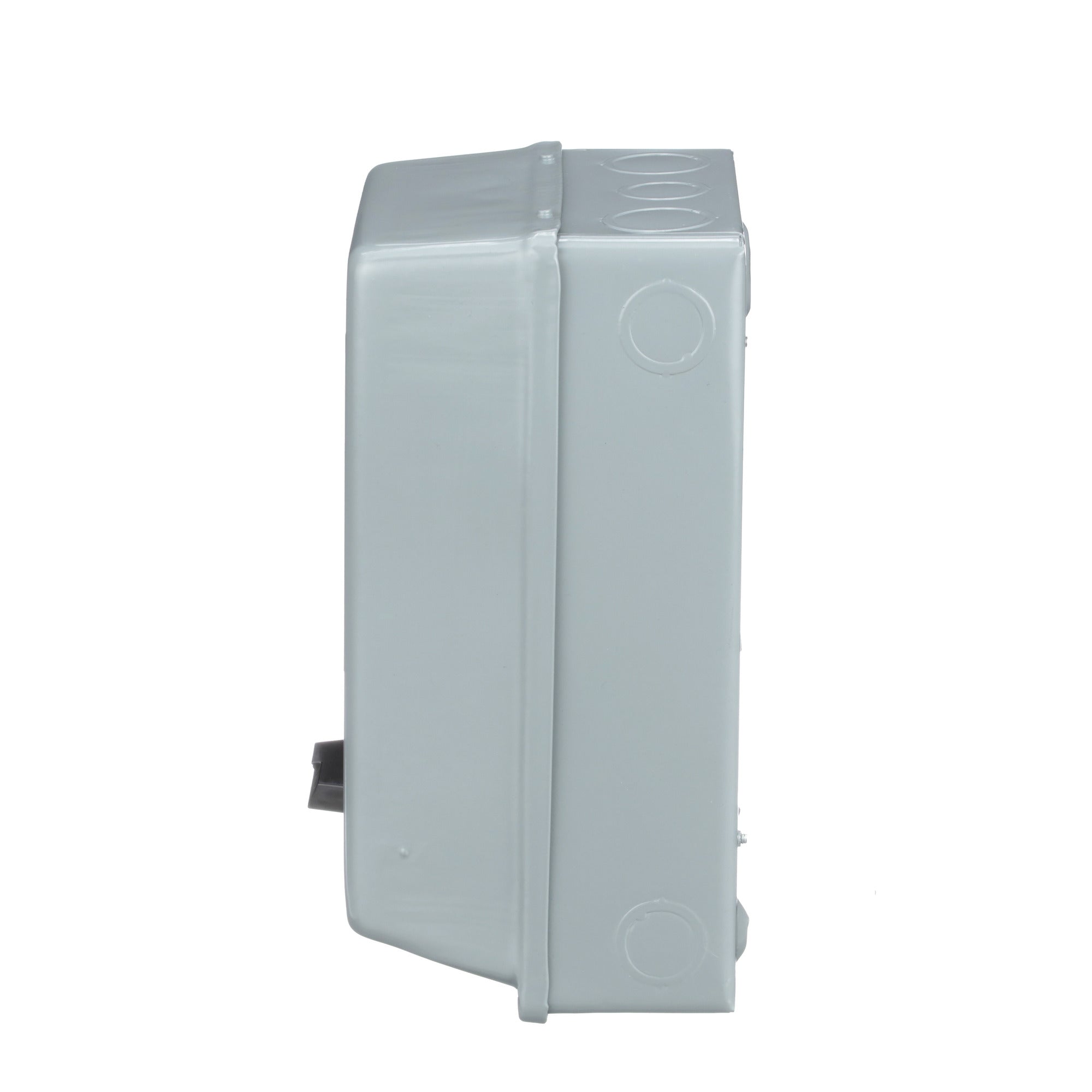

SCHNEIDER ELECTRIC Square D 8536SAG12V08 Motor Starter 9A 3Pole 3Phase 208VAC Coil NEMA-1

Square D 8536SAG12V08 Motor Starter 9A 3Pole 3Phase 208VAC Coil NEMA-1

Name: Square D 8536SAG12V08 Motor Starter 9A 3Pole 3Phase 208VAC Coil NEMA-1
Brand: SCHNEIDER ELECTRIC
SKU: 8536SAG12V08
Price: 501.57 USD
Availability: InStock

Brand: SCHNEIDER ELECTRIC

SKU: 8536SAG12V08

Availability: In Stock

Ships same day if ordered by 12 pm

Quantity:

$501.57; $501.57
Unit price: per

Manuals:

Manual

HAVE A QUESTION?

Our team is ready to help!

215-326-9845

Chat

Secure Payments
Easy Returns
Expert Advice
Fast Shipping

Description

Product Description

The Square D 8536SAG12V08 Type-S Non-Reversing Motor Starter is designed for optimal control and efficiency. This 3-phase, 3-pole starter is rated at 9A and operates with a 208VAC coil, ideal for full voltage starting and stopping of AC squirrel cage motors.

3-phase 208VAC control for reliable operation
Durable NEMA 1 painted sheet steel enclosure
Includes melting alloy type overload relay

Product Highlights

Delivers 1.5 HP at 220 and 230 VAC and 2 HP at 460 and 575 VAC. Features a 5 kA maximum SCCR and replaceable coils for flexible use.

Product Information

Standard Information

NEMA Size: 00
Coil Voltage: 208 VAC at 60 Hz

Technical Specifications

Height

10 inches

Width

6 inches

Depth

5.56 inches

Enclosure Type

NEMA 1 Painted Sheet Steel

Country of Origin

Mexico

Certifications

CSA, NEMA, UL Listed
