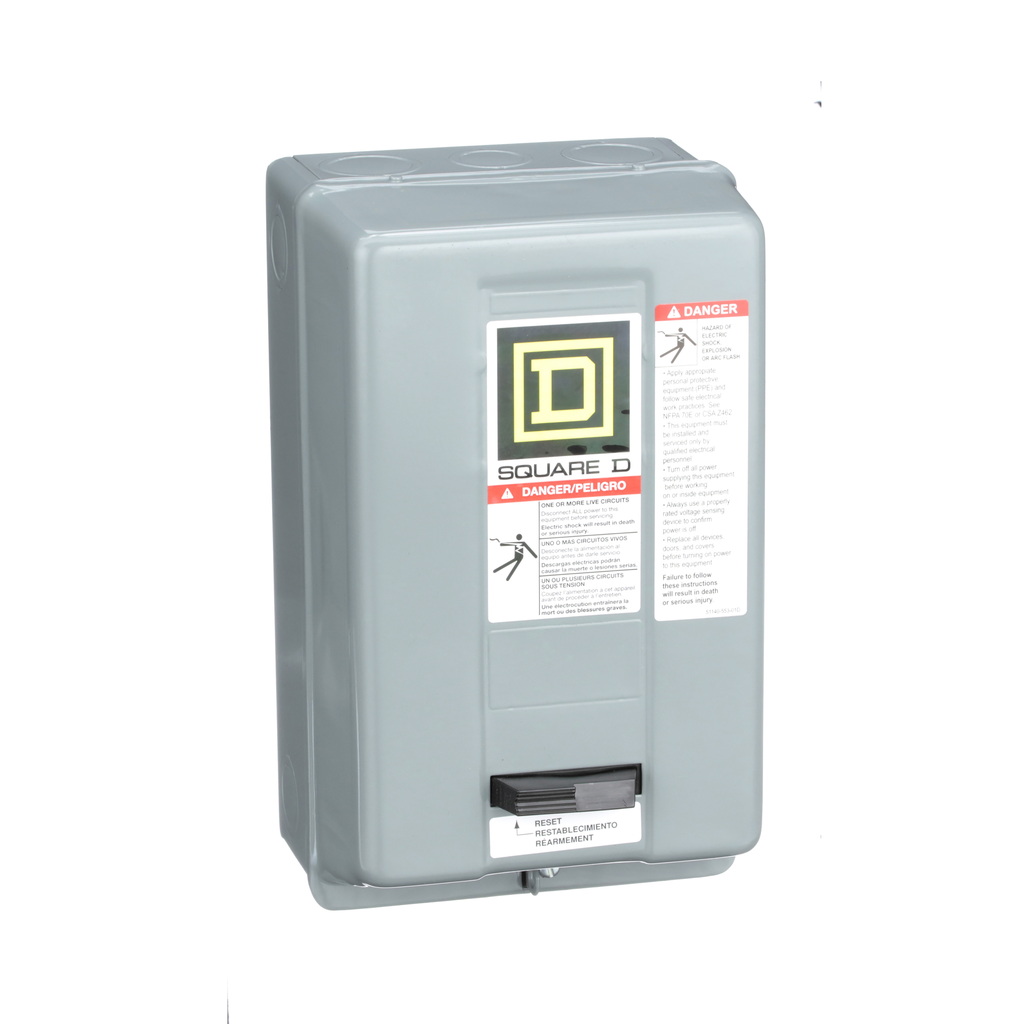

Square D 8536SAG12V03 Motor Starter NEMA Size 00 9A 3 Pole 3 Phase 240VAC Coil

Product Description

The Square D 8536SAG12V03 Motor Starter provides efficient full-voltage starting and stopping for AC squirrel cage motors. Engineered by Schneider Electric, this NEMA Size 00 starter is ideal for applications requiring reliable performance.

• 9 amp rating with 3 phase, 3 pole configuration.
• Equipped with a melting alloy thermal overload relay.
• 240VAC coil with common control wired operation.

Product Highlights

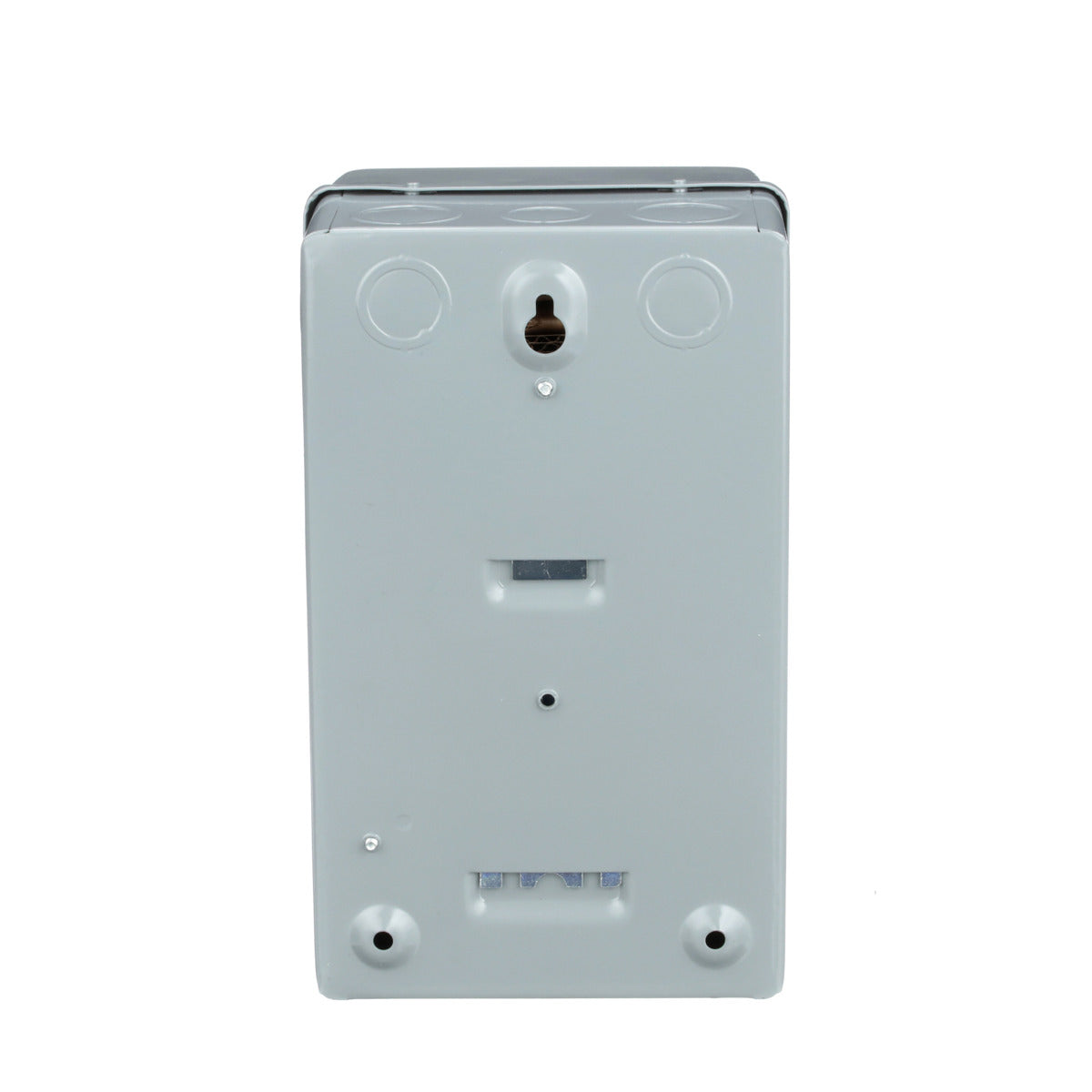

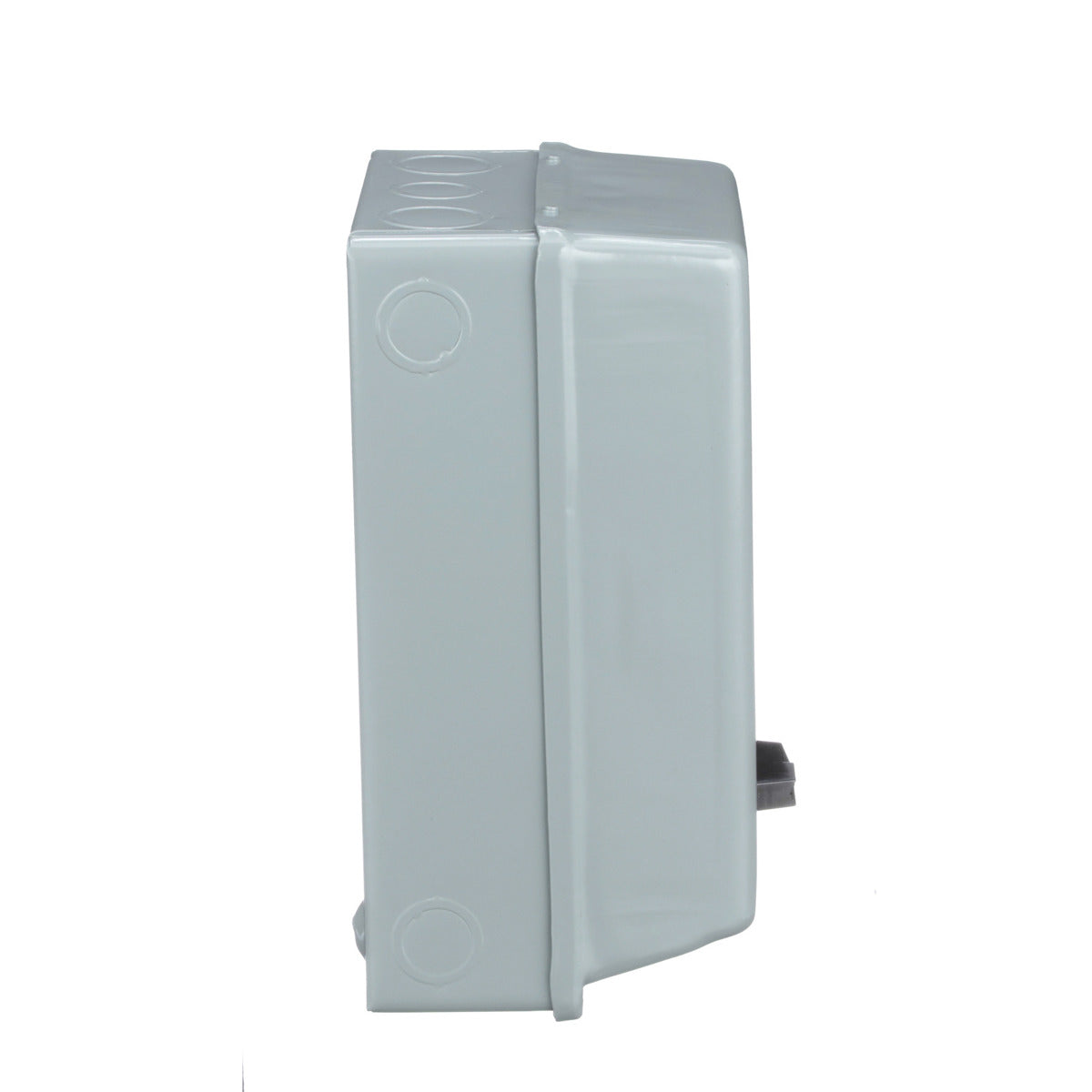

This non-reversing motor starter is housed in a robust painted steel NEMA 1 enclosure, measuring six inches wide and ten inches tall. It offers a maximum short circuit current rating of 5 kA when protected adequately. Operators benefit from its simple setup and dependable protection features.

Product Information

Standard Information

• Brand: Square D by Schneider Electric
• UPC: 785901743491

Technical Specifications

• Type: Non-reversing motor starter
• Size: NEMA 00
• Phase/Pole: 3 Phase, 3 Pole
• Current: 9 Amp
• Voltage: 240 VAC
• Dimensions: 10.00 inches height x 6.00 inches width x 5.56 inches depth
• Certifications: UL Listed, CSA Certified
