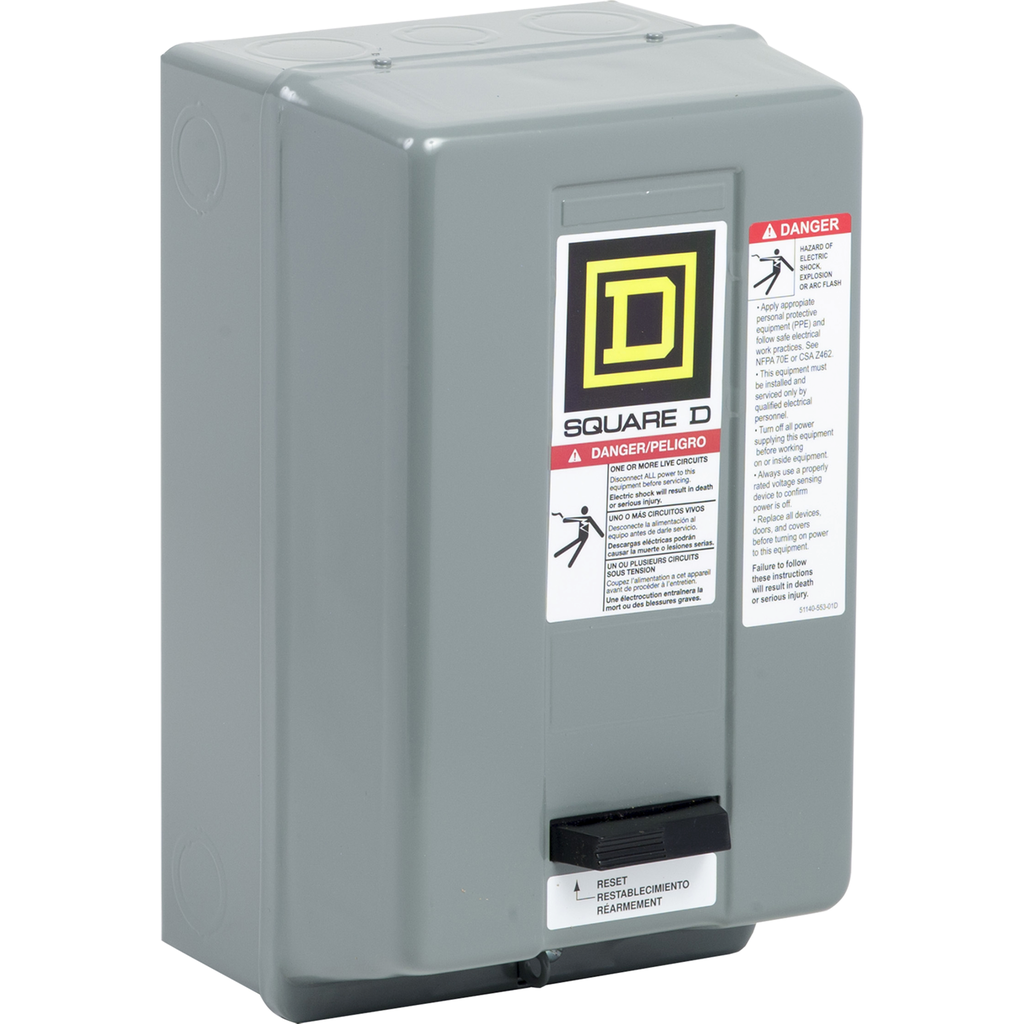

Square D 8536SAG11V01S 24 VAC 9 Amp 1 Hp 2-Pole NEMA 1 Full Voltage Non-Reversing Magnetic Starter

Product Description

The Square D 8536SAG11V01S is a 24 VAC non-reversing magnetic starter rated for nine amperes and suitable for operating one horsepower AC motors. This device works effectively for full voltage starting and stopping of AC squirrel cage motors. It features a melting alloy overload relay with the ability to sense overcurrent conditions. The NEMA Size 00 starter is designed for easy mounting and comes with a painted sheet steel NEMA 1 enclosure to protect from environmental factors.

• 24 VAC coil, designed for separate control circuit.
• UL listed and CSA certified for safety.
• Enclosure dimensions: ten inches tall, six inches wide, and five point five six inches deep.

Product Highlights

This motor starter provides reliable performance in controlling AC motors, ensuring efficient operation in various industrial applications.

Product Information

Standard Information

• Brand: Square D
• Product ID: 620670

Technical Specifications

• Type: Non-Reversing Starter
• Current Rating: 9 Amp
• Voltage: 24 VAC
• Number of Poles: 2
• NEMA Size: 00
• Rated Horsepower: 0.33 HP at 115 VAC, 1 HP at 230 VAC
• Enclosure Type: NEMA 1
• Country of Origin: Mexico
• Warranty: 18 months
