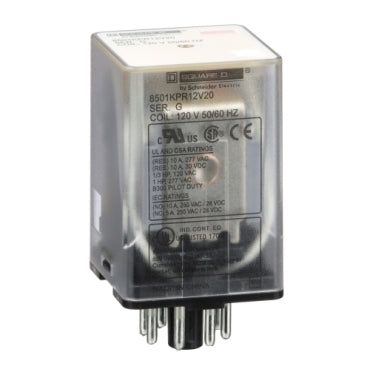

Square D 8501KPR12V20 General Purpose Relay 120 VAC 10 Amp DPDT

Product Description

The Square D 8501KPR12V20 General Purpose Relay is a robust device designed for multipole switching applications, ideal for use in both commercial and industrial settings. Engineered by Schneider Electric, it offers reliable performance with a coil voltage of 120 VAC and a current rating of 10 amps in a DPDT configuration. Suitable for socket mounting, it ensures a straightforward replacement process with its plug-in design.

• Engineered for multipole switching at voltages up to 300 VAC.
• Features a DPDT contact arrangement with two normally open and two normally closed contacts.
• Compatible with 8501NR52 and 8501NR51 sockets for easy maintenance and installation.

Product Highlights

This relay is constructed to work efficiently under industrial standards, including CE, CSA, and UL listings for safety and quality assurance. Its build includes silver alloy contacts that ensure long-lasting durability and performance under varying electrical loads. Additionally, despite its robust functionality, the relay does not feature a green LED indicator.

Product Information

Standard Information

• Brand: Square D
• Type: General Purpose Relay

Technical Specifications

• Coil Voltage: 120 VAC
• Contact Configuration: DPDT
• Current Rating: 10 A at 277 VAC, 10 A at 28 VDC
• HP Ratings: 1/3 HP at 120 VAC, 1 HP at 277 VAC
• Inductive Rating: B300
• Mounting Type: Socket
• Certifications: UL Listed, UL Recognized, CSA Certified
