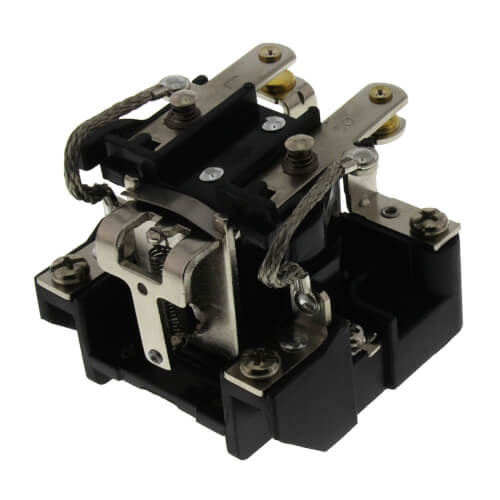

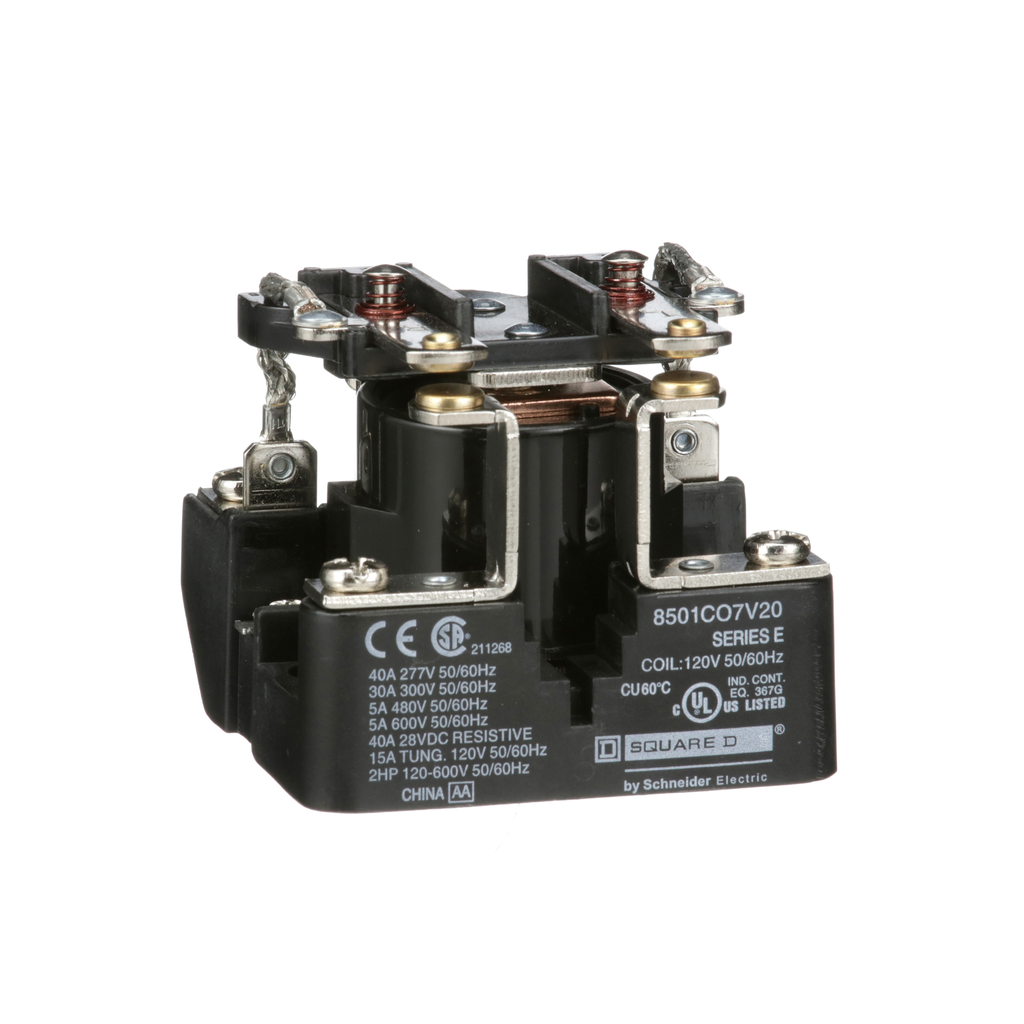

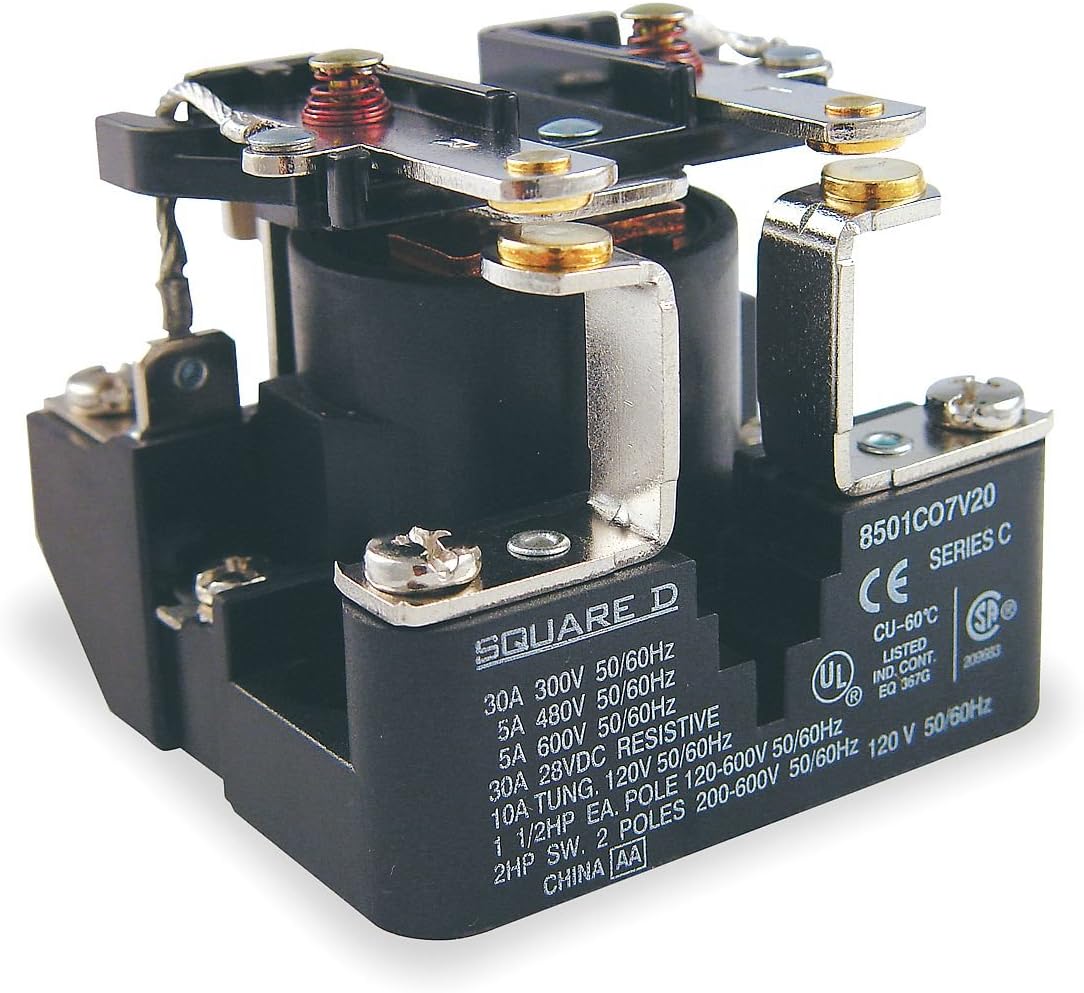

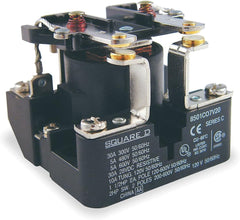

Square D 8501CO7V20 Power Relay 120V 30A DPST Panel Mount AC

Product Description

The Square D 8501CO7V20 Power Relay is designed for reliable control of small single-phase motors and light loads. The relay is ideal for managing power distribution and load switching, particularly in industrial settings. It operates at 120 volts AC and supports a current rating of 30 amps.

• Handles up to 30 amps at 120 volts AC
• Durable open frame construction
• Ideal for industrial applications like electric heaters, pumps, and conveyors

Product Highlights

The Square D 8501CO7V20 features heavy-duty contacts for single-phase motor control and other light loads. It offers a DPST contact configuration with two normally open contacts.

Product Information

Standard Information

• Brand: Square D
• MPN: 8501CO7V20

Technical Specifications

• Coil Voltage: 120V AC
• Contact Type: DPST
• Current Rating: 30 Amps
• Dimensions: 2.25 inches Depth, 2.5 inches Width, 2.49 inches Height
• Operation Mode: Automatic
• Certifications: CSA, CE, UL
• Mounting Style: Panel
• Applications: Controlling small single-phase motors, electric heaters, pumps, and conveyors
