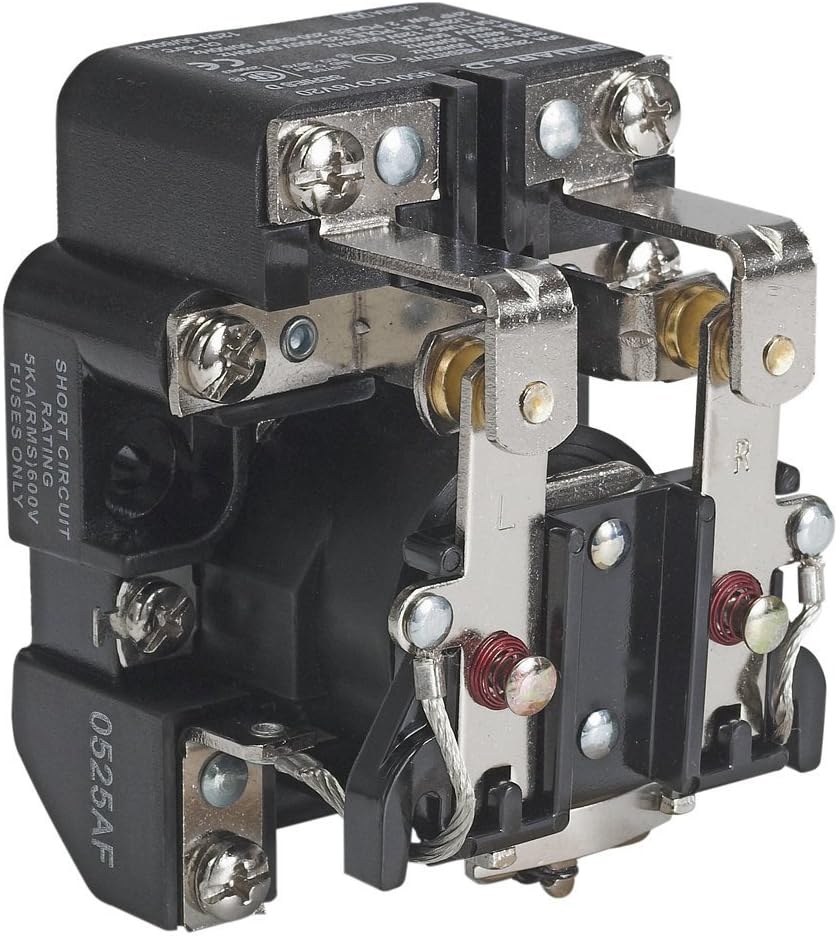

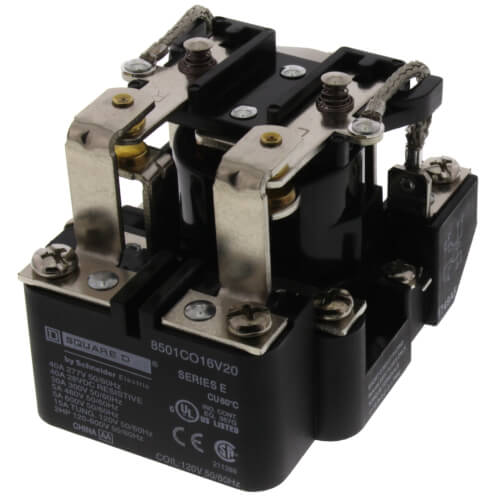

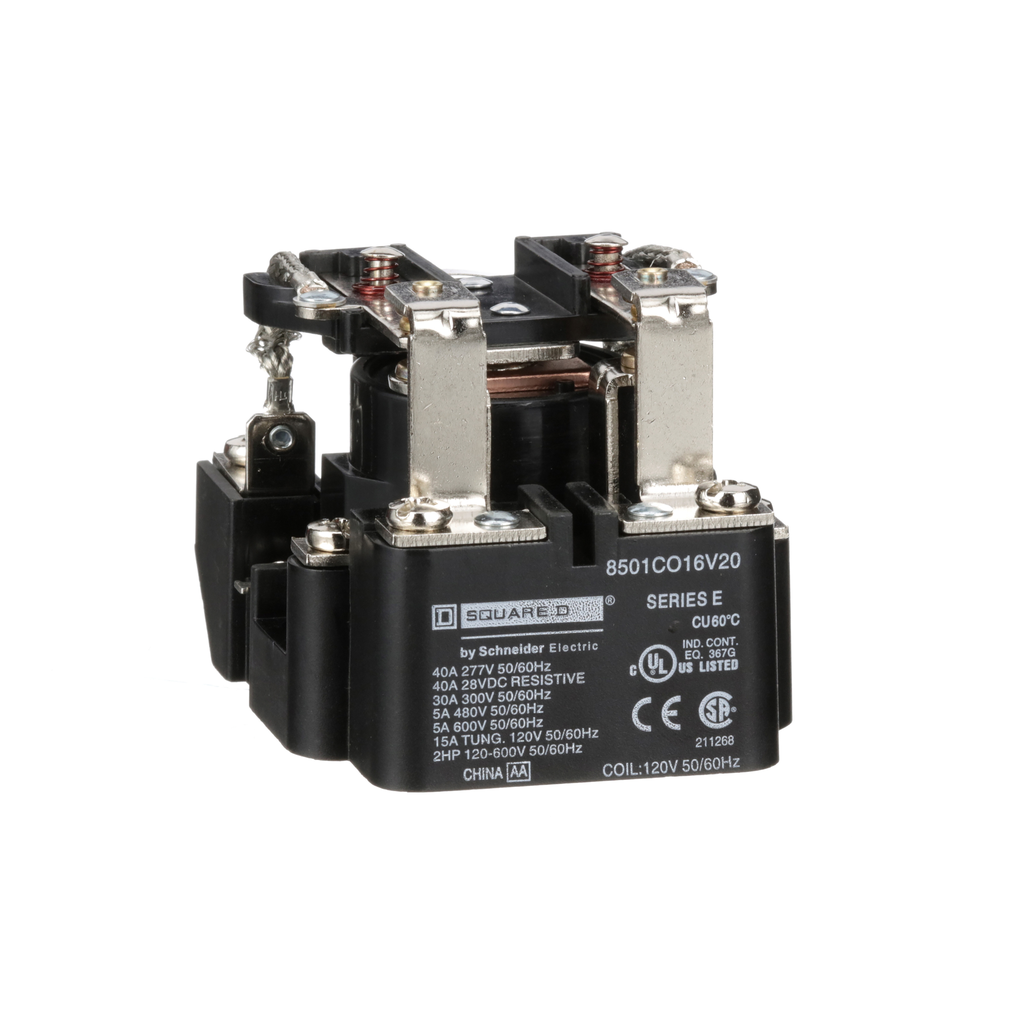

Schneider Electric 8501CO16V20 Relay 600 VAC 5 Amp Type C Plus Options, Black

Product Description

The Schneider Electric 8501CO16V20 Relay is a reliable solution for controlling small single-phase motors and other light loads. Designed with a DPDT contact configuration, this relay features two normally open and two normally closed contacts. It operates at 600 VAC and supports a 5 Amp current load.

• Durable open frame construction
• 30 A resistive rating at 300 VAC or 5 A at 600 VAC
• 120 VAC non-replaceable coil

Product Highlights

This relay is designed for applications such as electric heaters, pumps, conveyors, and material handling. It ensures reliable operation under various conditions and meets UL and CSA certification standards.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 8501CO16V20
• Certifications: CE, CSA, UL Listed
• Country of Origin: China
• Warranty: 18 months

Technical Specifications

• Amperage: 30 A
• Voltage: 600 VAC
• Coil Voltage: 120 VAC
• Contact Configuration: 2 NO/2 NC
• Operating Temperature: -22 to 122 degrees F
• Width: 2.5 inches
• Depth: 2.31 inches
• Height: 3.12 inches
