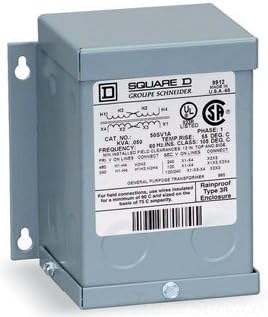

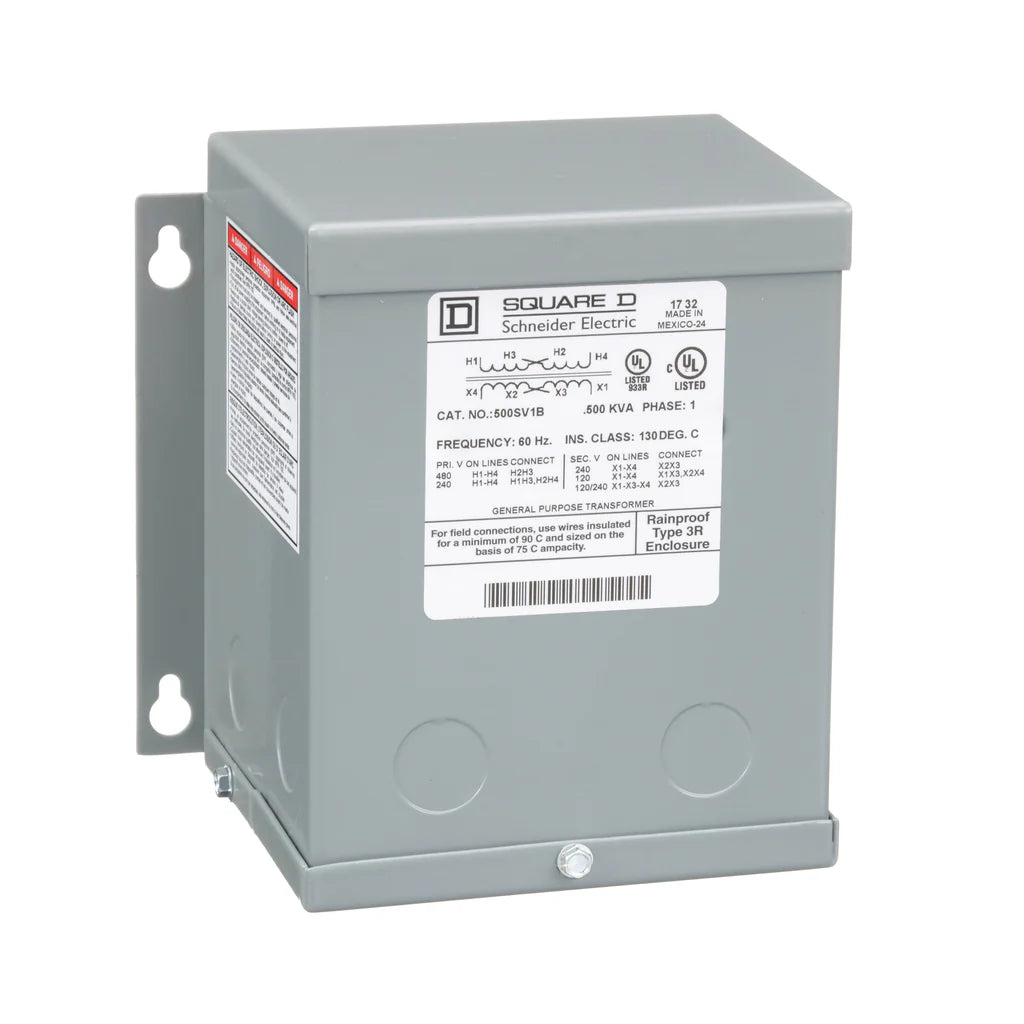

Schneider Electric 500SV1B Xfmr Dry 1Ph .5Kva 240X480-Volt-120/240-Volt

Product Description

The Schneider Electric 500SV1B Transformer is designed to meet power distribution and isolation needs in industrial and commercial applications. With 240 x 480V input and 120/240V output, it ensures reliable performance for various electrical systems.

• Durable epoxy encapsulated construction
• Compact and wall-mounted
• NEMA 3R rated for indoor and outdoor use

Product Highlights

This resin-encapsulated transformer offers efficient energy transfer and stability in challenging environments. Its core-and-coil assembly is embedded in an epoxy resin compound, providing maximum protection against contaminants.

Product Information

Standard Information

• Brand: Schneider Electric (Square D)
• MPN: 500SV1B

Technical Specifications

• Item: Single Phase Transformer
• Primary Voltage: 240 x 480 V
• Secondary Voltage: 120/240 V
• Rated Power: 0.5 kVA
• Enclosure: Painted sheet steel; NEMA 3R
• Dimensions: 5.5 inches (H) x 6.19 inches (W) x 4.69 inches (D)
• Mounting: Wall
• Frequency: 60 Hz
• Enclosure Material: Steel
• Enclosure Rating: NEMA 3R
• IP Rating: 54
• Winding Material: Copper
• Outdoor Rated: Yes
• Temperature Rating: 80 degrees C
• Certifications: CSA, cULus, UL Listed
• Country of Origin: Mexico
