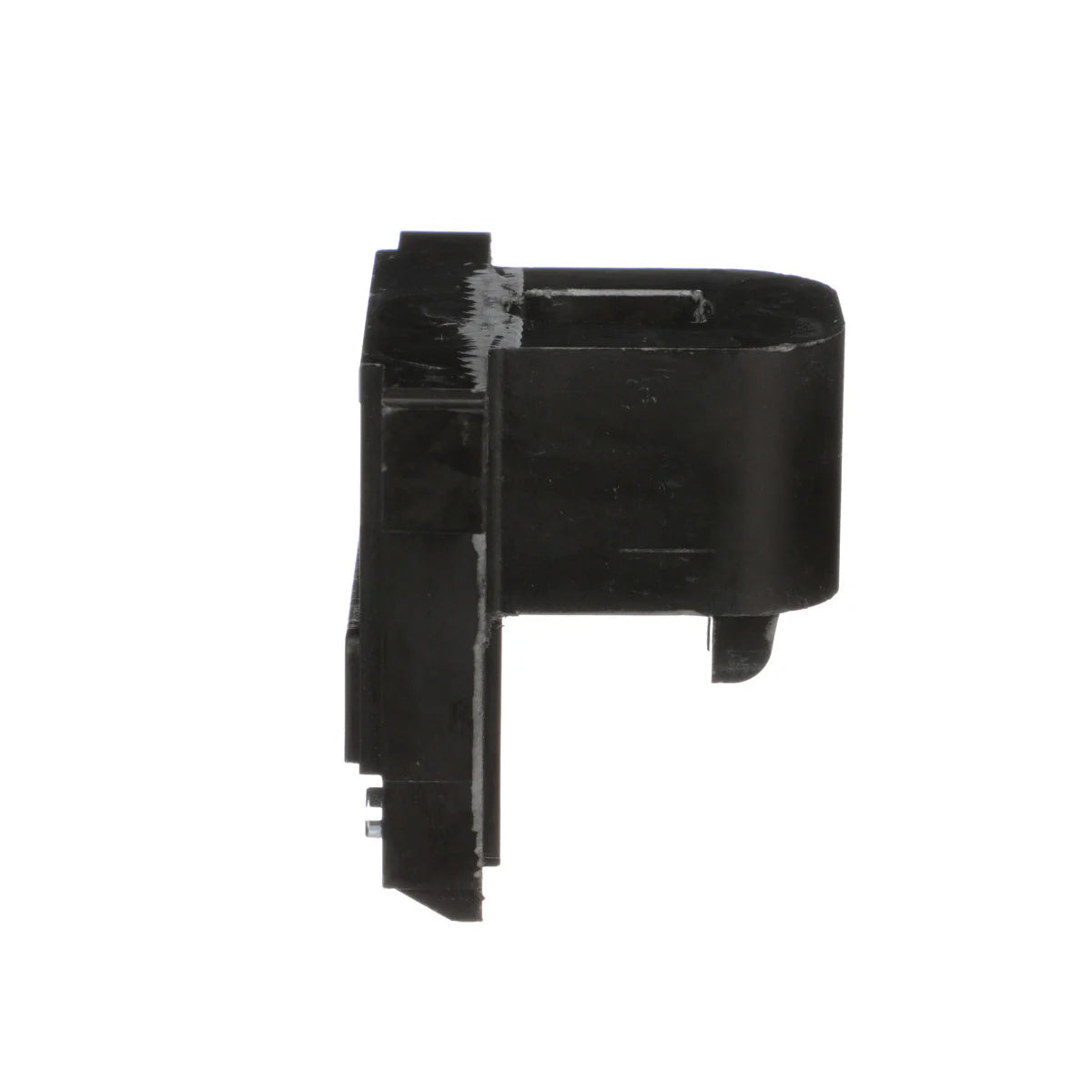

Square D 3104140051 Magnetic Contactor Starter Coil 220/240 VAC 30 Amp 50/60 Hz

Product Description

The Square D 3104140051 Magnetic Contactor Starter Coil is designed for versatility and reliability in different control circuit voltage applications. It can be easily replaced in Type S contactors or starters, offering a cost-effective solution by eliminating the need for a new contactor or starter in case of coil failure. This coil is suitable for use in 8502SA, 8502SB, 8502SC contactors, and 8536SA, 8536SB, 8536SC starters, as well as 8903SM lighting contactors.

• Rated for 220/240 VAC, 50/60 Hz
• Inrush power of 245 VA
• Averages 27 VA in sealed consumption

Product Highlights

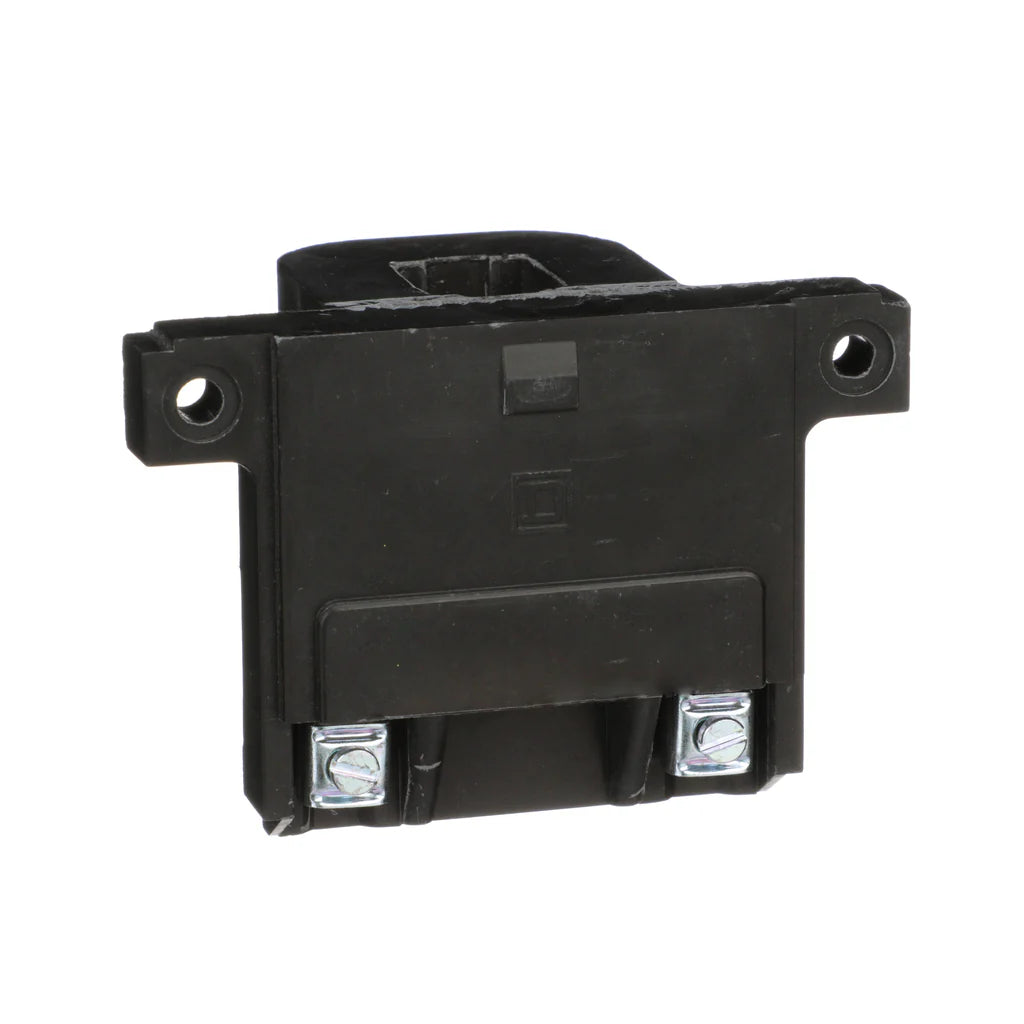

This coil is fully encapsulated to protect it from environmental factors and features screw clamp connections for easy installation.

Product Information

Standard Information

• Catalog Number: 3104140051
• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• GTIN: 00785901417170
• UPC: 785901417170
• Type: Coil
• Voltage: 220/240 VAC
• Power Consumption: 245 VA (inrush), 27 VA (sealed)
• Connections: Screw Clamp
• Dimensions: 54.7 mm height, 81.5 mm width, 48.3 mm depth
• Operating Temperature: 40°C Ambient
• Country of Origin: Mexico
• NEMA Size: 00, 0, 1
