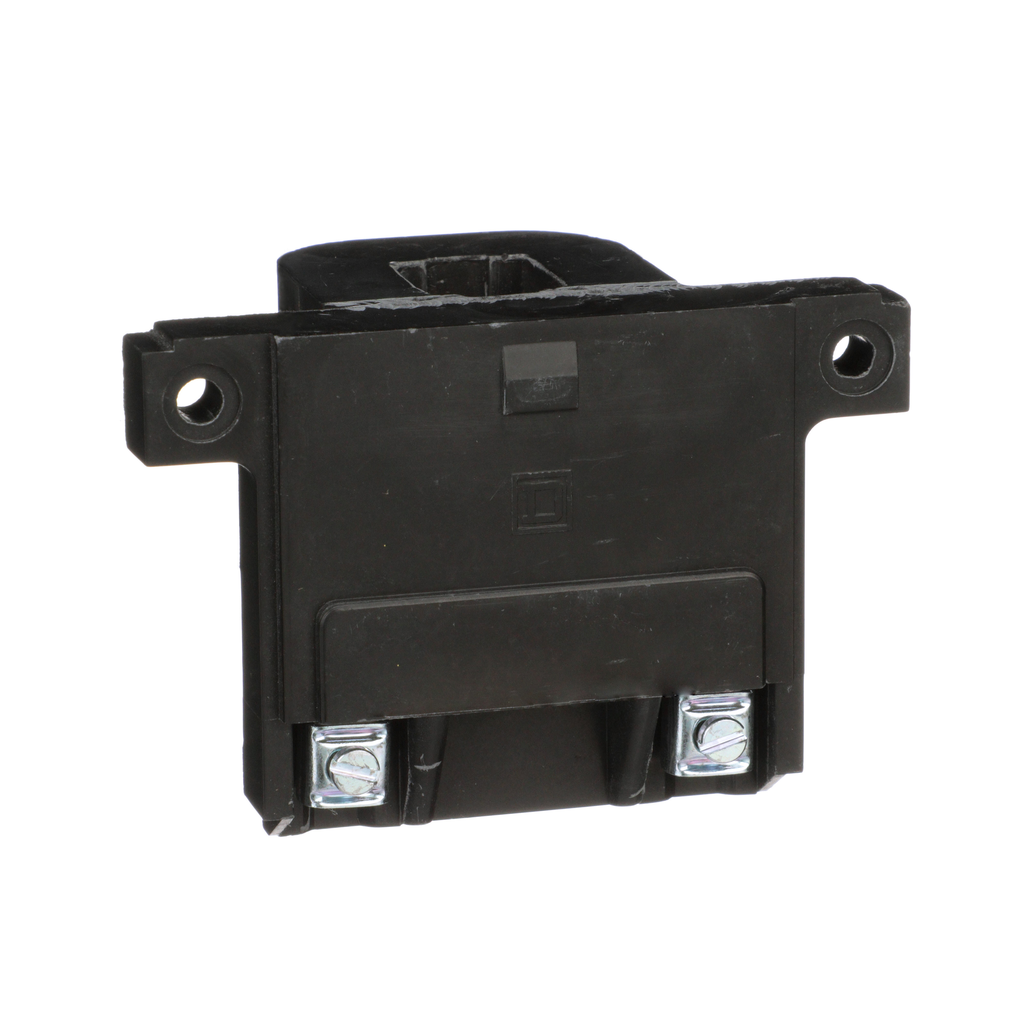

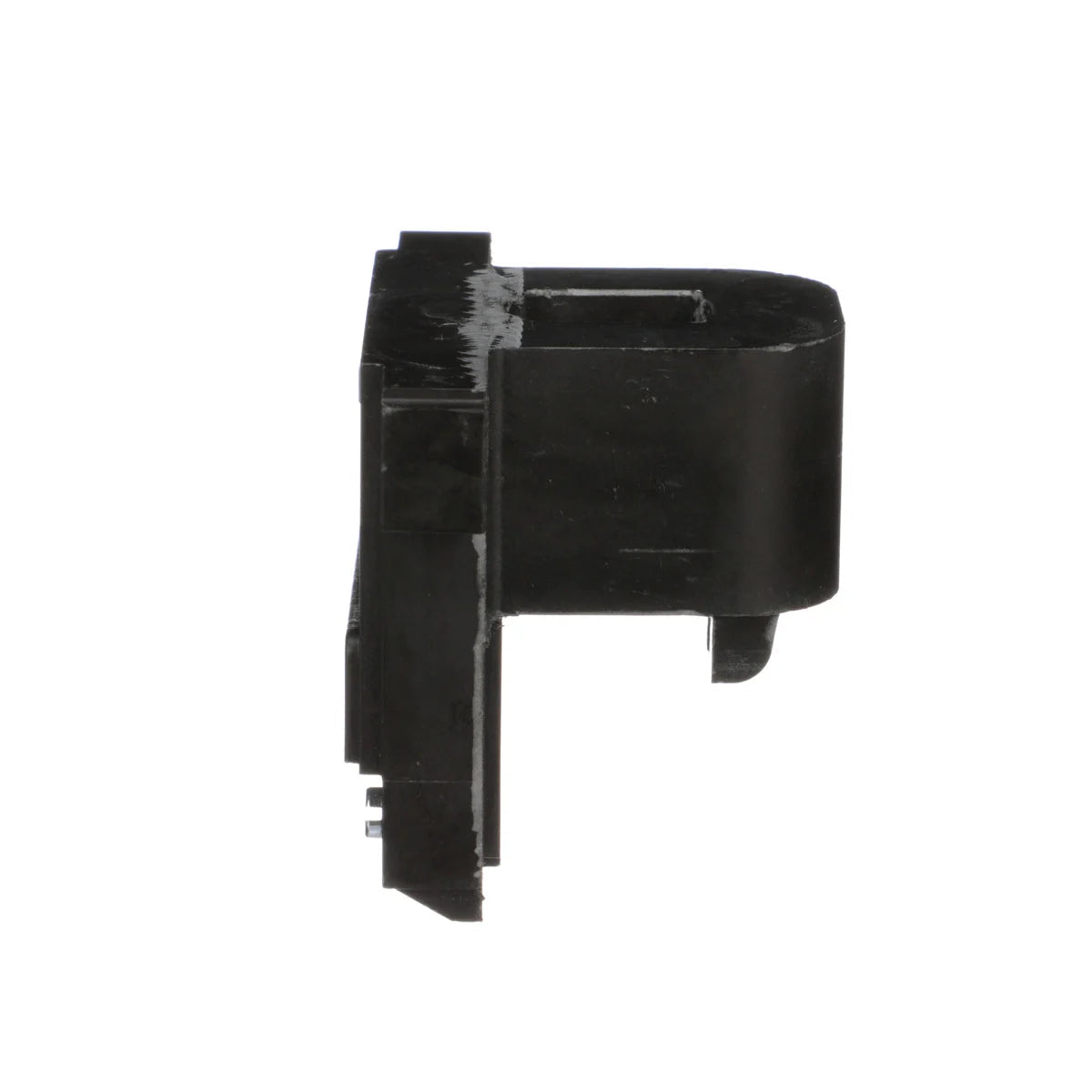

Square D 3104140048 Coil, Magnetic, 208vac

Product Description

The Square D coil, MPN 3104140048, is designed for use in industrial applications where controlled voltage is critical. Rated for two hundred eight volts alternating current (VAC) and sixty hertz (Hz), this magnetic coil operates efficiently within various control circuit setups. Users can replace this coil in Type S contactors or starters to adapt to different voltage applications without replacing the entire unit.

• Compatible with 8502SA, 8502SB, 8502SC, 8536SA, 8536SB, 8536SC contactors.
• Low inrush power consumption of two hundred forty-five volt-amperes (VA).
• Sealed power consumption of twenty-seven VA, enhancing durability.

Product Highlights

This coil ensures reliable operation in heavy-duty applications with excellent power management capabilities.

Product Information

Standard Information

• Brand: Square D
• MPN: 3104140048

Technical Specifications

• Voltage: 208 VAC
• Frequency: 60 Hz
• Inrush Power: 245 VA
• Sealed Consumption: 27 VA
• Height: 54.7 mm
• Width: 81.5 mm
• Depth: 48.3 mm
• Country of Origin: Mexico
