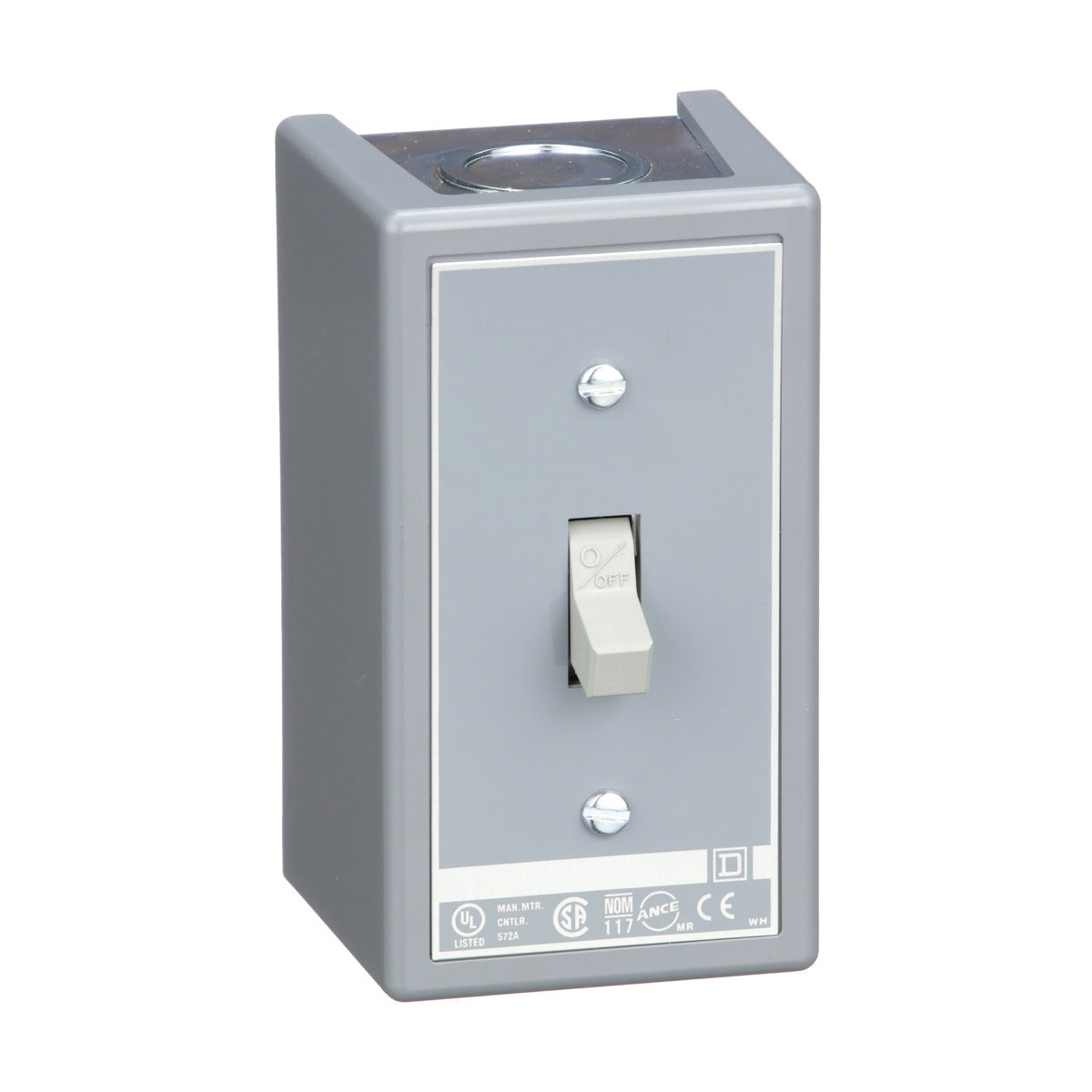

Square D 2510KG1 Manual Motor Switch 30A 2-Pole NEMA 1

Product Description

The Square D 2510KG1 Manual Motor Switch provides reliable control for a variety of industrial, commercial, and residential applications. Designed by Schneider Electric, this switch is ideal where overload protection is either not required or supplied separately. It operates with a toggle mechanism and supports a maximum operational voltage of 600 VAC and 250 VDC. This two-pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, 3 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC, and 1.5 HP at 230 VDC.

• Toggle-operated manual motor switch
• NEMA 1 general-purpose enclosure
• Screw clamp terminals suitable for 14 to 10 AWG copper wire

Product Highlights

This motor switch is ideal for providing manual on/off control of single or three-phase AC motors. Its robust construction ensures durability and reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Warranty: 18 months

Technical Specifications

• Catalog Number: 2510KG1
• Current: 30 Amps AC
• Voltage: 600 Volts AC / 230 Volts DC
• Phase: 1 Phase
• Number of Poles: 2 Poles
• Horsepower Ratings: 2 HP at 115 VAC, 2 HP at 230 VAC, 3 HP at 460 VAC, 3 HP at 600 VAC, 1 HP at 90 VDC, 2 HP at 115 VDC, and 1.5 HP at 230 VDC
• Enclosure: NEMA 1
• Height: 4.25 inches
• Width: 2.44 inches
• Depth: 2.75 inches
• Weight: 0.84 lbs
• Certifications: UL, CSA
• Cable Entry: 0.5 and 0.75 knock-outs (top and bottom)
• Electrical Connection: Screw clamp terminals
