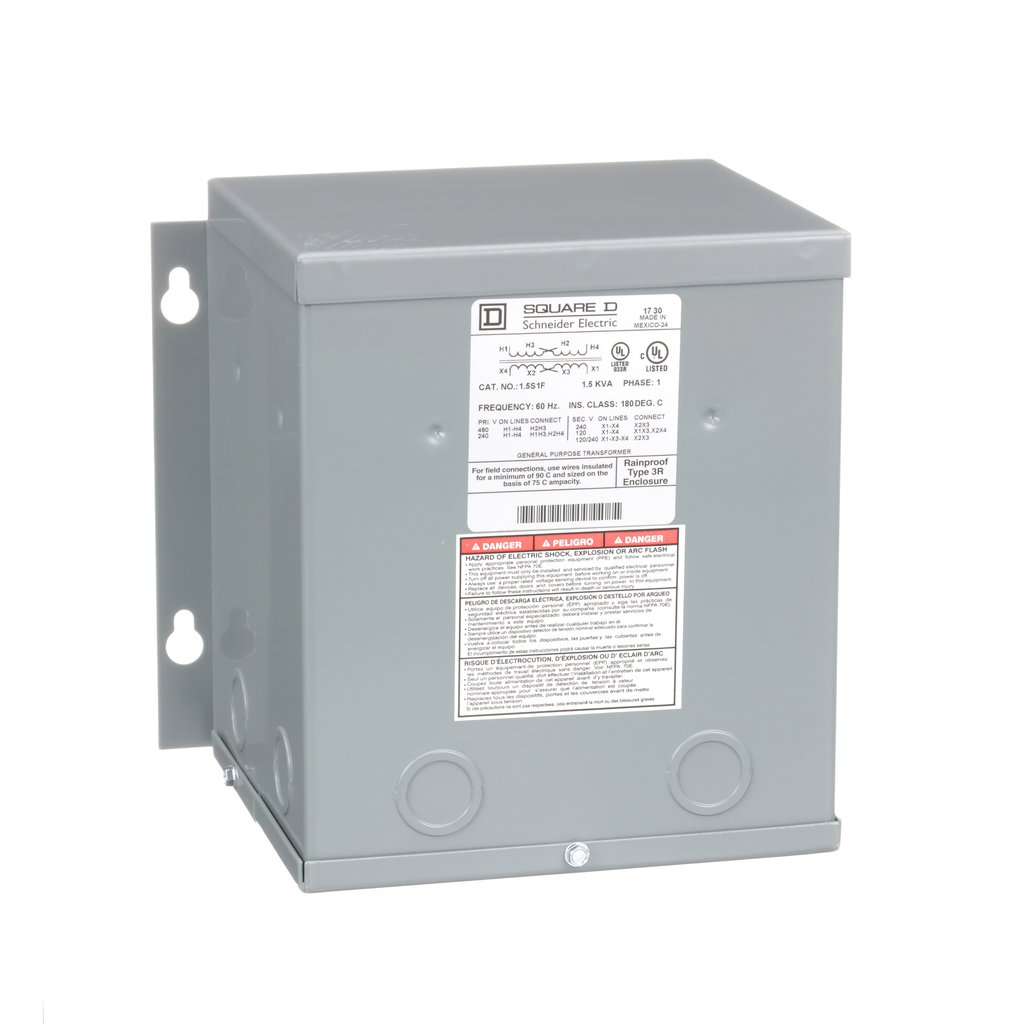

Square D 1.5S1F Dry Sealed Transformer 1.5 kVA 240 x 480 VAC Primary 120/240 VAC Secondary

Product Description

The Square D 1.5S1F is a dry sealed transformer with a power rating of 1.5 kVA. This transformer is designed for applications with a primary voltage of two hundred forty by four hundred eighty VAC and a secondary voltage of one hundred twenty by two hundred forty VAC. The unit features a resin encapsulated core-and-coil assembly for protection against airborne particles.

• Durable NEMA 3R rated enclosure for indoor and outdoor use
• Compact dimensions: eight point twenty-five inches high, eight point sixty-eight inches wide, and six point fifty-six inches deep
• Meets UL and CSA standards for safety and reliability

Product Highlights

This transformer is ideal for heating, lighting, and power distribution applications. It supports wall mounting and is constructed from painted sheet steel for durability.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 1.5S1F
• Type: Dry Sealed Transformer
• Primary Voltage: 240 x 480 V
• Secondary Voltage: 120/240 V
• Rated Power: 1.5 kVA
• Enclosure: Painted sheet steel
• Height: 8.25 inches
• Width: 8.68 inches
• Depth: 6.56 inches
• Weight: 30.1 lb
• Phase: 1
• Country of Origin: Mexico
• Temperature Rating: 115 degrees C
