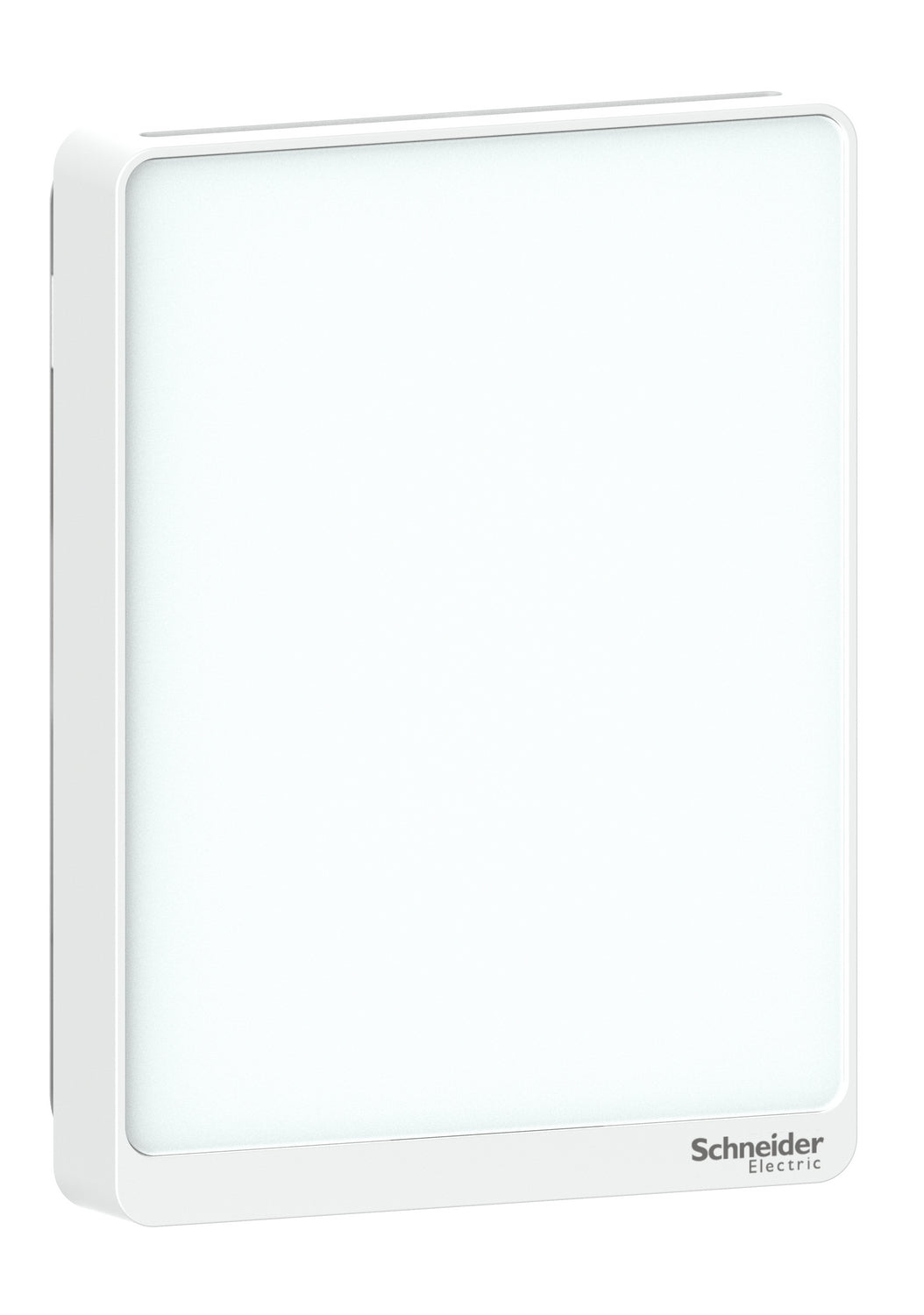

Schneider Electric SLAWXCV2 SpaceLogic Room Unit

Product Description

Schneider Electric SLAWXCV2 is a wall-mounted sensor that monitors air quality in indoor spaces. It measures carbon dioxide, volatile organic compounds, humidity, and temperature. This sensor is compatible with building automation systems. It offers various output options including 4 to 20 mA, 0 to 5 Vdc, and 0 to 10 Vdc. Housing is available in multiple colors including white and black. A variety of user interfaces are offered like touchscreens and LCD displays.

• Measures CO2, VOC, humidity, and temperature
• Compatible with building automation systems
• Available in multiple housing colors

Product Highlights

The SLAWXCV2 is designed for HVAC applications and provides precise monitoring of indoor air quality. It features a user-friendly interface and flexible output options suitable for various systems.

Product Information

Standard Information

• Product Type: sensor
• Mounting Mode: wall-mount

Technical Specifications

• Measurement Types: carbon dioxide (CO2), volatile organic compounds (VOC), humidity, temperature
• Ambient Air Temperature for Operation: 0-50 °C
• Output Type: analog
• Housing Material: ABS (acrylonitrile butadiene-styrene)
• Depth: 23.7 mm
• Height: 85 mm
• Width: 115 mm
• Humidity Setting Range: 0-100 %
• Temperature Setting Range: 10-35 °C, 0-50 °C
• Standards: FCC part 15 class B, UL 916
