Schneider Electric SEZ8250U5B00P SE8000 Series VAV Controller BACnet MS/TP

Product Description

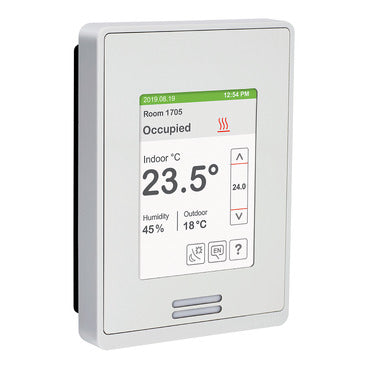

Schneider Electric SEZ8250U5B00P is a low-voltage microprocessor-based Variable Air Volume (VAV) controller. This unit supports both Pressure Dependent and Pressure Independent VAV systems. It comes with a touch screen interface for easy local configuration. The controller allows for accurate temperature control using a PI proportional-integral algorithm.

• Configurable for damper control in various VAV applications
• Integrated motion sensor and Zigbee Pro support
• Remote communication capabilities through BACnet, Zigbee, or Modbus

Product Highlights

This room controller integrates advanced features for efficient management of air volume and temperature in commercial and hospitality settings.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: SEZ8250U5B00P

Technical Specifications

• Dimensions: Height 12 cm, Width 8.6 cm, Depth 2.5 cm
• Net Weight: 0.34 kg
• Power Supply: Low voltage
• Temperature Sensor: 10 kOhm T2 NTC thermistor
• Humidity Measurement Drift: Less than 0.25 % yearly
• Display Type: LED-backlit LCD
• Languages Supported: 22 configurable
• Communication Ports: BACnet MS/TP, Modbus, Zigbee Pro
