Schneider Electric SER8350A5B00P SE8000 Series line-voltage fan coil room controller

Product Description

Schneider Electric SER8350A5B00P is a line-voltage fan coil room controller designed for efficient climate control. This controller uses BACnet MS/TP and ZigBee for communication and is equipped with a relative humidity sensor. It features IP readiness and a PIR motion sensor to enhance functionality and energy savings.

• Supports BACnet MS/TP and ZigBee communication protocols
• Integrated RH sensor for accurate humidity control
• PIR motion sensor for increased energy efficiency

Product Highlights

This versatile room controller is built for line voltage fan coil applications, making it ideal for various environments including residential and commercial buildings. Its robust design ensures reliable performance under a wide range of operating conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Model Number: SER8350A5B00P

Technical Specifications

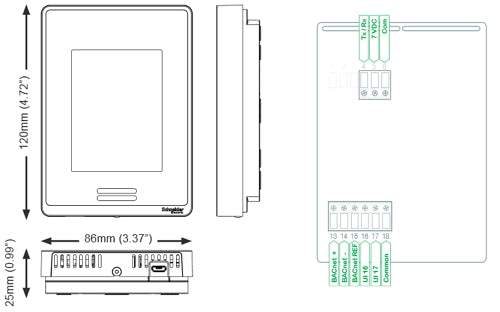

• Dimensions: Height 120 mm, Width 86 mm, Depth 25 mm
• Weight: Net weight 340 g
• Operating Temperature: 0-50 °C
• Humidity Range: 0-95 %
• Power Supply: Line voltage
• Communication Protocols: BACnet MS/TP, Modbus RTU, Zigbee Pro
• Sensor Type: Humidity sensor and 10 kOhm T2 NTC thermistor for temperature
• Installation Type: Surface mount
