Schneider Electric SER8350A5B00 SE8000 Series Line-Voltage Fan Coil Room Controller

Product Description

The Schneider Electric SER8350A5B00 is a line-voltage fan coil room controller designed for efficient climate control. This device incorporates BACnet MS/TP communication, a relative humidity sensor, and a Passive Infrared (PIR) motion sensor for optimal usage.

• Requires SC3000 relay pack to control fan coil unit
• Communication module (VCM8000V5045P) sold separately for Zigbee Pro integration
• Compatible with various HVAC systems and environments

Product Highlights

This controller is ideal for managing HVAC performance in residential, commercial, and healthcare settings.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: SER8350A5B00

Technical Specifications

• Device Application: line voltage fan coil
• Ambient Air Temperature for Operation: 0-50 °C
• Relative Humidity: 0-95 %

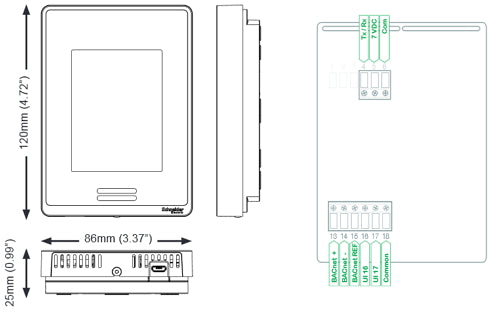

• Height: 120 mm
• Width: 86 mm
• Depth: 25 mm
• Housing Colour: silver
• Input Type: 2 x dry contact, 5 x analog
