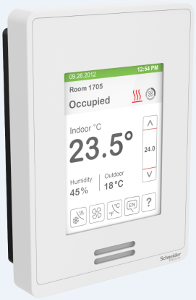

Schneider Electric SER8150R0B1194 Remote Controller for Panasonic VRF Systems

Product Description

The Schneider Electric SER8150R0B1194 is a remote controller designed for Panasonic VRF systems. This controller is suitable for commercial and hospitality applications and supports both BACnet and Modbus communication protocols.

• Remote controller for Panasonic VRF systems with R1R2 interface
• Customizable digital touch screen with multi-language options
• On-board humidity sensor with dehumidification control

Product Highlights

This controller allows for advanced occupancy functions and includes configurable options for Panasonic VRF equipment. Additionally, it provides integration capabilities with EcoStruxure Building Operation through direct wired MS/TP network connections.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: Mexico

Technical Specifications

• Dimensions: 4 cm height, 14 cm width, 10 cm length, 2.7 cm depth
• Weight: 0.34 kg (approximately 500 g)
• Operating Temperature: 0-50 °C
• Storage Temperature: -30-50 °C
• Humidity Range: 0-95 % RH, non-condensing
• Communication Protocols: BACnet, Modbus, Zigbee Pro
• Sensor Type: Humidity: bulk polymer, Temperature: 10 kOhm T2 NTC thermistor
