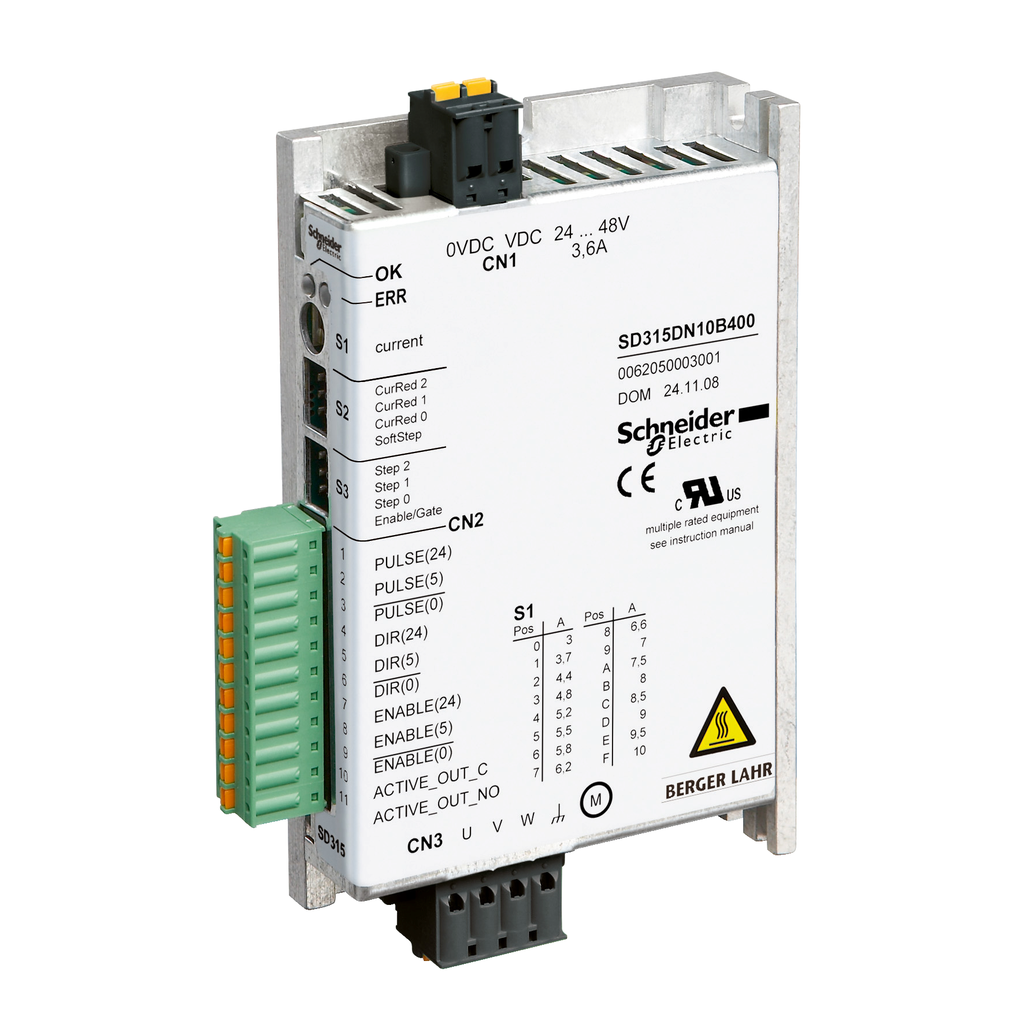

Schneider Electric SD315DN10B400 motion contro

Product Description

The Schneider Electric SD315DN10B400 is part of the Lexium SD3 range. It is a motion control stepper motor drive suitable for various industrial applications. This drive supports a supply voltage between twenty-four volts and forty-eight volts. The motor phase current is rated at ten amps.

• IP20 rated for protection against solid objects.
• Compact dimensions: width is seventy-four point five millimeters, depth is twenty-three point five millimeters, height is one hundred seventeen millimeters.
• Ready for operation quickly, suitable for multiple applications such as printing and food processing.

Product Highlights

This product features natural convection cooling and is certified by CE, CUL, and UL. It complies with several international standards, ensuring reliability in various environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Type: Motion stepper drive
• Voltage: 24 to 48 volts
• Amperage: 10 amps
• Enclosure Rating: IP20
• Weight: 0.25 kg
• Temperature Rating: 0-50 degrees C
• Country of Origin: Germany
• Warranty Length: 18 months
