Schneider Electric SCD210-D-H CO2 Transmitter Power Duct

Product Description

The Schneider Electric SCD210-D-H is a carbon dioxide transmitter designed for duct applications. This sensor offers relative humidity monitoring in addition to CO2 measurement, making it suitable for HVAC systems. The device features user-selectable outputs of zero to ten VDC, zero to five VDC, or four to twenty mA outputs.
Auto Baseline Calibration (ABC) enables automatic adjustments, ensuring accurate CO2 levels from zero to two thousand ppm with an accuracy of plus or minus two percent. The built-in relay can switch at various levels based on your settings, enhancing its functionality in different environments.
For humidity measurement, replacement tips are available which maintain precise readings. The SCD210-D-H operates in a temperature range from ten to thirty-five degrees Celsius, making it ideal for various indoor settings.

• User-selectable output options
• Auto-calibrating sensor with high accuracy
• Suitable for HVAC applications and duct installations

Product Highlights

Product Information

Standard Information

• Brand: Schneider Electric
• Device Application: Duct

Technical Specifications

• MPN: SCD210-D-H
• CO2 Measurement Range: 0 to 2000 ppm
• Temperature Measurement Accuracy: +/- 0.3 degrees Celsius
• Ambient Temperature for Operation: 10 to 35 degrees Celsius
• Humidity Measurement Range: 0 to 100% RH
• Relay Switching Levels: 800 ppm, 1000 ppm, 1200 ppm

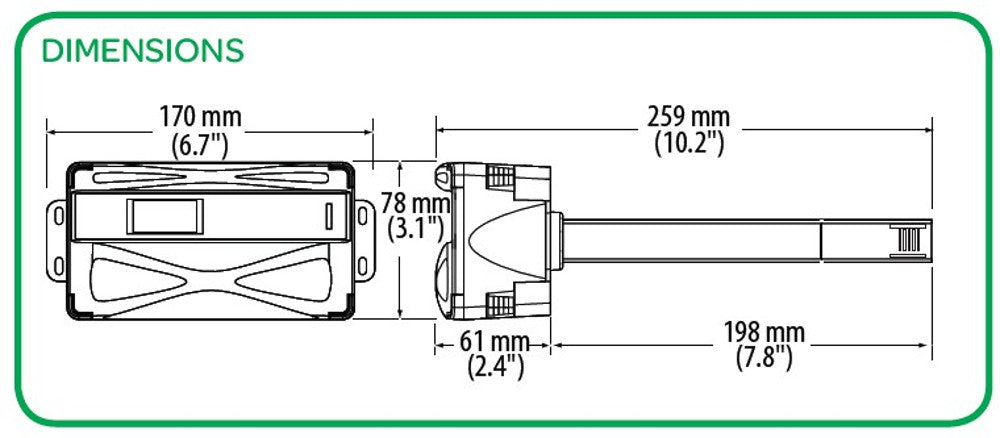

• Probe Length: 198 mm
• Display Type: LCD
