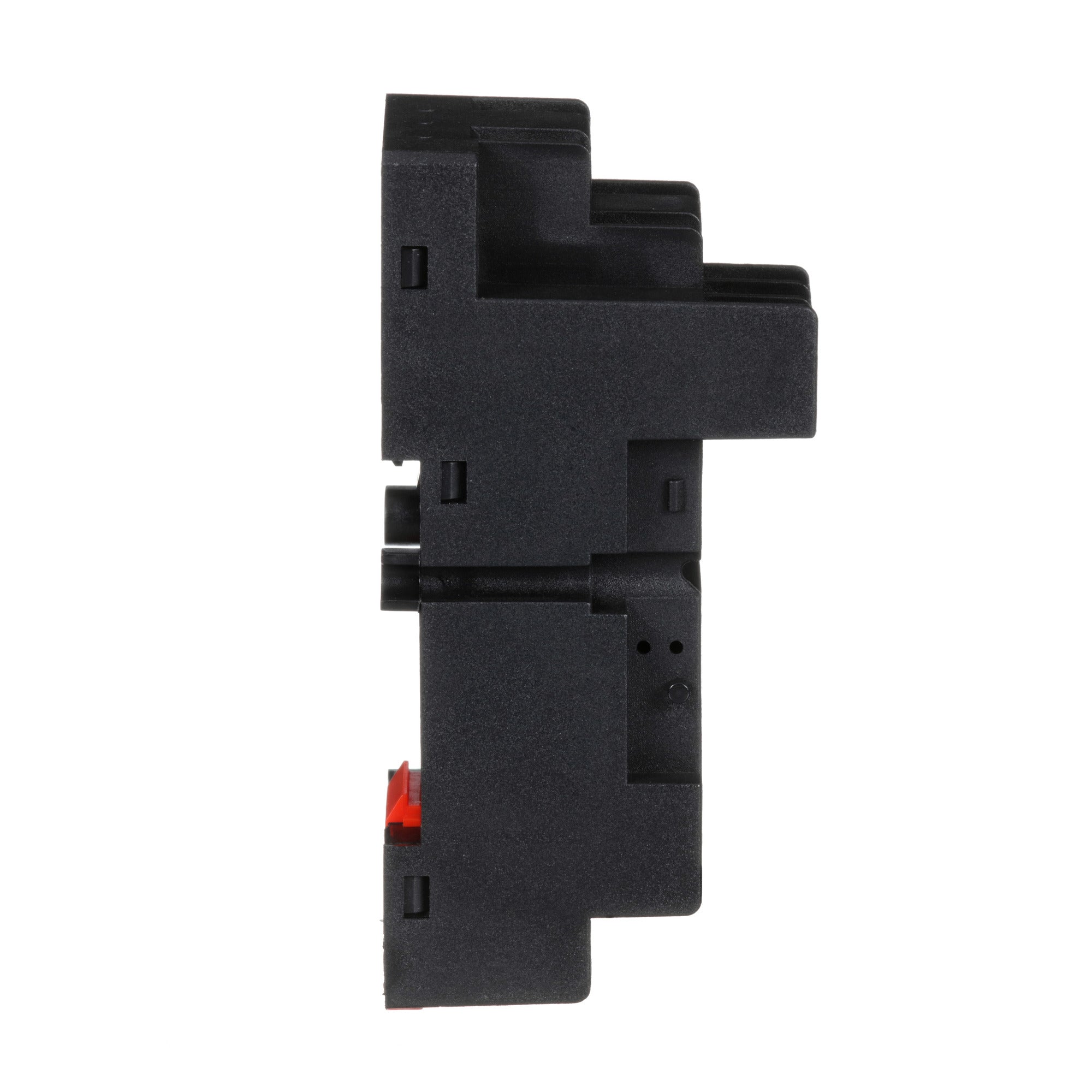

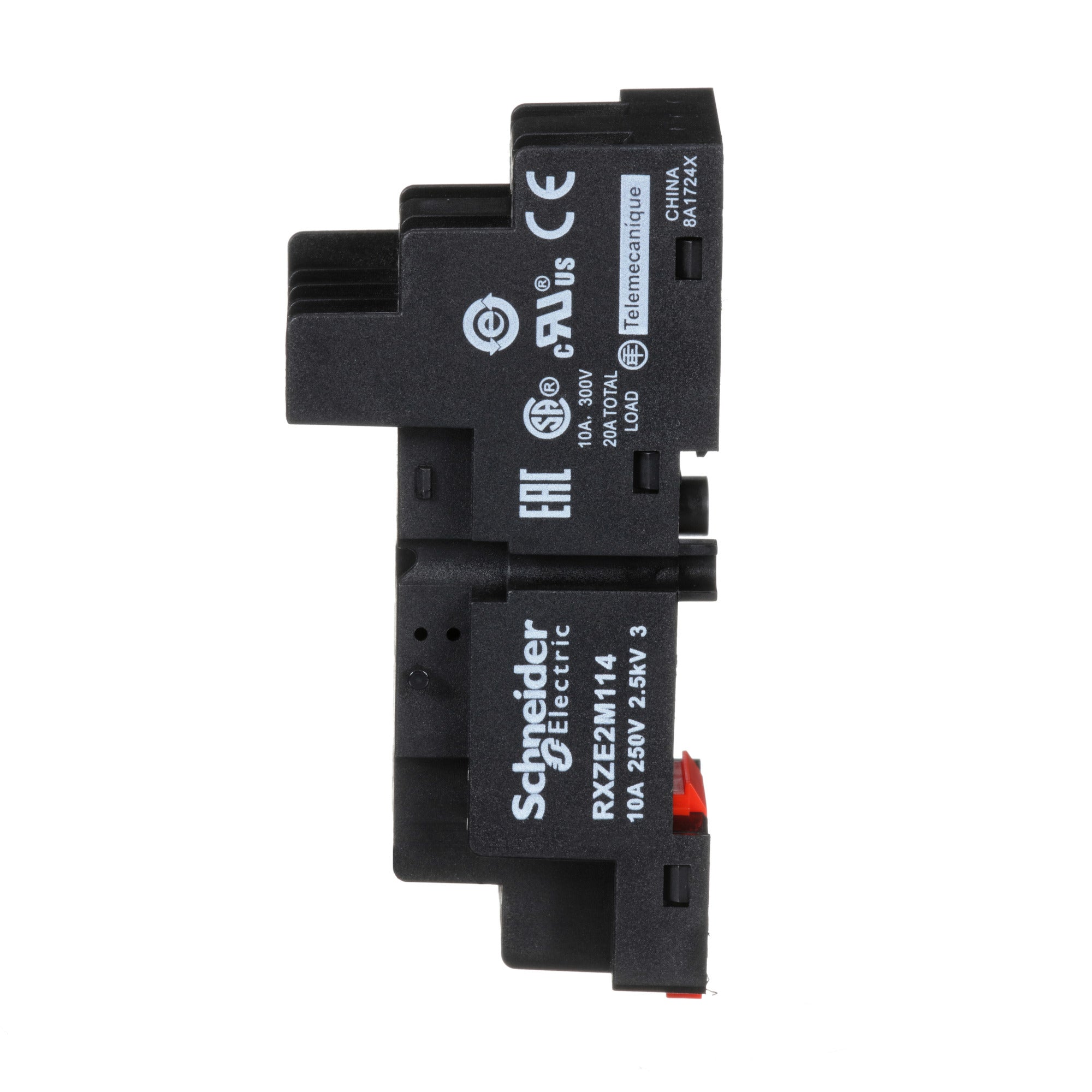

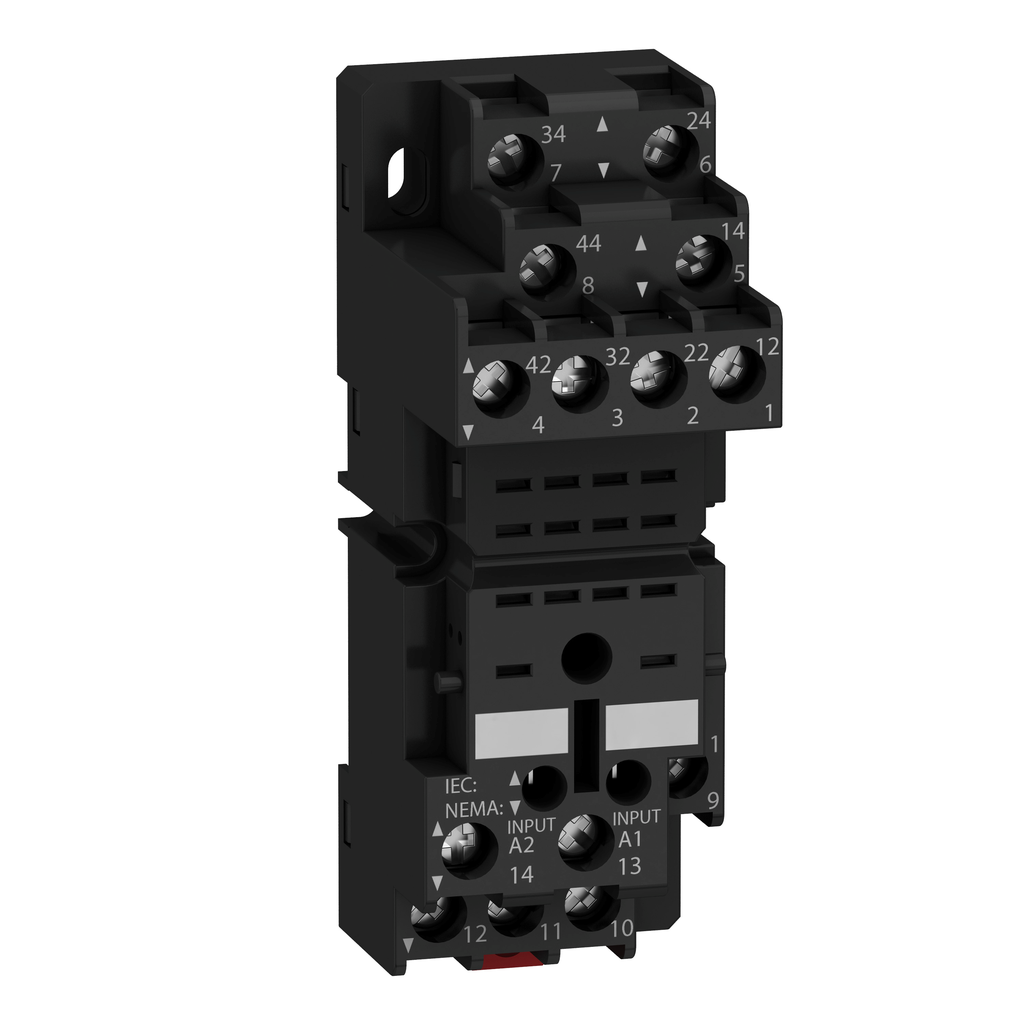

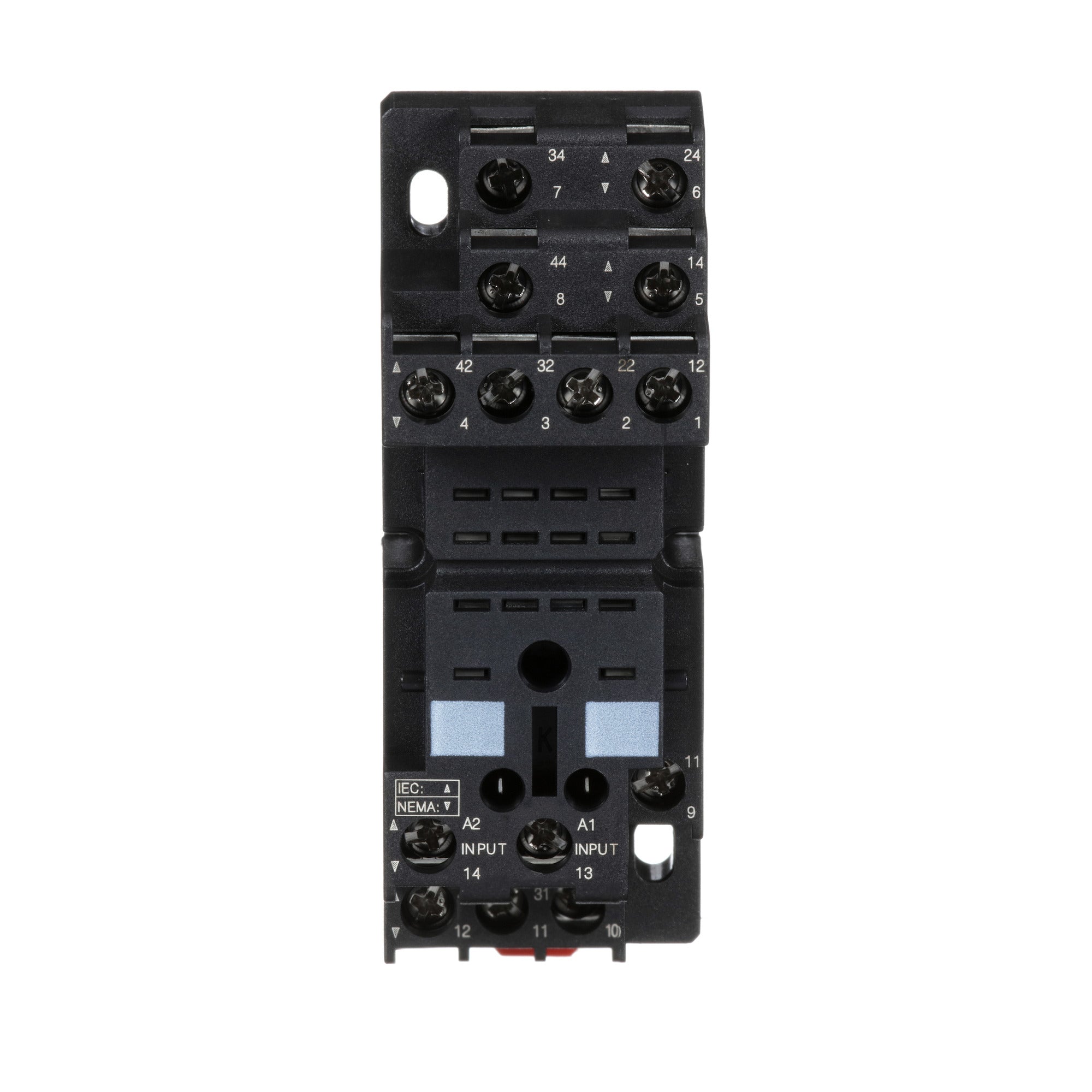

Schneider Electric RXZE2M114 Square D RXZE2M114 250 Volt 10 Amp 35 mm Din Rail/Panel Mount Screw Clamp Terminal Relay Socket

Product Description

The Schneider Electric RXZE2M114 is a reliable relay socket designed for general use in various industrial applications. This socket is capable of handling up to 250 volts and 10 amps, making it suitable for many control systems. With its screw clamp terminals, it provides ease of installation and maintenance.

• Compatible with RXM2 or RXM4 relays.
• Supports DIN rail or panel mounting options.
• Includes a test button for circuit operation verification.

Product Highlights

This relay socket is ideal for hard-wired logic systems and is UL Listed for safe operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: RXZE2M114
• Type: Socket
• Voltage Rating: 250 Volt
• Amperage Rating: 10 Amp
• Width: 30 mm
• Weight: 0.11 lb
• Mounting: DIN Rail / Panel
• Enclosure: IP20
• Country of Origin: China
• Certifications: UL, CSA
• Operating Temperature: -40 to 55 degrees Celsius
• Warranty Length: 18 months
• Applications: Compatible with Plug-in relay RXM 2 C/O and RXM 4 C/O
