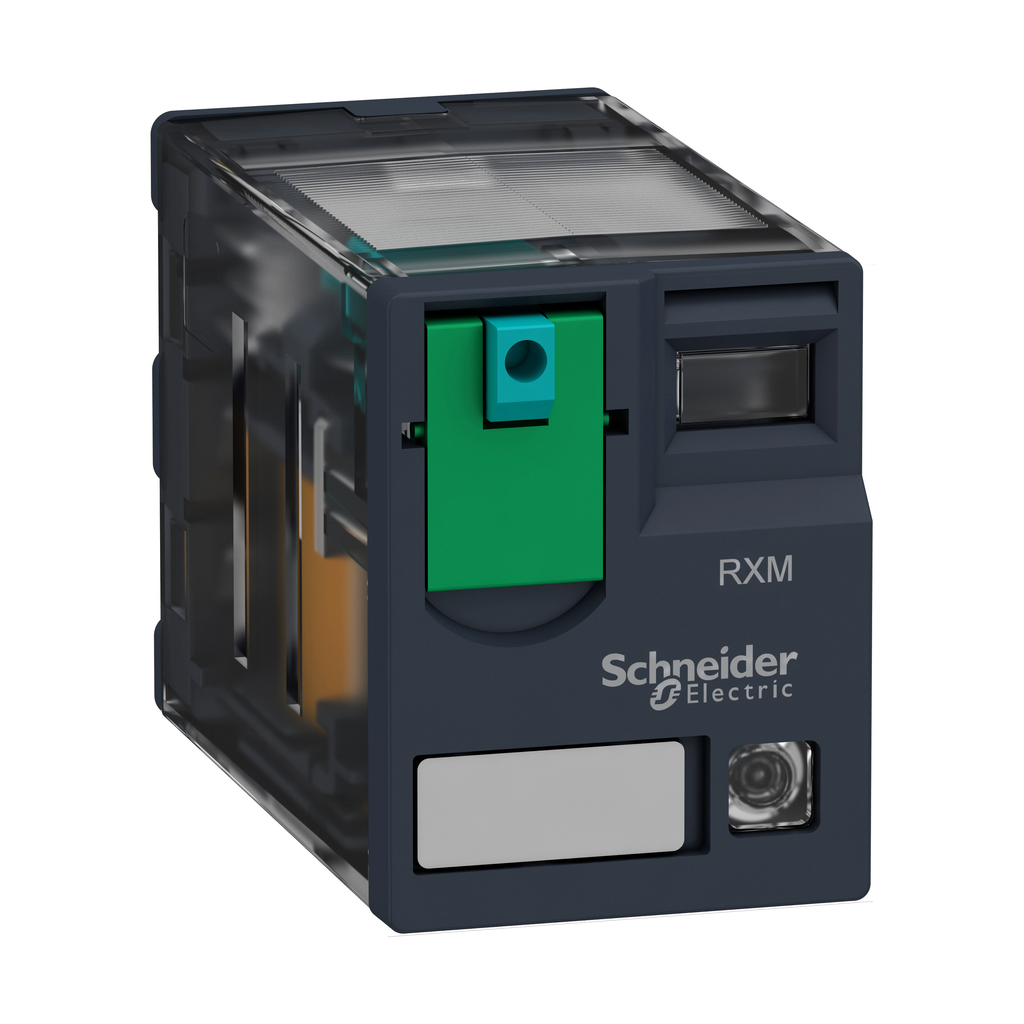

Schneider Electric RXM4GB2BD SQUARED RXM4GB2BD Miniature Plug In Relay 24V DC

Product Description

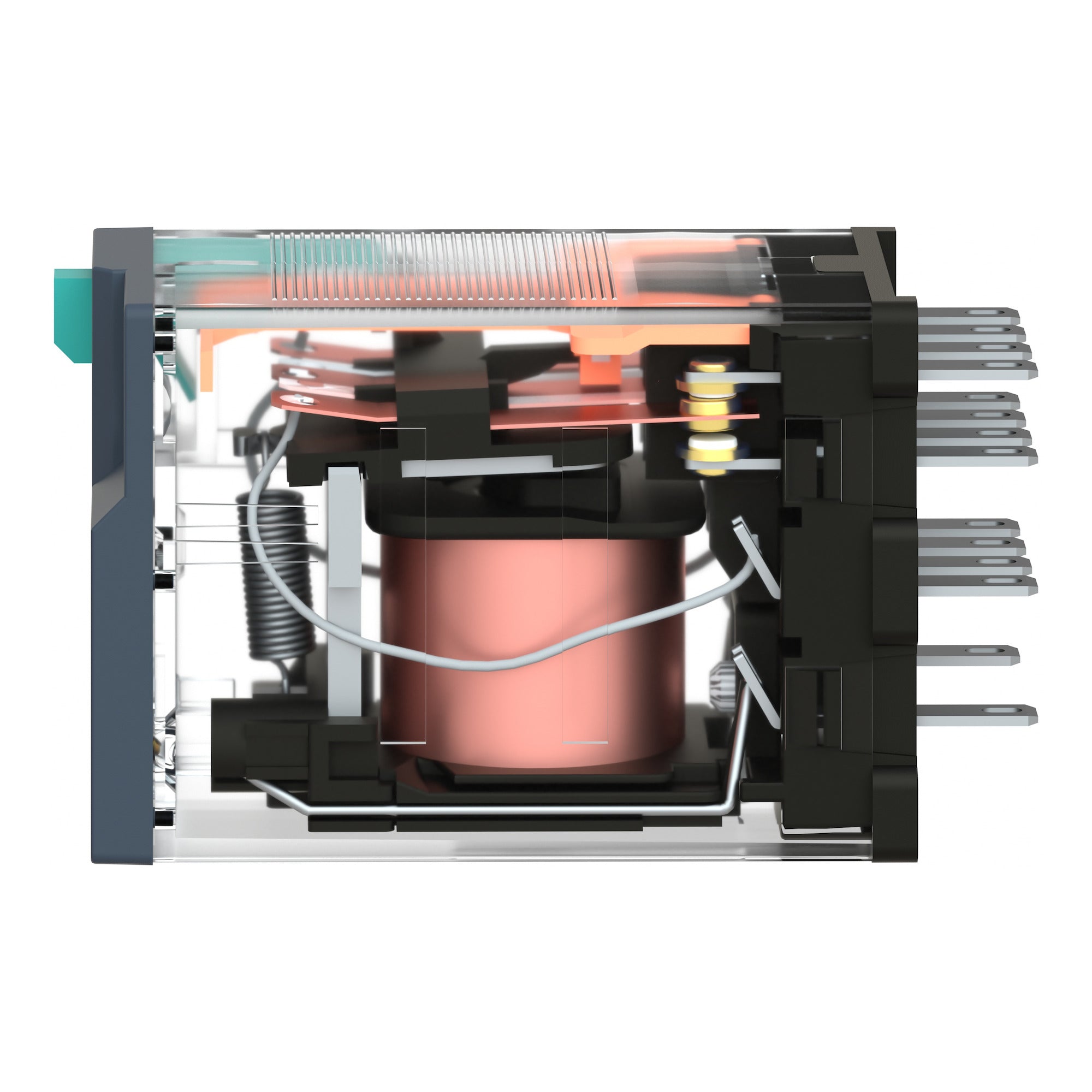

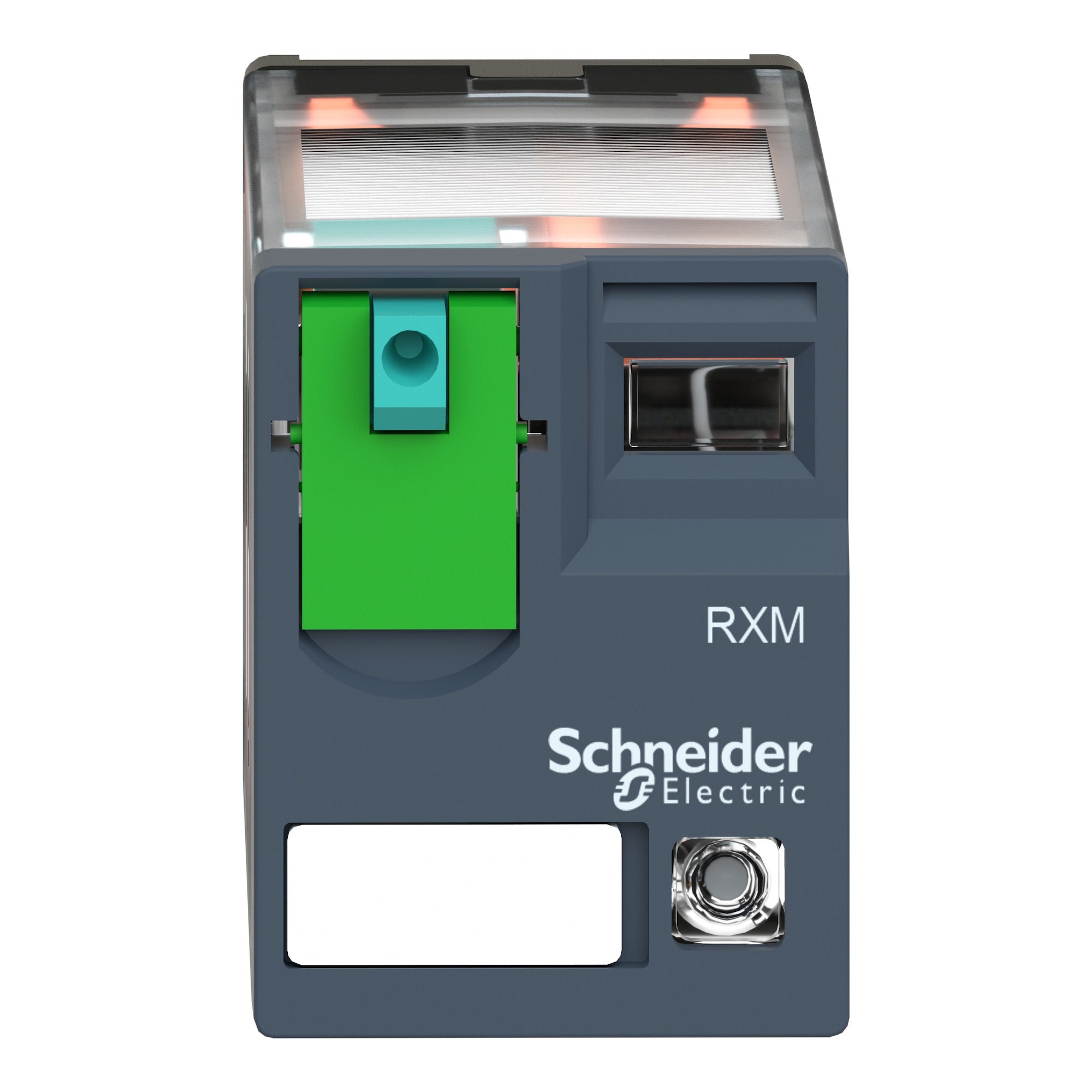

Schneider Electric RXM4GB2BD is a miniature plug-in relay designed for mounting on RXZE sockets. This relay features a four change-over (C/O) configuration with gold-plated contacts and a current rating of three amps at twenty-four volts DC. It includes a lockable test button and a mechanical indicator for monitoring contact status. Pressing the blue button activates the test function, and the green part locks it in place. An orange flag displays the relay contact status while a green LED indicates when the relay is operational, ensuring visibility in various lighting conditions.

This relay is suitable for industrial machines, automation control panels, HVAC systems, textile machinery, motor controls, and PLC interfaces. Its design is compliant with international standards including IEC, CE, UL, CSA, EAC, and RoHS, making it a reliable option for various applications. It protects against vibrations with optional clamps and includes available protection modules. The RXM series offers multiple configurations for complex automation needs.

• Current rating of three amps and control circuit voltage of twenty-four volts DC
• Includes mechanical indicator and lockable test button
• Compatible with RXZE sockets for easy installation

Product Highlights

Miniature relay for precise control in industrial applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: RXM4GB2BD

Technical Specifications

• Type: Plug-in relay
• Weight: 0.08 lb
• Amperage: 3 Amp
• Minimum Operating Temperature: -40 degrees C
• Maximum Operating Temperature: 55 degrees C
• Warranty Length: 18 months
• Country of Origin: China
