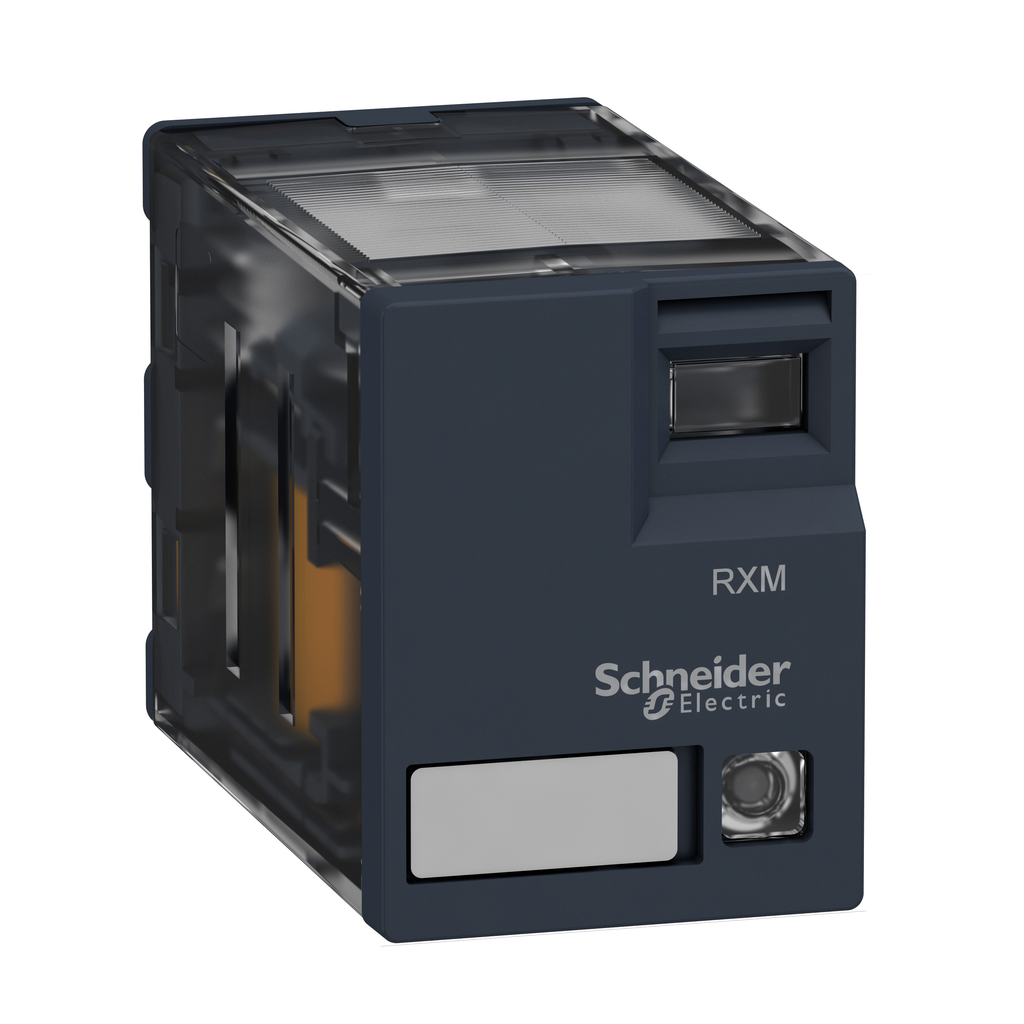

Schneider Electric RXM4AB3F7 Plug-In Relay 6 Amp 250 Volt

Product Description

The Schneider Electric RXM4AB3F7 is a plug-in relay designed for reliable performance in various control applications. This relay manages current ratings of up to six amps at 277 volts AC and eight amps at 28 volts DC, featuring a four contact organization. This relay requires a compatible RXZ relay socket for operation and serves multiple functions in both automation and control systems.

• Designed for utilization in control systems.
• Includes a bipolar LED for status indication.
• UL listed and CSA certified for safety compliance.

Product Highlights

This product features a compact design that accommodates four changeover contacts, ensuring flexibility in control setups. Suitable for various industrial automation and control scenarios.

Product Information

Standard Information

• Catalog Number: RXM4AB3F7
• Manufacturer: Schneider Electric

Technical Specifications

• Weight: 0.08 lb
• Amperage: 6 A at 250 V AC, 8 A at 28 V DC
• Coil Voltage: 120 VAC 50/60 Hz
• Operating Temperature: -40 to 55 degrees C
• Contact Configuration: 4 C/O
• Country of Origin: China
• Certifications: UL, CSA
• Standard Compliance: CSA C22.2 No 14, IEC 61810-1, UL 508
