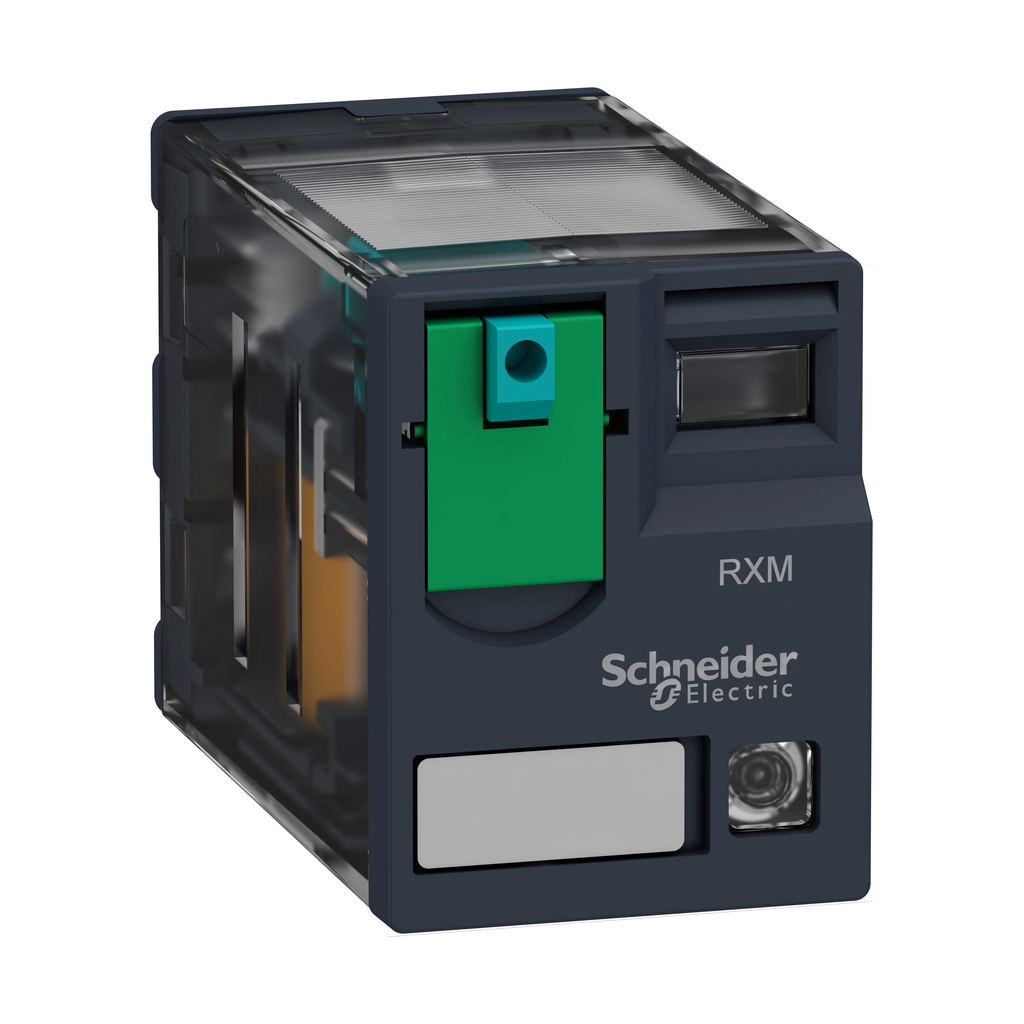

Schneider Electric RXM4AB2BD Square D 24 VDC 6 Amp 4CO DPDT Relay

Product Description

The Schneider Electric RXM4AB2BD is a plug-in relay specifically designed for use with RXZE sockets. This miniature relay features a four changeover (C/O) contact configuration and is rated for a maximum current of six amperes at a control voltage of twenty-four volts DC. The relay includes a lockable test button that is activated temporarily by pressing the blue pushbutton. The mechanical indicator, marked with an orange flag, provides a clear status of the relay's contact. A green LED lights up when the relay is active, ensuring visibility both day and night.

• Standardized for various applications, including industrial machines, packaging, HVAC, and motor controls.
• Conforms to international standards such as IEC, CE, UL, and RoHS.
• Sold in packs of ten, with a reference to the relay only.

Product Highlights

This relay is engineered for reliability in both simple and complex automation tasks.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: RXM4AB2BD
• Control Type: Lockable test button
• Operating Temperature: -40 to 55 degrees Celsius
• Dimensions: Eighty-point-three-five millimeters by eighty-two-point-eight millimeters
• Weight: Zero-point-zero-eight pounds
• Contact Rating: Six amperes
• Country of Origin: China
• Warranty: Eighteen months
