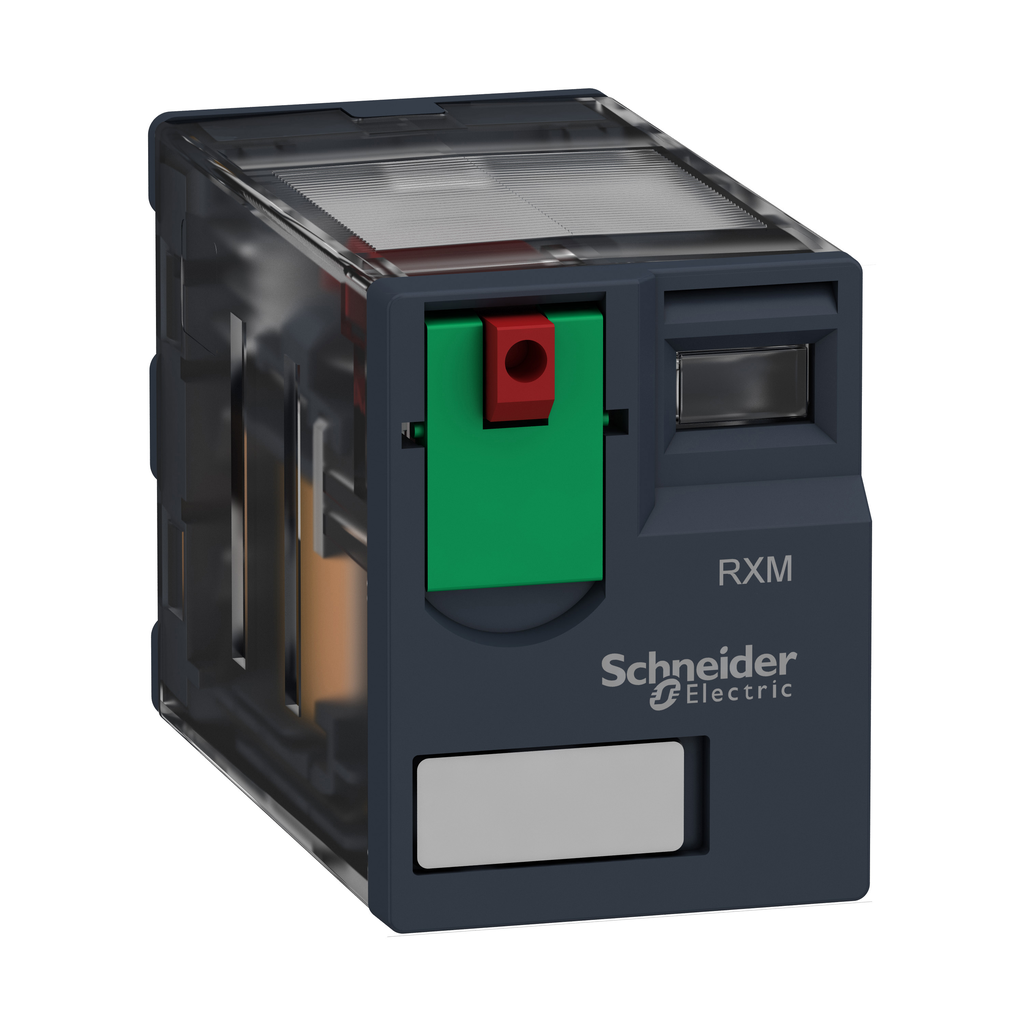

Schneider Electric RXM4AB1F7 Square D 120 VAC 6 Amp 4CO DPDT Din Rail/Panel Mount Miniature Plug-In Relay

Product Description

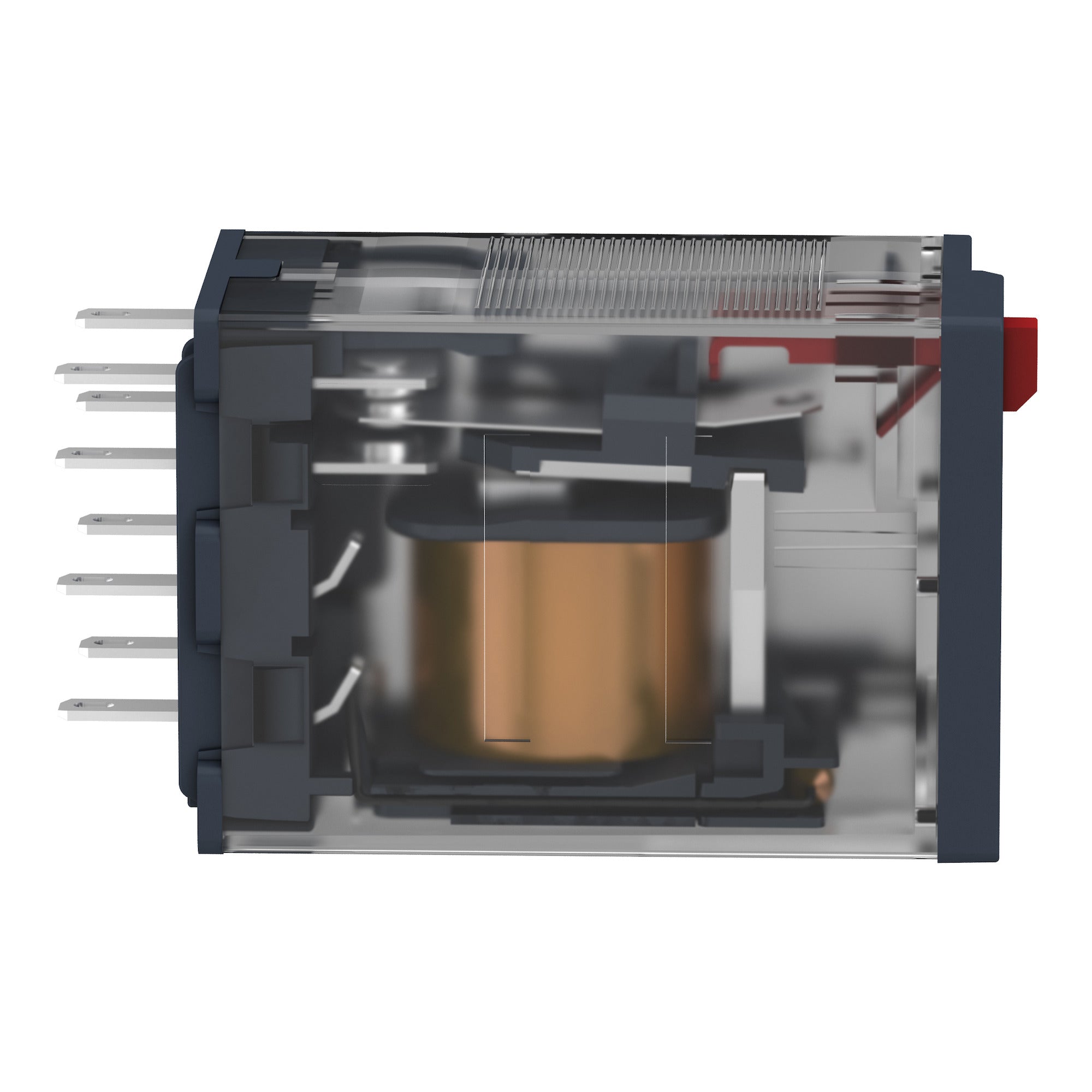

The Schneider Electric RXM4AB1F7 is a reliable plug-in relay suitable for a variety of industrial applications. This miniature relay works with a RXZE socket, offering a 4 changeover contact (C/O) configuration with a current rating of six amps and a control voltage of one hundred twenty volts AC at fifty to sixty hertz. The relay features a lockable test button for safe operation and a mechanical indicator displaying contact status with an orange flag.

• Fit for automation and control systems in packaging, HVAC, and textile industries.
• Green premium product, compliant with IEC, CE, UL, CSA, RoHS, and REACH standards.
• Designed for long-lasting performance in harsh conditions with a robust construction.

Product Highlights

The RXM4AB1F7 relay is designed for reliable operation within complex automation systems. The use of protection modules and optional clamps enhances functionality and durability.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: RXM4AB1F7
• Control Type: Lockable test button

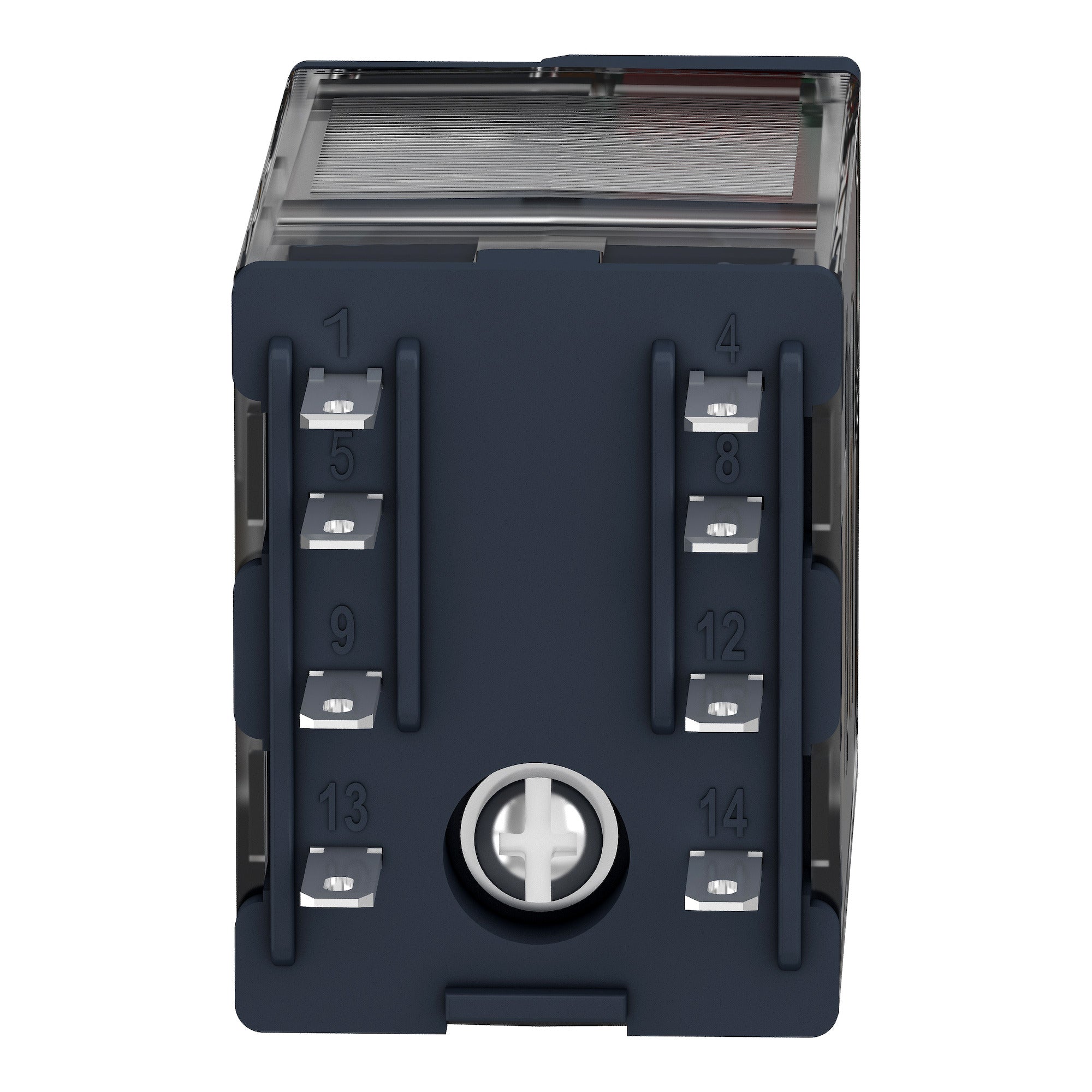

• Contact Configuration: 4 C/O
• Current Rating: 6 A
• Operating Temperature: -40 to 55 degrees C
• Country of Origin: China
• Weight: 0.08 lb
• Dimensions: 78.45 mm x 79 mm
