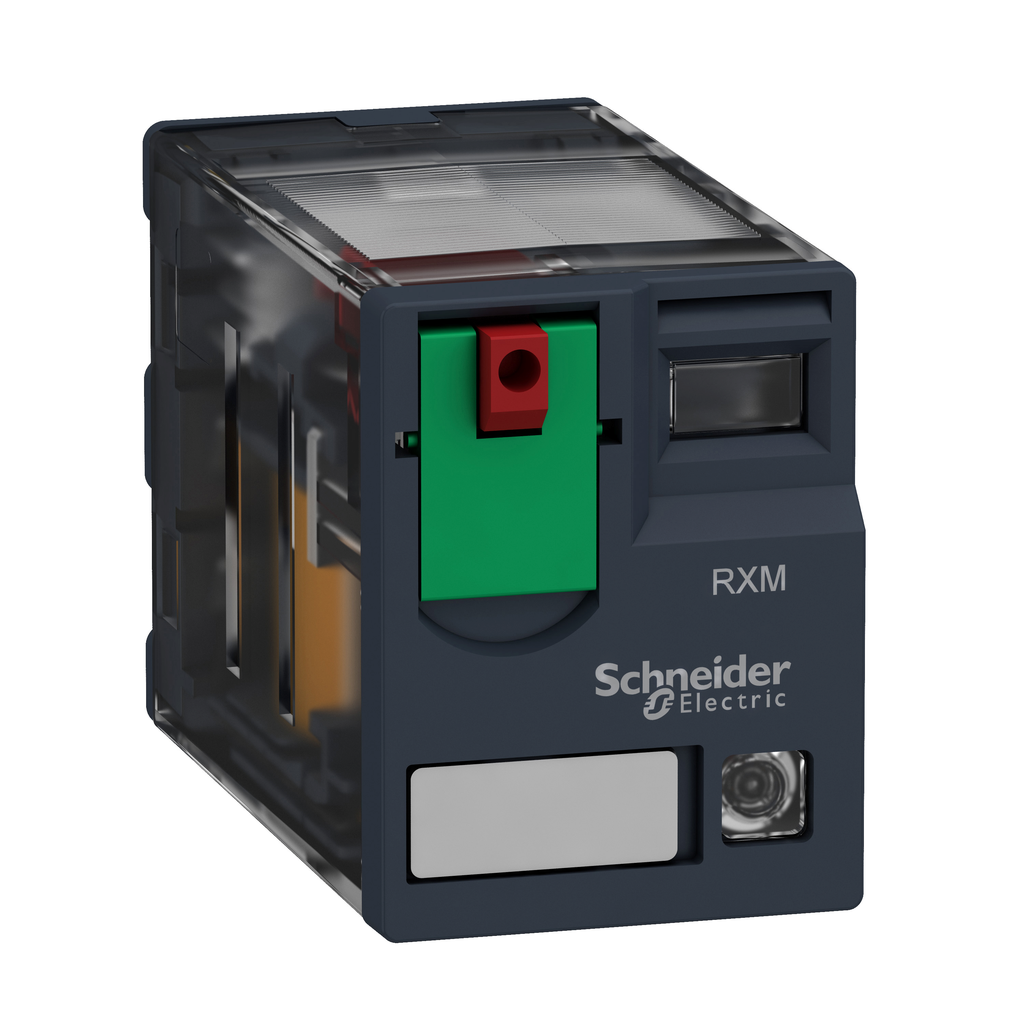

Schneider Electric RXM3AB2F7 Square D 120 VAC 10 Amp 3CO DPDT Din Rail/Panel Mount Miniature Plug-In Relay

Product Description

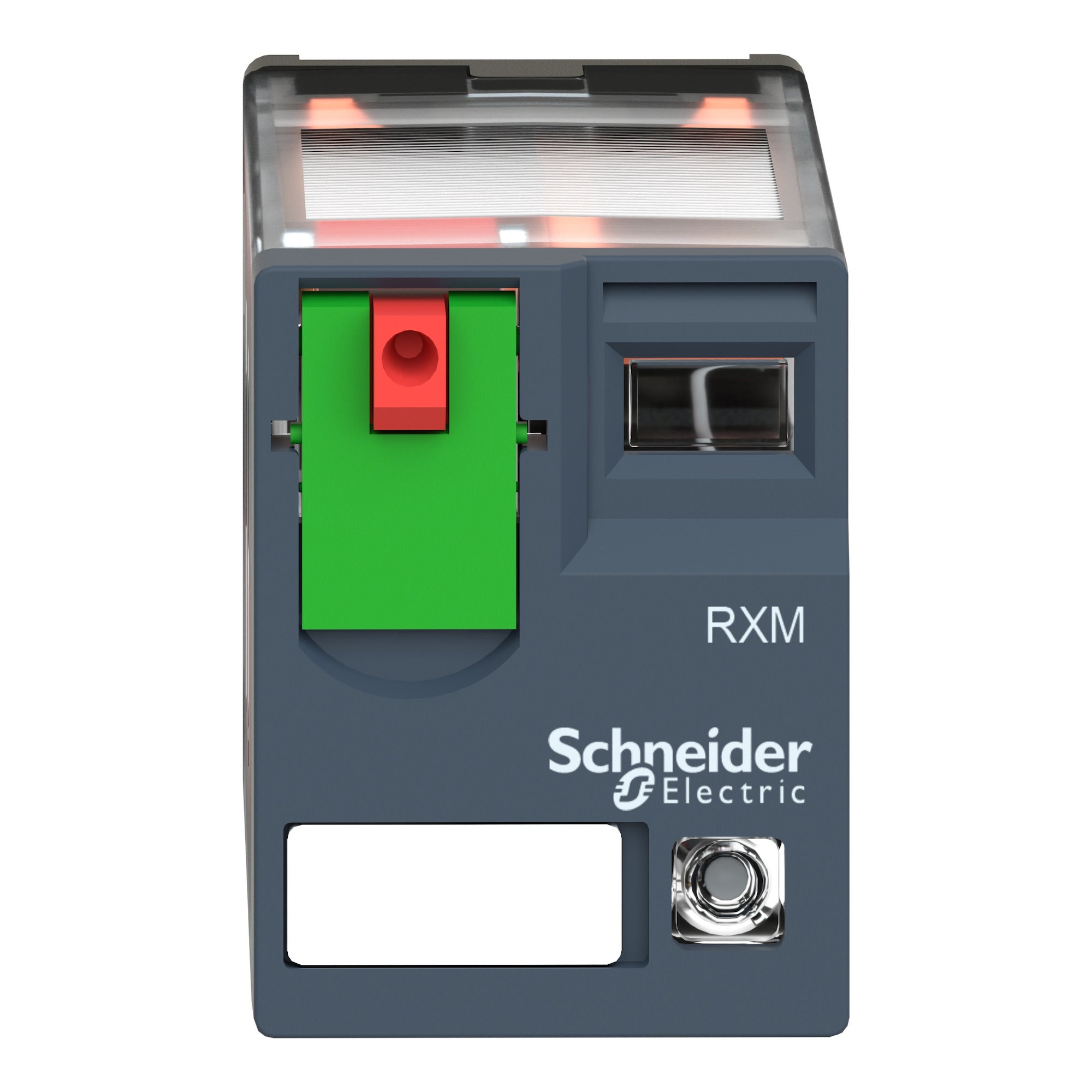

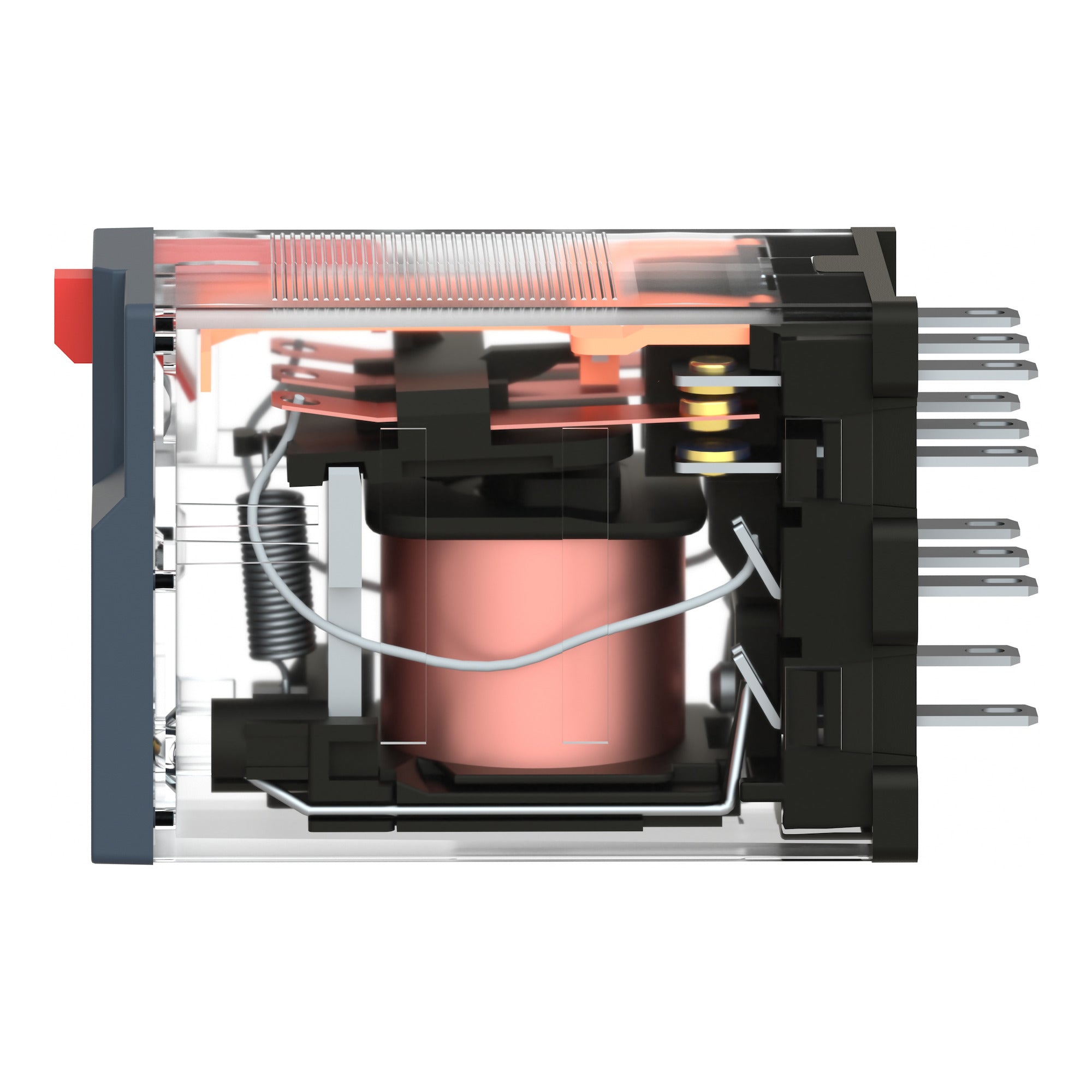

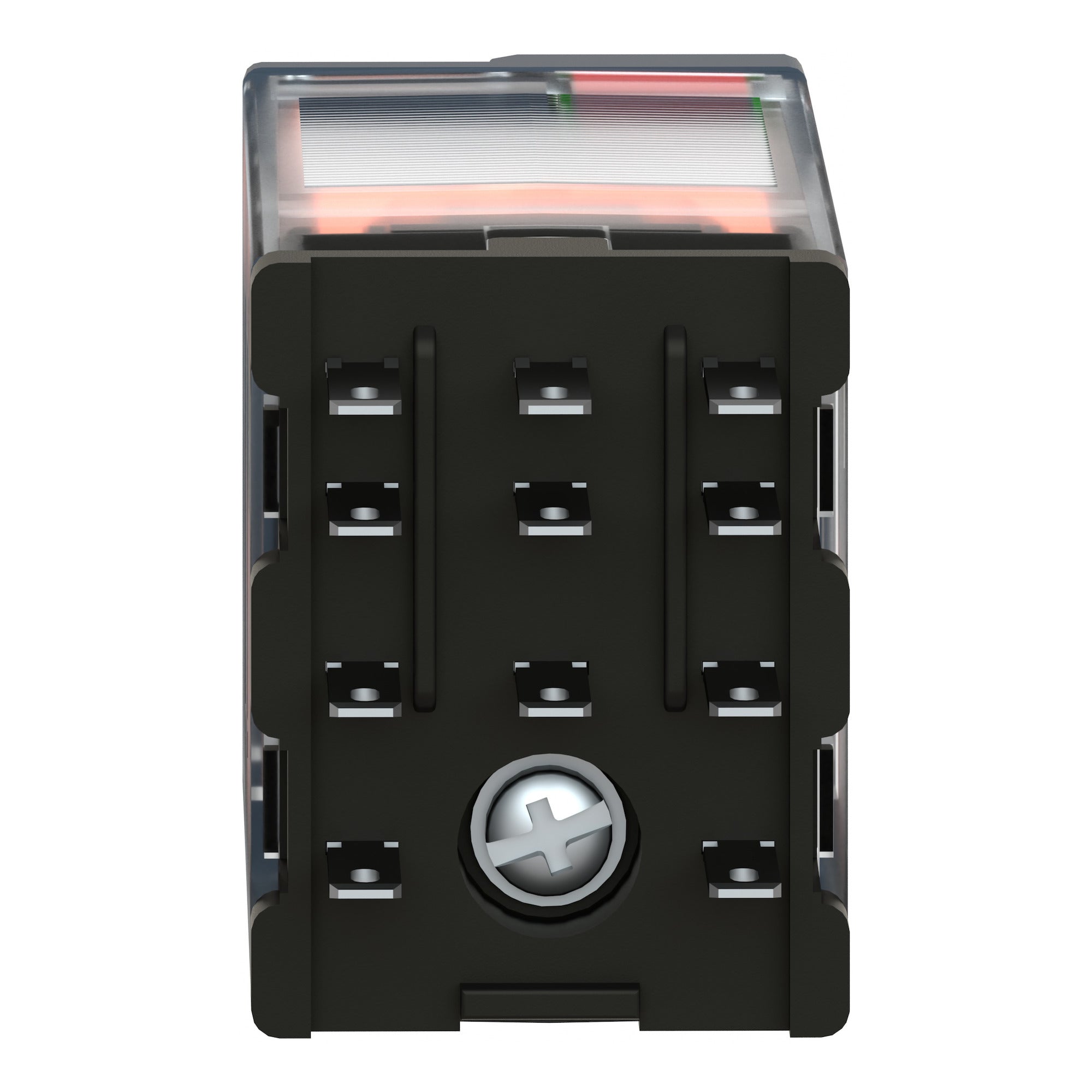

Schneider Electric RXM3AB2F7 is a miniature relay designed for various control applications. This plug-in relay mounts on an RXZE socket and features a three changeover (3 C/O) contact configuration with a current rating of ten amps. It operates at a control circuit voltage of one hundred twenty volts AC at fifty or sixty hertz. The relay includes a lockable test button and a mechanical contact status indicator. To activate the test button, press the red pushbutton on the front, and lock it by flipping up the green guard. An orange flag signals the relay's contact status, while a green LED lights up when the relay is on, providing a clear visual indication of operation both during the day and night.

• Rated for 10 Amps, 120 VAC, 50/60 Hz.
• Lockable test button with mechanical indicator for contact status.
• Designed for use in industrial machines, HVAC systems, and automation control panels.

Product Highlights

This relay is suitable for a variety of industrial applications including textile, packaging, and low to medium voltage switchgear. It conforms to IEC, CE, UL, CSA, EAC, Lloyd's, RoHS, and REACH standards, enhancing its reliability and safety in different environments.

Product Information

Standard Information

• Catalog Number: RXM3AB2F7
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Plug-In Relay
• Amperage: 10 Amp AC, 10 Amp DC
• Operating Temperature: -40 to 55 degrees C
• Enclosure Rating: IP40
• Weight: 0.08 lb (0.037 kg)
• Power Consumption: 1.2 VA
• Country of Origin: China
• Warranty Length: 18 months
