Schneider Electric RXM3AB1JD SQUARED RXM3AB1JD miniature plug in 12V DC 10A 3CO replacement MPN

Product Description

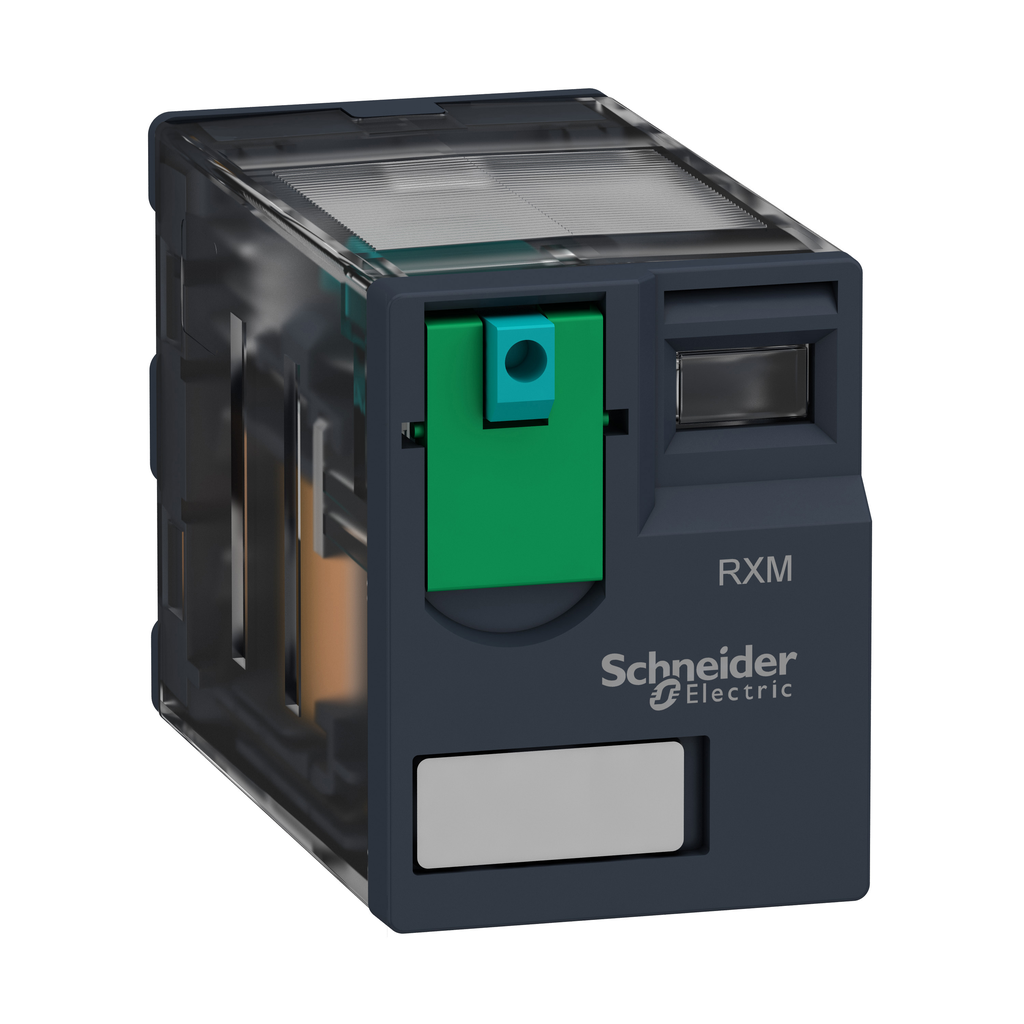

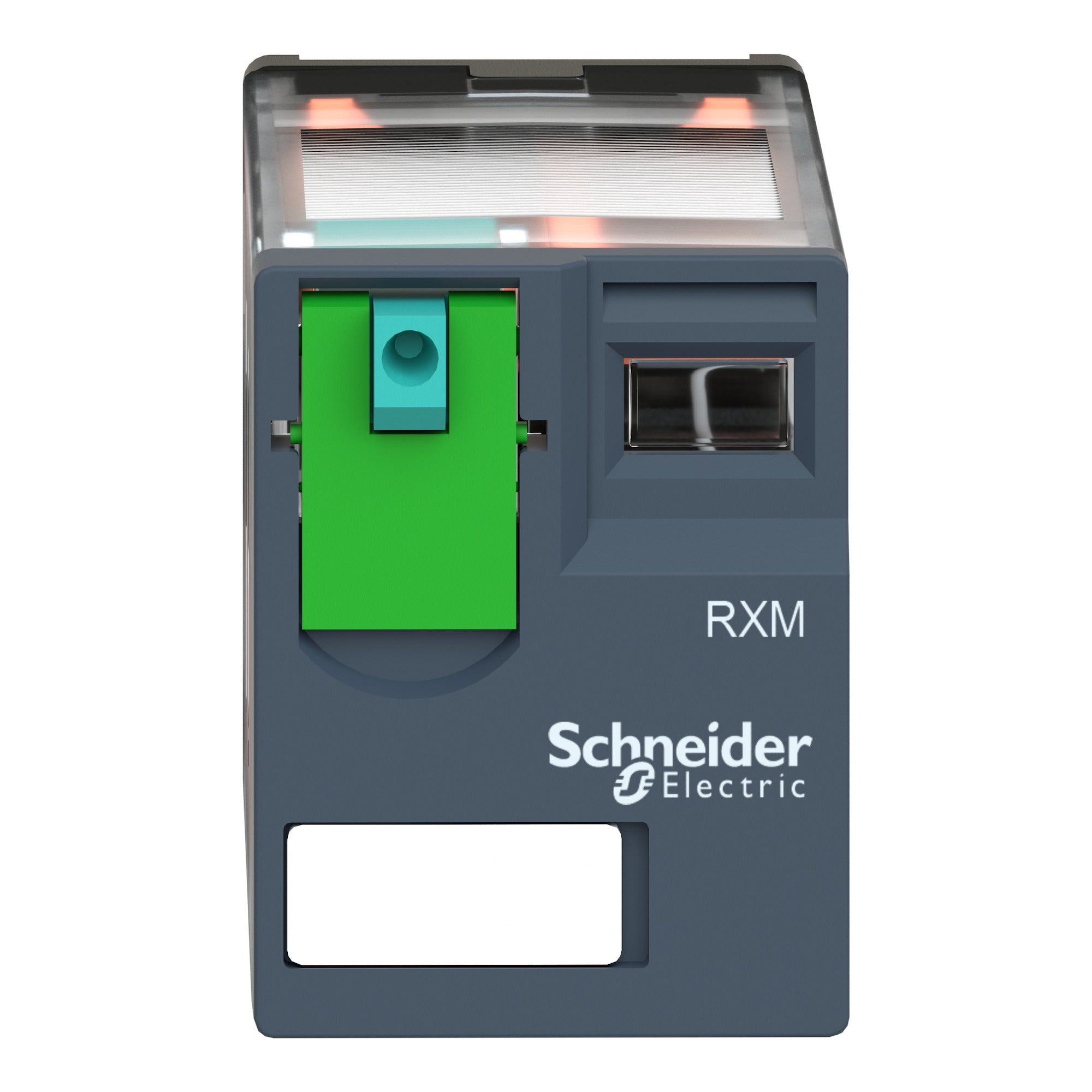

This Schneider Electric RXM3AB1JD miniature plug-in relay operates at a coil control voltage of twelve volts DC. It features three changeover contacts rated for ten amps. This model is designed for high-rated current applications while maintaining a compact design.

• IP40 rating for protection against dust and particles
• Lockable test button for operational checks

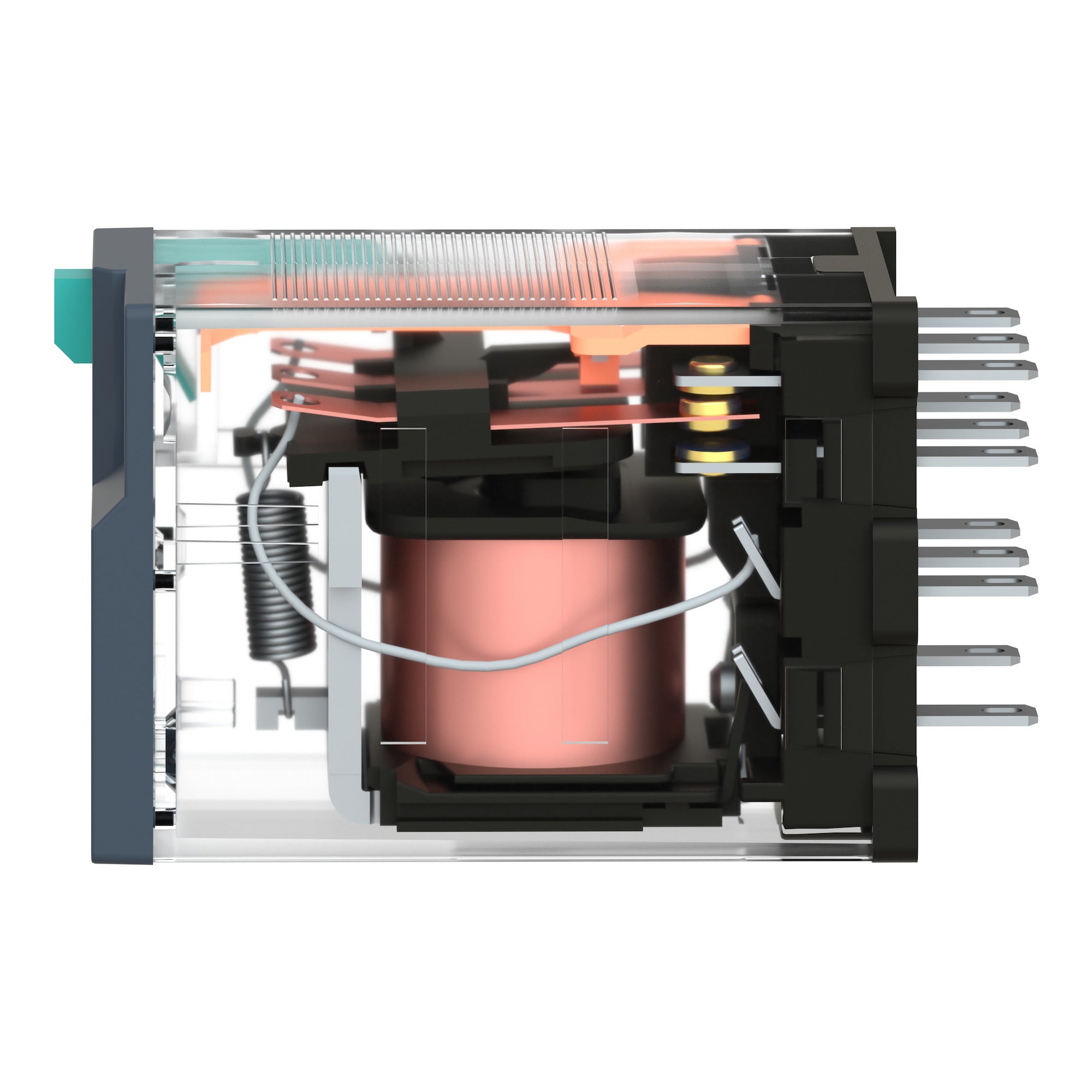

• Transparent cover allows for visible contact inspection

Product Highlights

This miniature relay is suitable for various automation systems, integrating seamlessly with programmable logic controllers (PLCs). It is a green premium choice that complies with several international standards such as IEC, CE, UL, CSA, EAC, and RoHS.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: RXM3AB1JD
• Coil Control Voltage: 12V DC
• Contact Configuration: 3 C/O
• Rated Current: 10A
• Operating Temperature: -40 to 55 degrees C
• Height: 79 mm
• Weight: 0.08 lb
• Country of Origin: China
