Schneider Electric RXM3AB1BD miniature plug in relay 10A 3CO 24V DC

Product Description

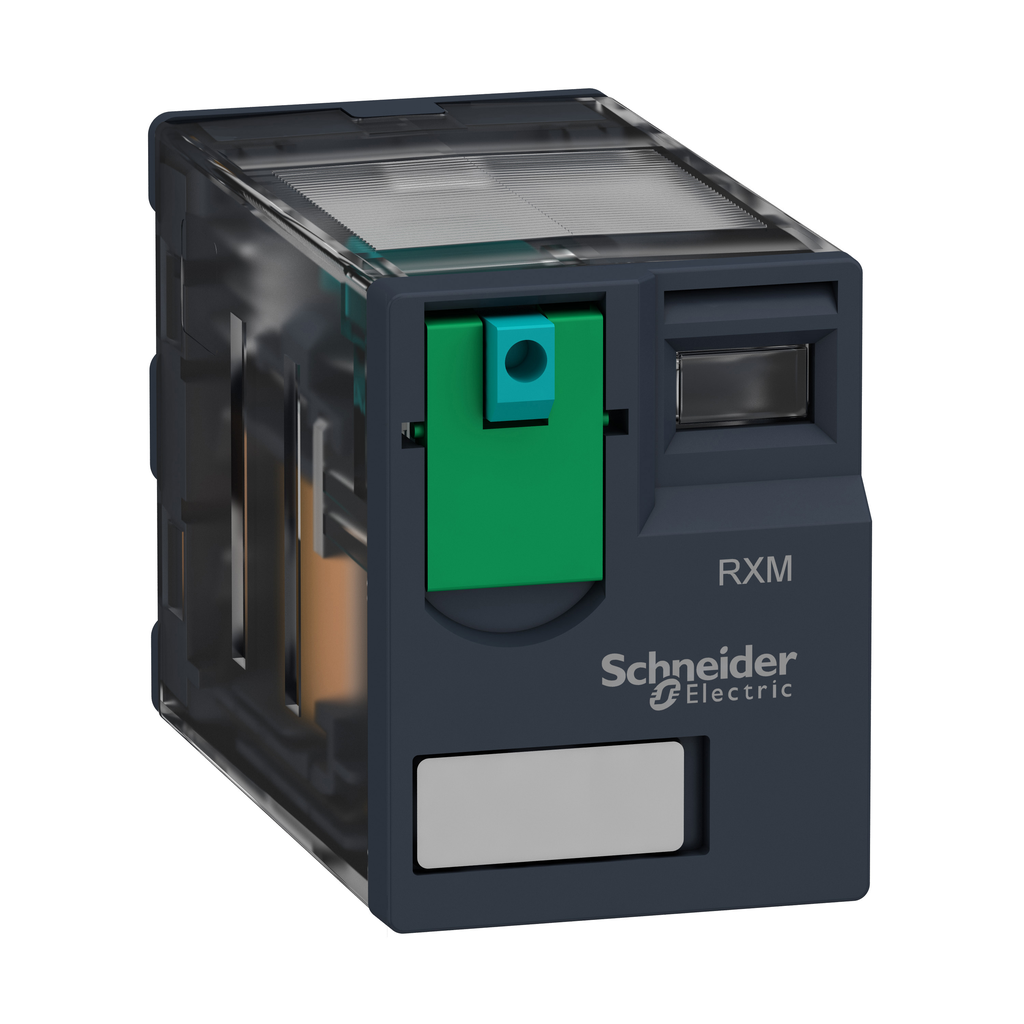

Schneider Electric RXM3AB1BD is a miniature plug-in relay suitable for mounting on a RXZE socket. This relay features a configuration of three changeover contacts, rated for a maximum current of ten amperes and operates at a control voltage of twenty-four volts DC. It includes a lockable test button and a mechanical indicator that show the contact status. The blue pushbutton on the front temporarily activates the test button, which can be locked by flipping up the green element. The orange flag next to the button indicates if the relay contacts are engaged.

• Three changeover contacts with a current rating of ten amperes
• Operates at a control voltage of twenty-four volts direct current
• Includes a lockable test button for easy operation

Product Highlights

This relay is designed for industrial applications, suitable for automation control, HVAC systems, and motor controls. It conforms to international standards including IEC, CE, UL, and RoHS, making it a reliable choice for complex automation tasks.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Warranty: Eighteen months

Technical Specifications

• Catalog Number: RXM3AB1BD
• Control Voltage: 24 V DC
• Current Rating: 10 A
• Contact Configuration: 3 C/O
• Operating Temperature: -40 to 55 degrees Celsius
• Height: 82.8 mm
• Weight: 0.08 lb
• Country of Origin: China
