Schneider Electric RXM2AB2P7 General Purpose Relay 3000 Va

Product Description

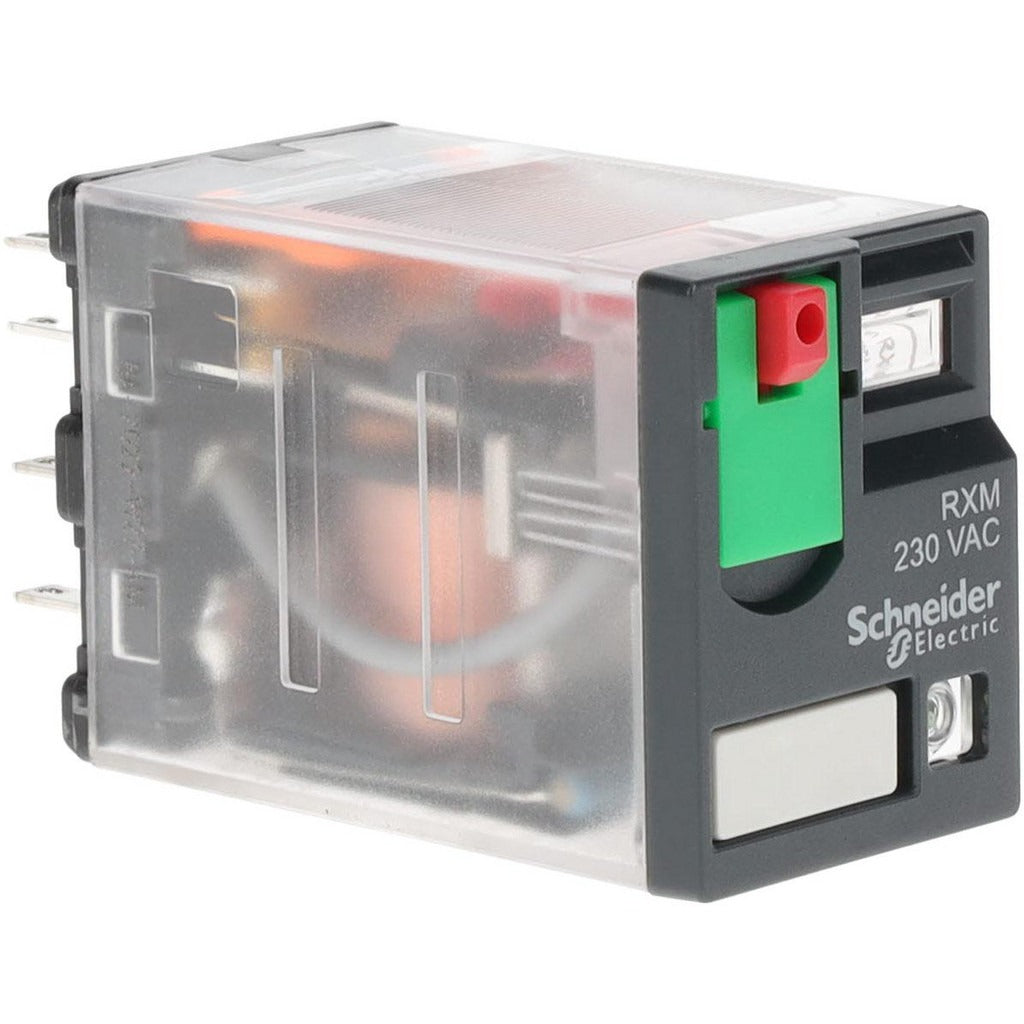

The SCHNEIDER ELECTRIC RXM2AB2P7 is an electromechanical plug-in general purpose relay rated at 3,000 VA. It features a 2CO (double changeover) contact form and operates on 230 VAC at 50/60 Hz coil voltage. Switching capacity reaches 12 amps at 250/277 VAC and 28 VDC for resistive loads, with a 6-amp rating at 250 VAC and 28 VDC for inductive loads. The plug-in design allows installation into standard relay sockets without hardwiring the relay body directly. Licensed electricians and HVAC controls technicians are the primary installers for this relay in panel and control circuit applications.

The RXM2AB2P7 suits residential and light commercial control circuit applications where a compact, socketed relay is required. Typical uses include HVAC control panels, building automation relay panels, motor starter auxiliary circuits, and industrial control enclosures. The dual-coil changeover contacts make it well suited for switching two independent circuits from a single coil activation. Its compact footprint — 1.8 inches long, 1.1 inches wide, and 0.8 inches tall — keeps panel layouts tight and organized. This relay is appropriate for any application requiring UL 508 and CSA C22.2 No. 14 listed control components.

Key Features

• 3,000 VA power rating supports demanding switching loads
• 2CO contact form switches two independent circuits simultaneously
• Plug-in terminal type for tool-free relay body replacement
• 230 VAC coil at 50/60 Hz covers both North American and international panel voltages
• 12-amp contact rating at 250/277 VAC for resistive loads
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 61810-1, RoHS, and REACH

Compatibility

Designed as an OEM-style plug-in replacement for general purpose relay sockets accepting 2CO electromechanical relays with a 230 VAC coil. Verify socket pin layout and coil voltage match before installation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC guidelines and any applicable local codes. De-energize and lock out the control panel before removing or inserting the relay into its socket. Confirm the socket base is rated for the relay body and that coil voltage matches the control circuit supply. Avoid exceeding the published contact current and voltage ratings to prevent premature contact wear.
