Schneider Electric RXM2AB2JD Plug-in Relay 3000 Va 2CO

Product Description

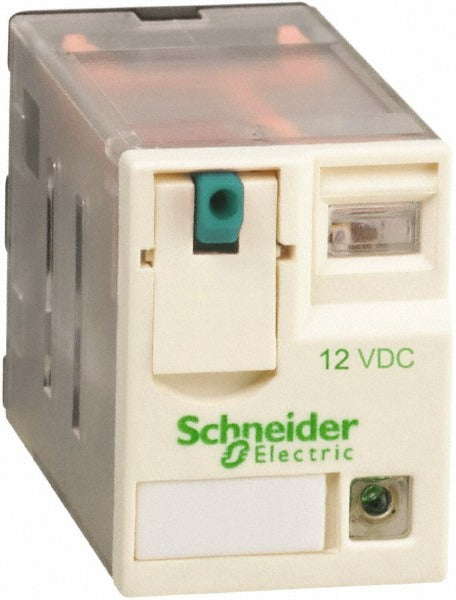

The SCHNEIDER ELECTRIC RXM2AB2JD is a plug-in electromechanical general purpose relay rated at 3,000 VA, designed for control panel and automation applications across commercial and industrial electrical systems. The relay features a 2CO (double changeover) contact form and operates on a 12 VDC coil. Contact ratings reach 12 amps at 250/277 VAC and 28 VDC for standard loads, and 6 amps at 250 VAC and 28 VDC for higher-resistance circuits. Its compact plug-in form factor allows quick installation and field replacement without specialized tooling. Licensed electricians and automation technicians are the primary installers.

This relay is suited for residential and light commercial control circuits, building automation panels, HVAC control boards, and general-purpose switching applications where a compact, socketed relay is required. The plug-in termination style makes it a practical choice for panel builders and service technicians who need fast, reliable component swaps in crowded enclosures. The 2CO contact configuration supports both normally open and normally closed circuit paths from a single device, reducing component count in control wiring layouts.

Key Features

• 3,000 VA power rating for dependable switching capacity
• 2CO double changeover contact form provides NO and NC paths in one relay
• 12 amp contact rating at 250/277 VAC and 28 VDC
• 6 amp contact rating at 250 VAC and 28 VDC for resistive loads
• 12 VDC coil voltage for low-voltage control circuit compatibility
• Plug-in terminal type allows tool-free removal and replacement
• Meets CSA, UL 508, EN/IEC 61810-1, RoHS, and REACH standards

Compatibility

Designed as an OEM-style plug-in general purpose relay for use in standard relay sockets accepting 2CO plug-in relays with matching footprint and coil voltage.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize the control panel and verify the circuit is dead before inserting or removing the relay from its socket. Confirm the socket footprint and coil voltage match before installation. Do not exceed the published contact current or voltage ratings for the intended load type.
