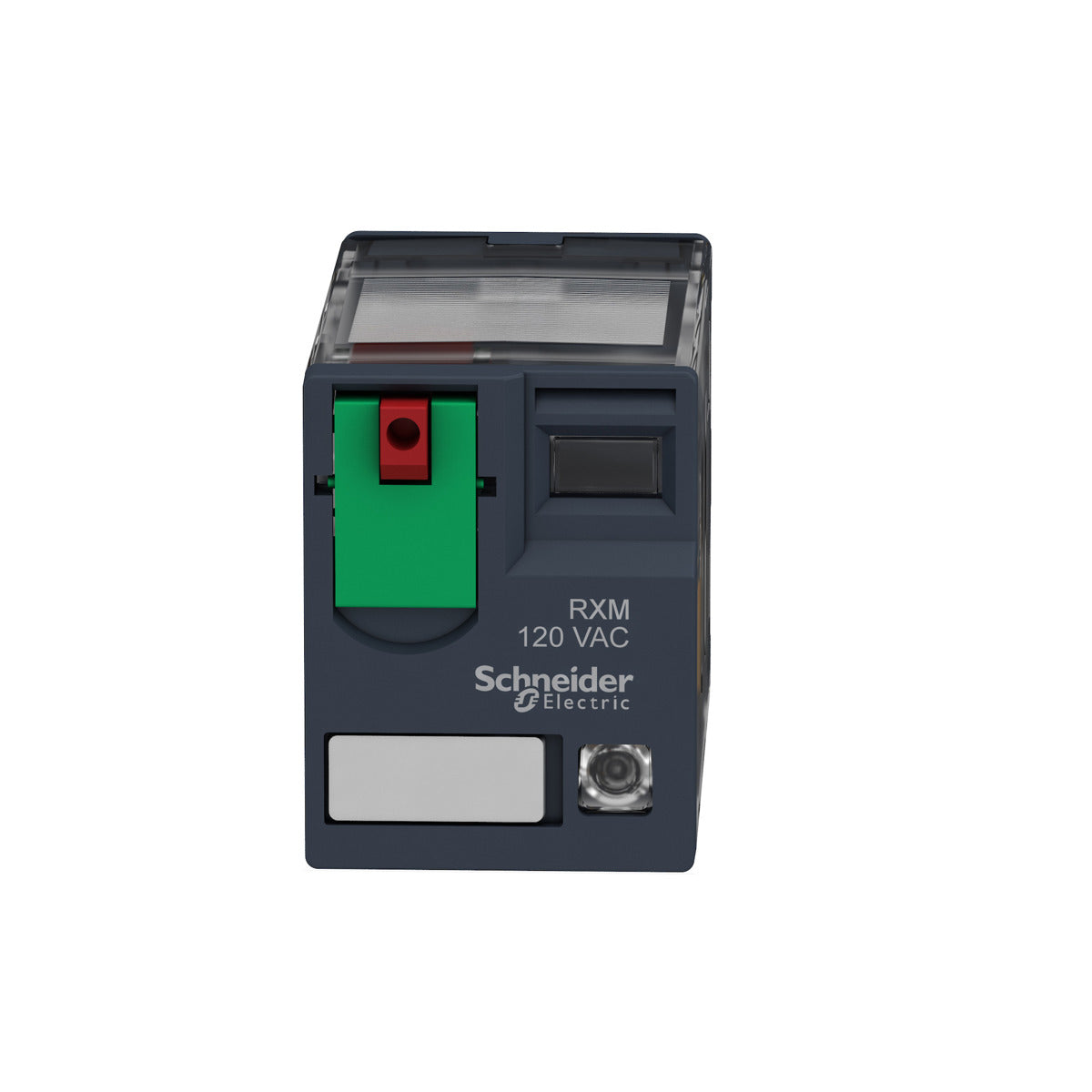

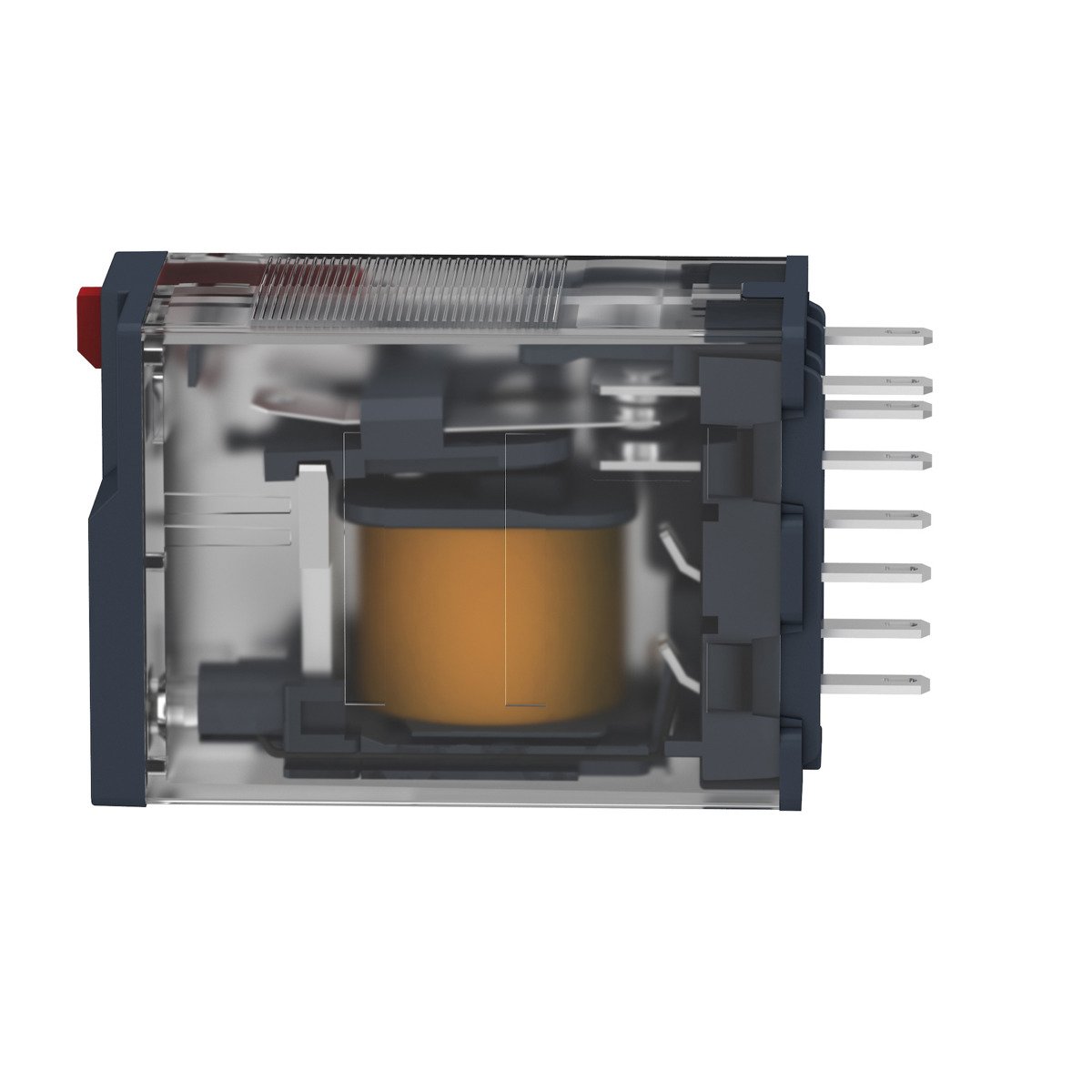

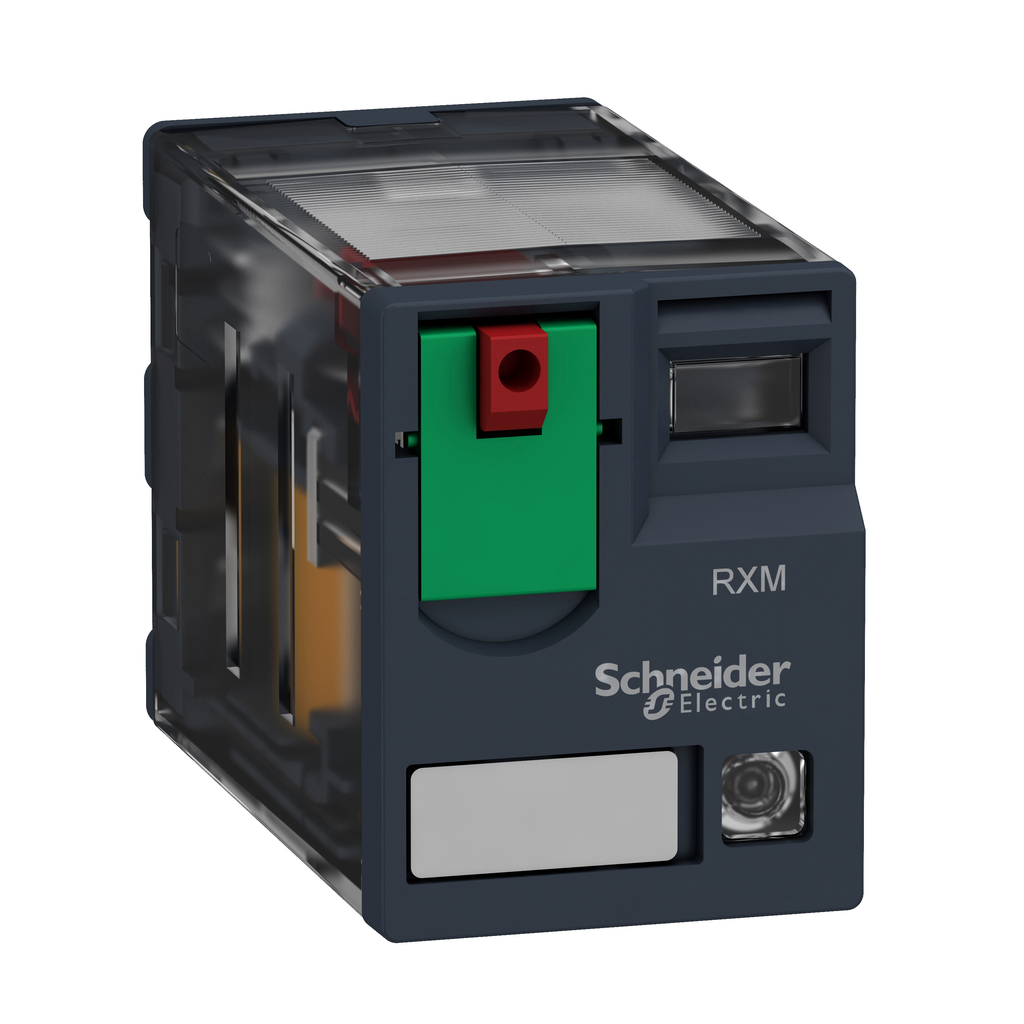

Schneider Electric RXM2AB2F7 Square D 120 VAC 12 Amp 2CO Din Rail/Panel Mount Miniature Plug-In Relay

Product Description

Schneider Electric offers the RXM2AB2F7, a 120 VAC, 12 Amp, 2CO DPDT Din Rail/Panel Mount Miniature Plug-In Relay. This relay is designed for both industrial and automation applications. The RXM series provides a versatile solution for controlling electrical circuits in various environments.

• Operational voltage: 120 V AC at 50/60 Hz
• Contact rating: 12 Amps with two changeover contacts
• Includes lockable test button for easy status checking

Product Highlights

This relay features a mechanical indicator for contact status and a green LED that shows the operational state. Its compact design fits well in control panels and automation systems.

Product Information

Standard Information

• Catalog Number: RXM2AB2F7
• Brand: Schneider Electric

Technical Specifications

• Control Voltage: 120 VAC
• Amperage: 12 Amps
• Contact Configuration: 2 C/O
• Dimensions: Height 79 mm, Width 78.45 mm
• Weight: 0.08 lb
• Operating Temperature: -40 to 55 degrees C
• Certifications: CE, CSA, UL
• Country of Origin: China
