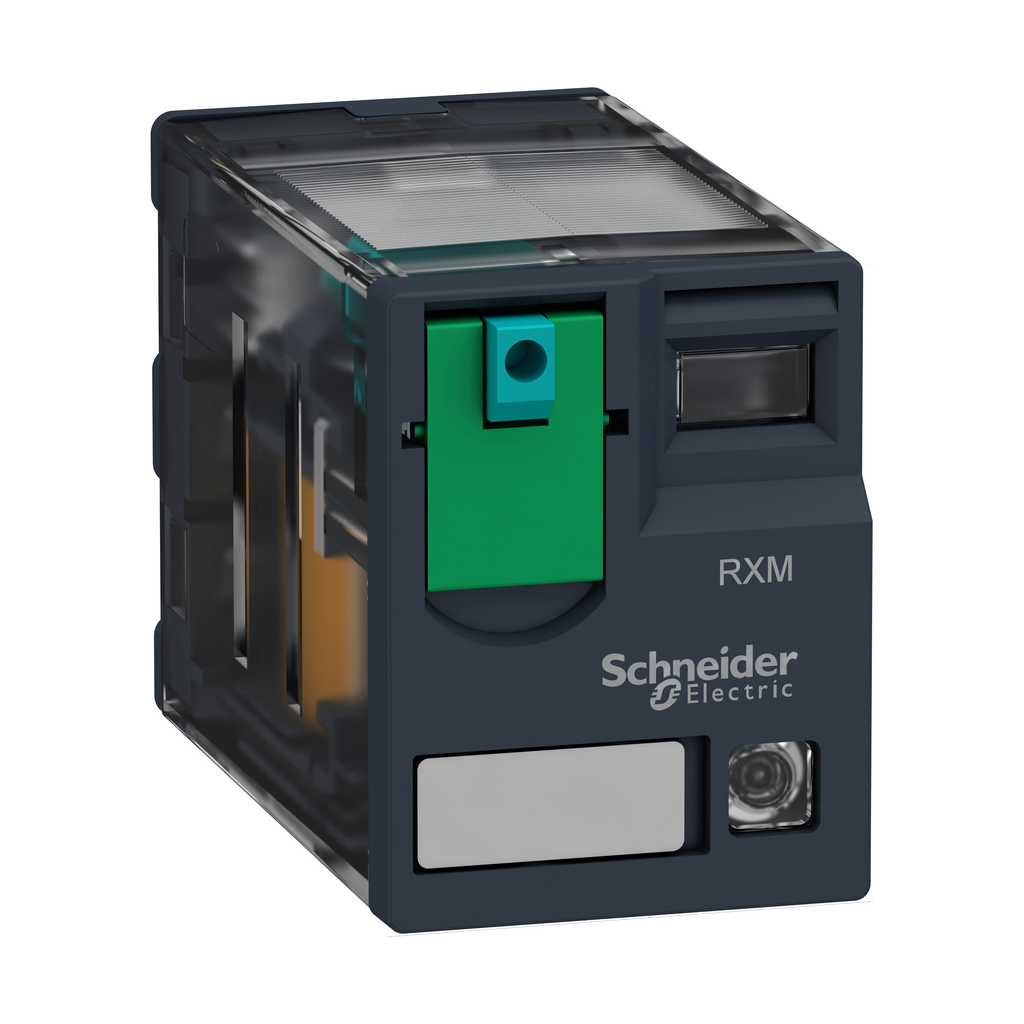

Schneider Electric RXM2AB2BD 24 VDC 12 Amp 2CO DPDT Din Rail/Panel Mount Miniature Plug-In Relay

Product Description

Schneider Electric RXM2AB2BD is a plug-in relay designed for mounting on a RXZE socket. This relay features a double contact (2 C/O) configuration and is rated for twelve amps at twenty-four volts direct current. It includes a lockable test button and a mechanical indicator to show contact status. The blue pushbutton activates the test function while the green lever locks it in place. An orange flag indicates the relay state, and a green LED provides visibility of the status. This relay is suitable for various applications including industrial machines, HVAC systems, and automation control panels.

• Two changeover contacts (2 C/O)
• Rated current: 12 Amps
• Control voltage: 24 V DC

Product Highlights

This relay meets international standards and certifications such as IEC, CE, UL, and RoHS. It should be used with a compatible RXZE socket, and protective clamps can be added for vibration resistance.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: RXM2AB2BD
• Type: Plug-in relay; Flat
• Country of Origin: China
• Weight: 0.08 lb
• Contact Rating: B300
• Operating Temperature: -40 to 55 degrees C
• Storage Temperature: -40 to 85 degrees C
• Warranty Length: 18 months
