Schneider Electric RXM2AB2B7 Miniature Plug-In Relay 24 VAC 12 Amp 2CO DPDT

Product Description

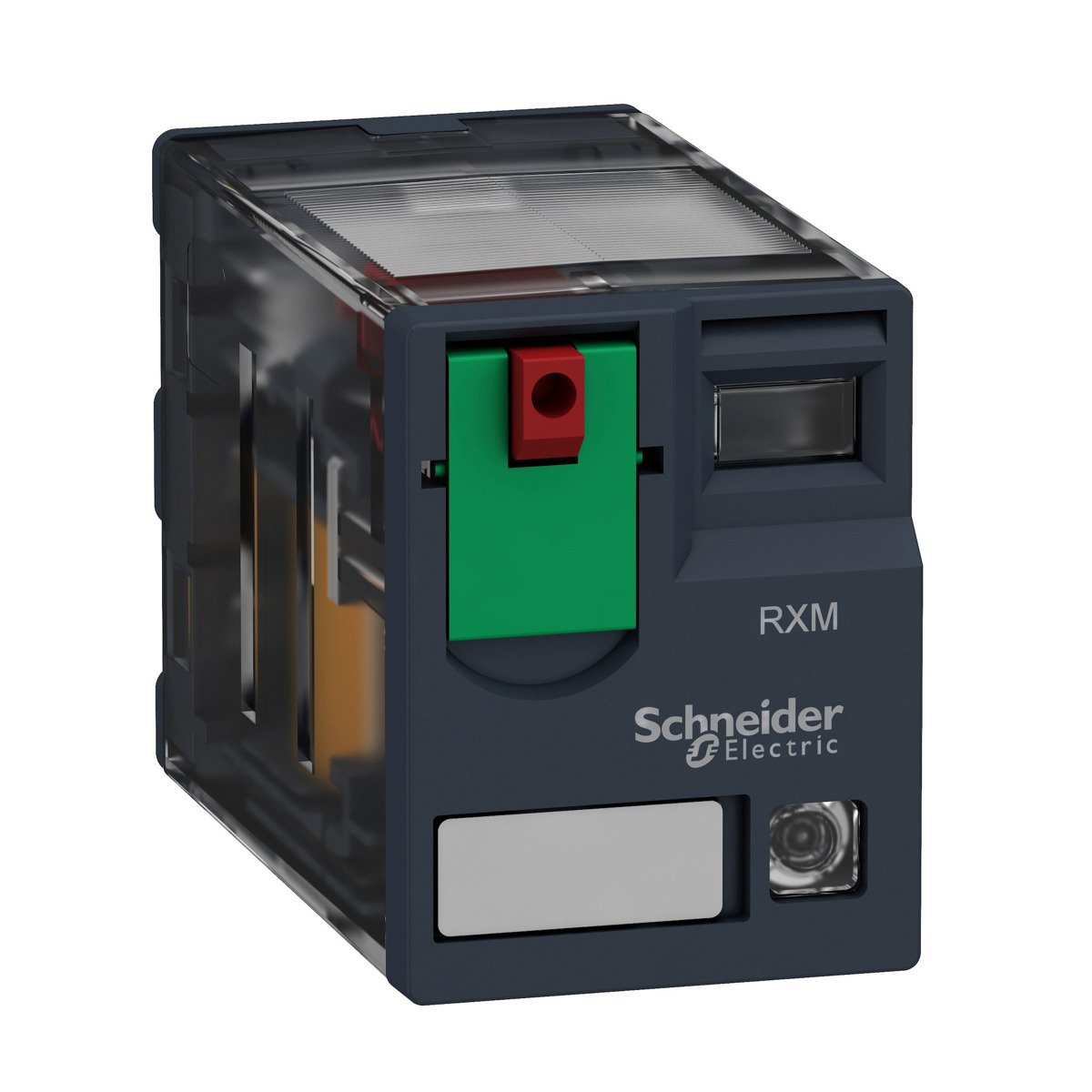

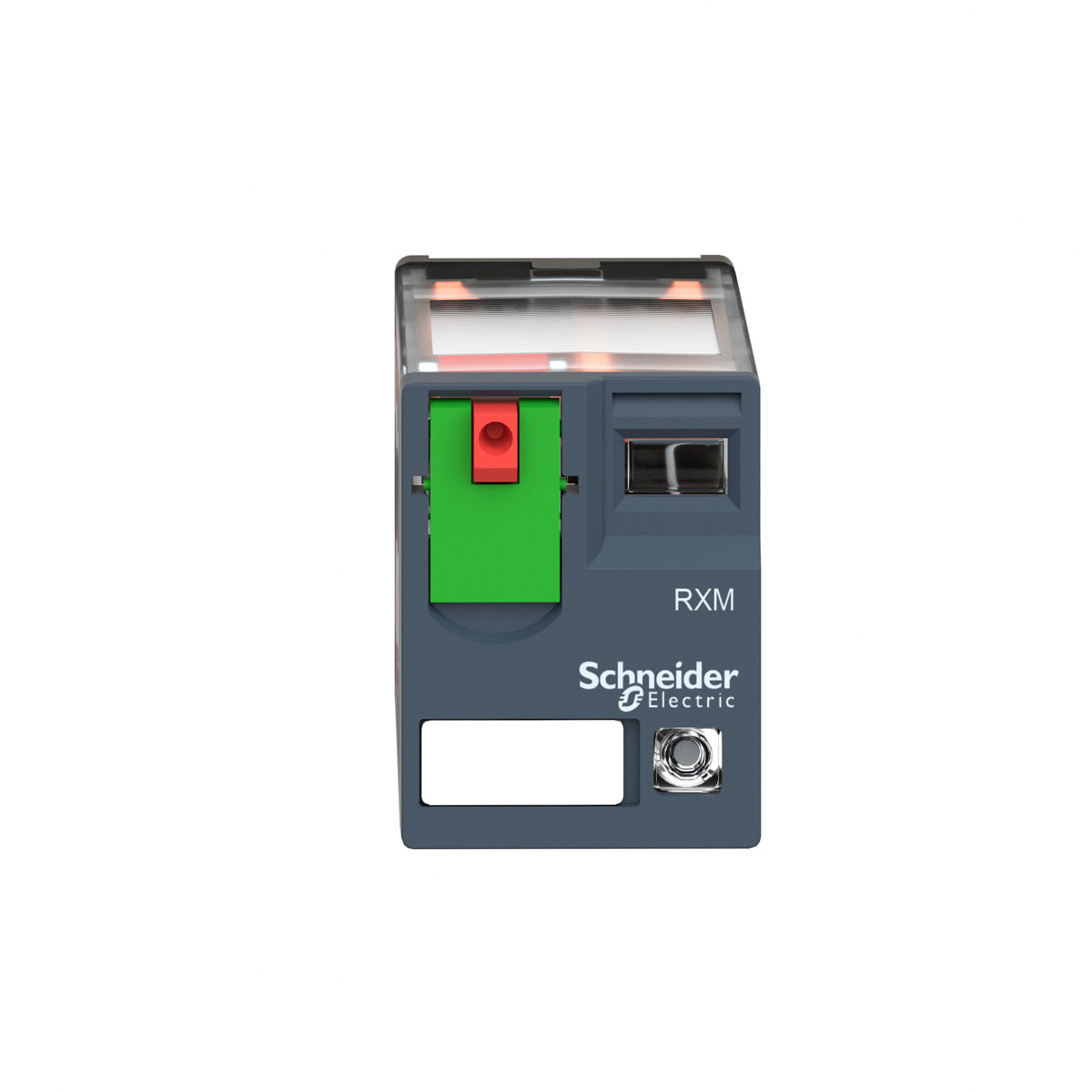

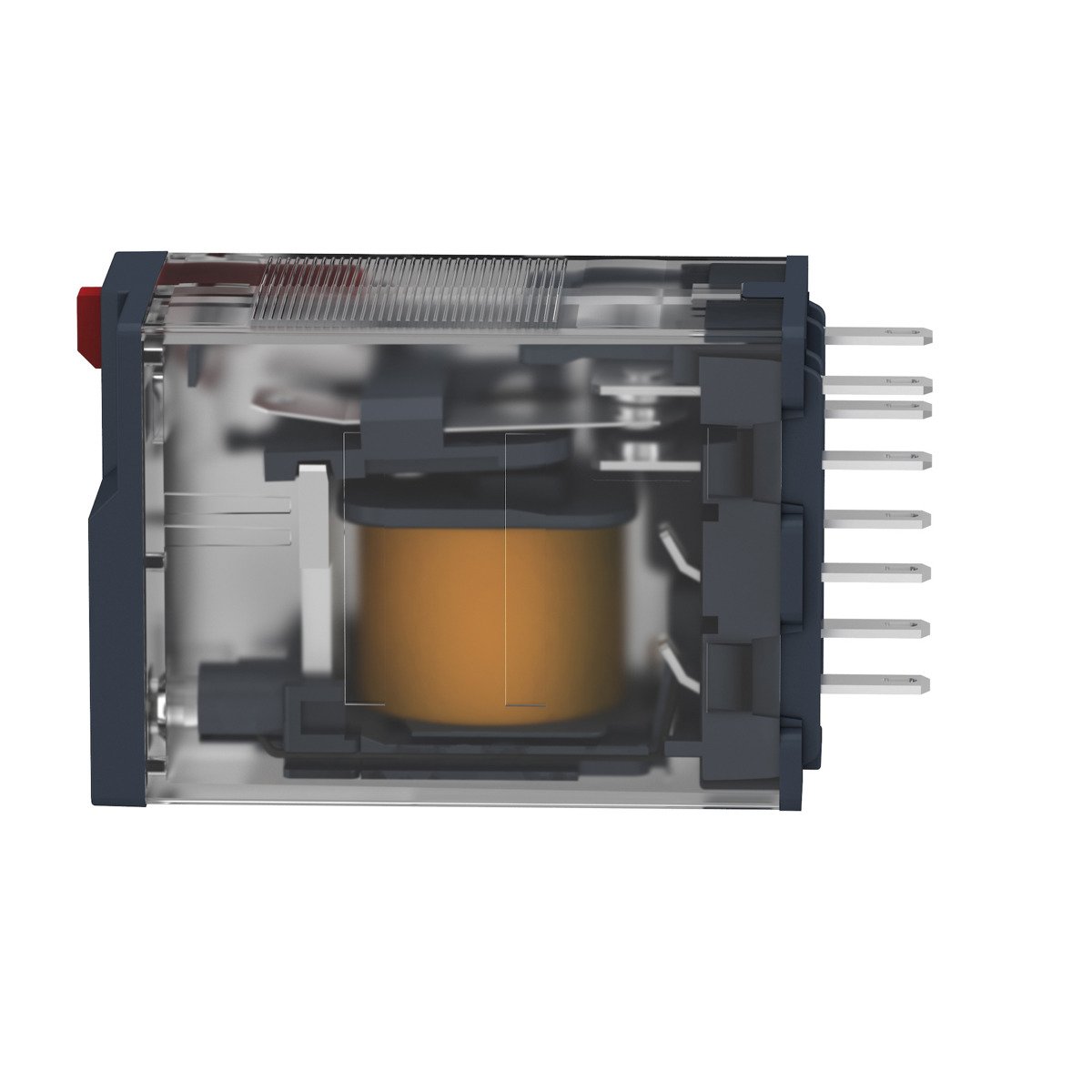

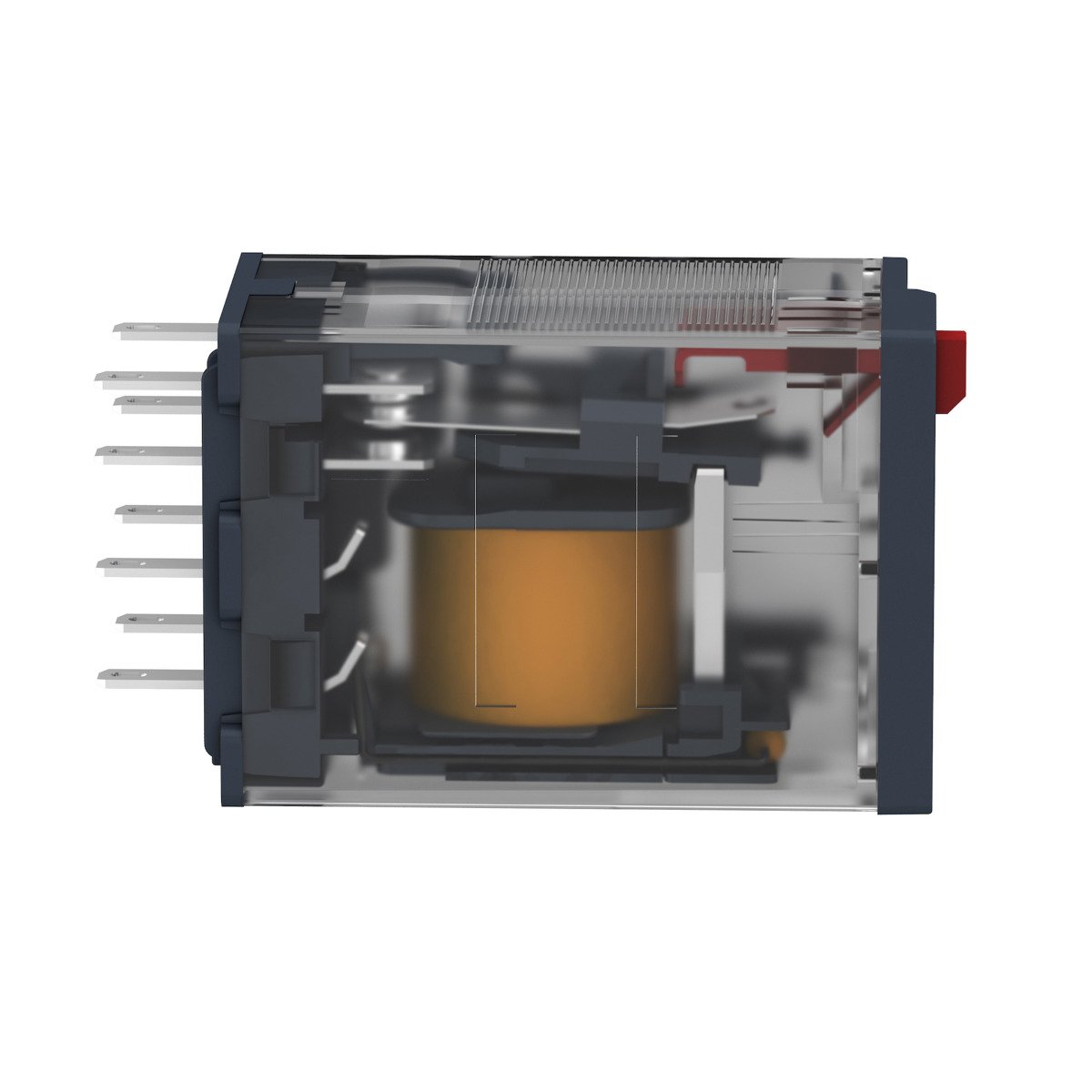

The SCHNEIDER ELECTRIC RXM2AB2B7 miniature relay is part of the Harmony Electromechanical Relays series. This plug-in relay is designed for mounting on an RXZE socket and features a 2 C/O contact configuration with a 12A current rating and a 24 V AC 50/60 Hz control circuit voltage. It includes a one-step lockable test button and a mechanical indicator for contact status.

• Plug in relay to be mounted on a RXZE socket
• 2 C/O relay with current rating of 12A
• Control circuit voltage of 24 V AC 50/60 Hz

Product Highlights

Features include a lockable test button, mechanical contact status indicator, and green LED. Conforms to IEC, CE, UL, CSA, EAC, Lloyd's, RoHS, and REACH standards.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: RXM2AB2B7
• Country of Origin: Germany

Technical Specifications

• Type: Plug-in relay;Flat
• Brand: Schneider Electric
• Amperage: 12 Amp
• Standard: CSA C22.2 No 14,IEC 61810-1,UL 508
• Enclosure: IP 40 CONFORMING TO IEC/EN 60529
• Sub Brand: RXM
• Resistance: 180 OHMS
• Control Type: Lockable test button
• TC Connection: FLAT/SPADE (FASTON TYPE)
• Certifications: CE,CSA,GOST,IECEE CB Scheme,Lloyd's,UL
• Contact Rating: B300
• Contact Material: Silver Alloy
• Operating Cycles: 1200,18000
• Power Consumption: 1.2 VA
• Line Rated Current: 12 A
• Storage Temperature: -40-85 degrees C
• Contact Configuration: 2 C/O
• Operating Temperature: -40-55 degrees C
• Relay Mounting Style: Socket
• Electrical Connection Type: Tab

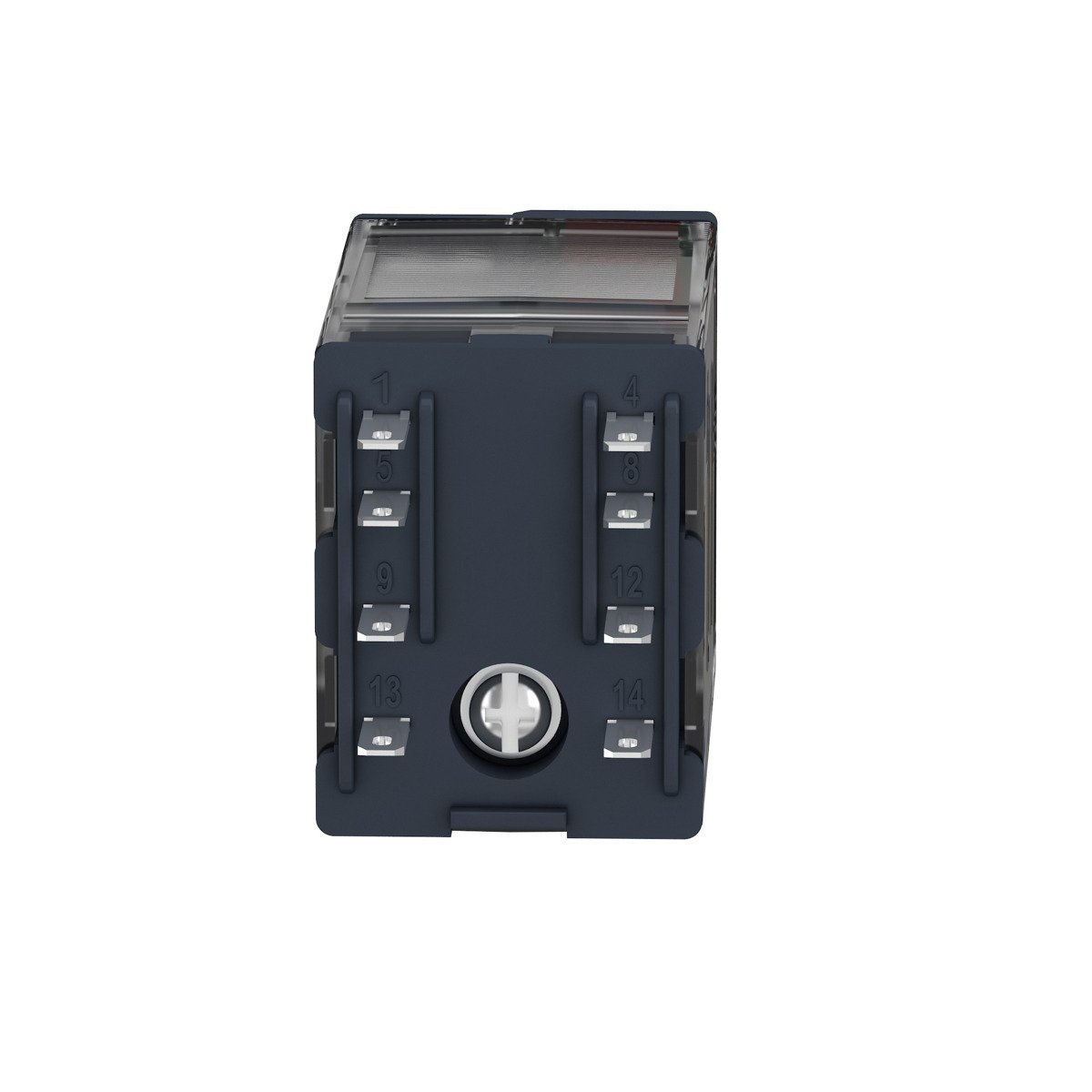

• Number of Pins/Terminals: 8
• Socket Code: K
• Current Rating: 12 A
• Coil Voltage: 24V AC
• Contact Form: 2PDT
• Contact Rating (AC): 12 A @ 250V
• Contact Rating (DC): 12 A @ 28V
• Motor Rated: Yes
• Electrical Operating Durability: 100,000
• Mechanical Operating Durability: 10,000,000
• Dielectric Strength: 1,300V AC Between Contacts with Micro Disconnection; 2,000V AC Between Coil and Contact with Basic Insulation; 2,000V AC Between Poles with Basic Insulation
• Sealing: Enclosed
• Coil Voltage (Nominal@60Hz): 24V AC
• Hz: 50/60
• Height: 1.81 In
• Width: 0.83 In
• Features: LED Indicator, Push to Test Button, Manual Hold
