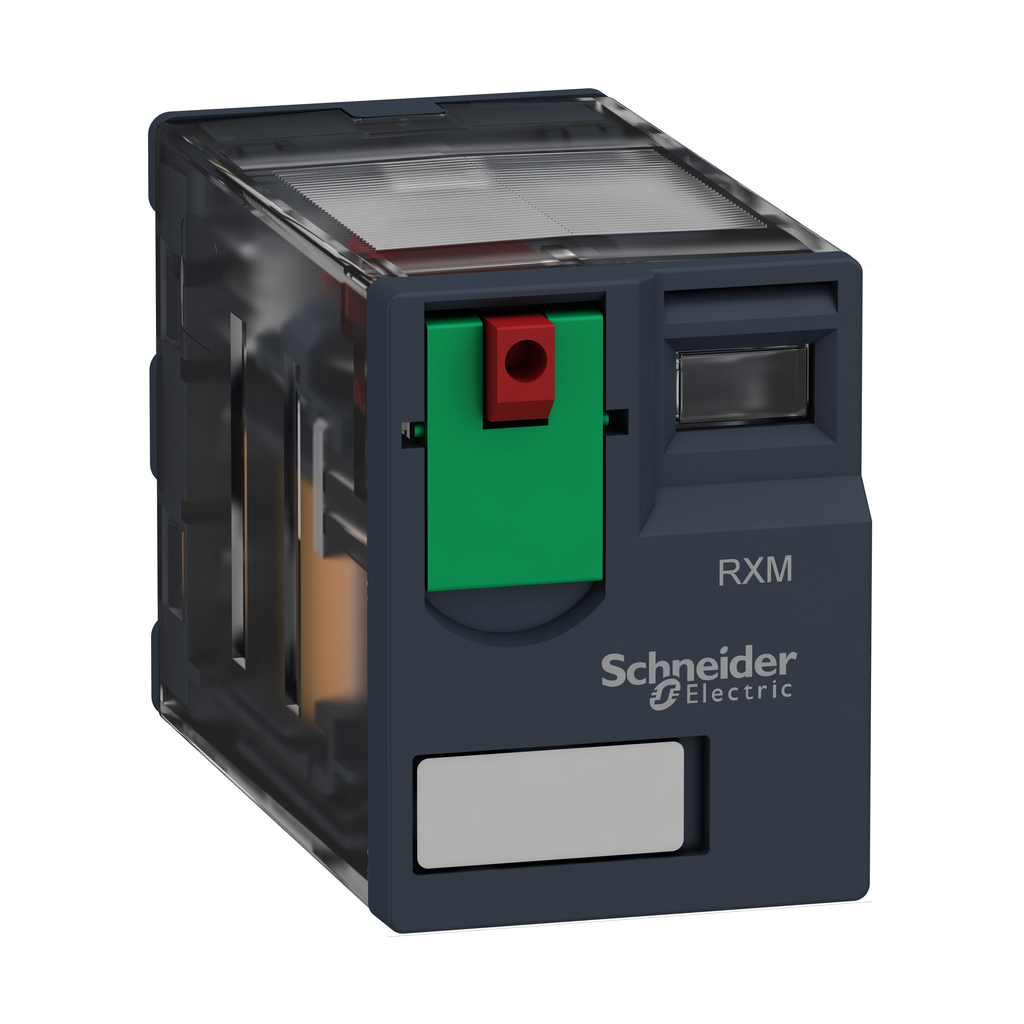

Schneider Electric RXM2AB1B7 Square D 24 VAC 12 Amp 2CO DPDT Din Rail/Panel Mount Miniature Plug-In Relay

Product Description

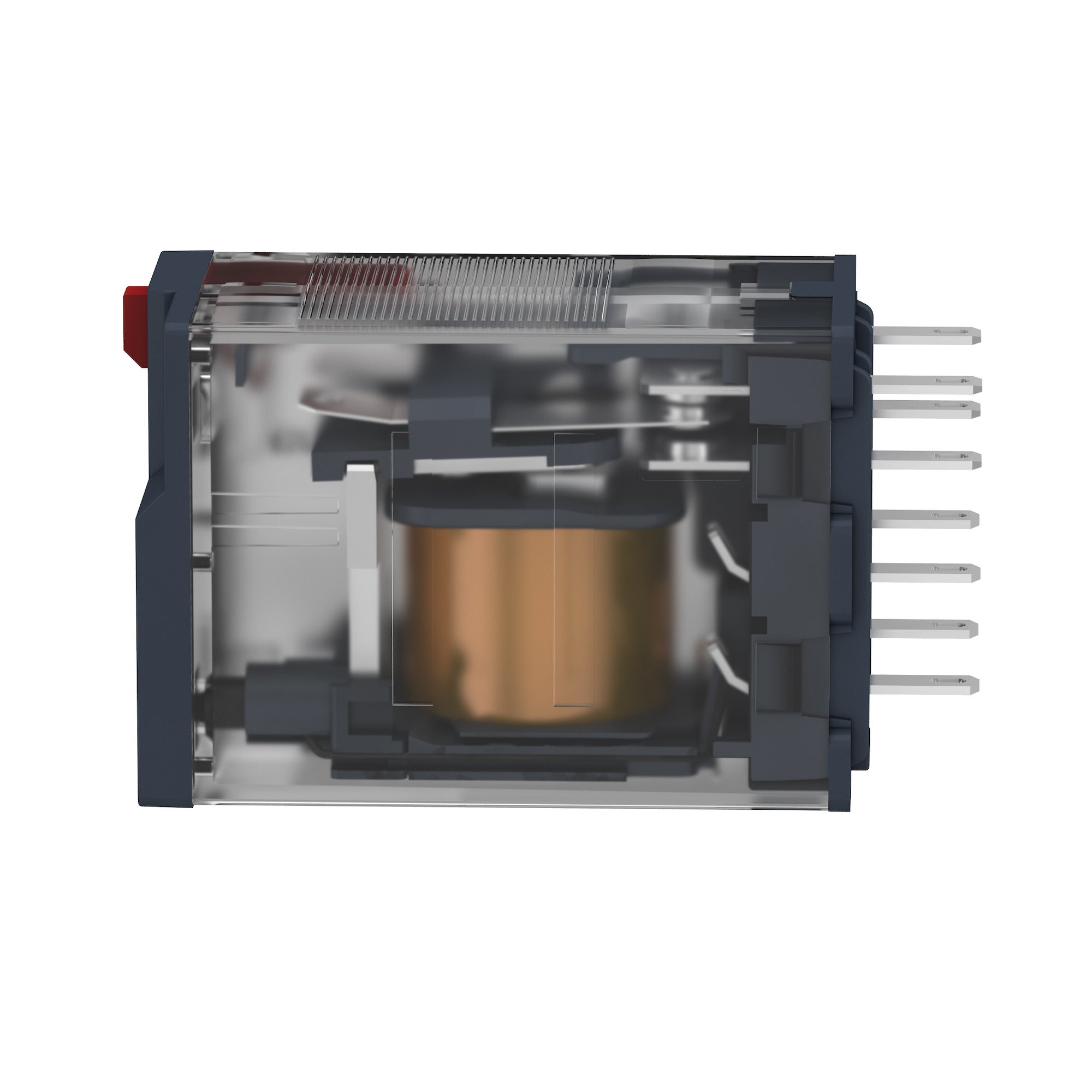

The Schneider Electric RXM2AB1B7 is a square D miniature relay. It is designed for mounting on a RXZE socket. This product features a two changeover (C/O) configuration with a current rating of twelve amps. It operates at a control circuit voltage of twenty-four volts alternating current at fifty or sixty hertz. The relay includes a lockable test button and a mechanical indicator to show contact status.

• Two changeover contacts (C/O) with twelve amp rating
• Control circuit voltage of twenty-four volts AC
• Lockable test button with mechanical contact status indicator

Product Highlights

The RXM2AB1B7 relay supports both simple and complex automation systems. Its robust design makes it suitable for various applications, including industrial machinery, HVAC systems, and automation control panels.

Product Information

Standard Information

• Catalog Number: RXM2AB1B7
• Brand: Schneider Electric

Technical Specifications

• Type: Plug-in relay
• Amperage: 12 Amp
• Weight: 0.08 lb
• Contact Configuration: 2 C/O
• Country of Origin: China
• Operating Temperature: -40 to 55 degrees Celsius
• Storage Temperature: -40 to 85 degrees Celsius
• Certifications: CE, CSA, UL, RoHS
