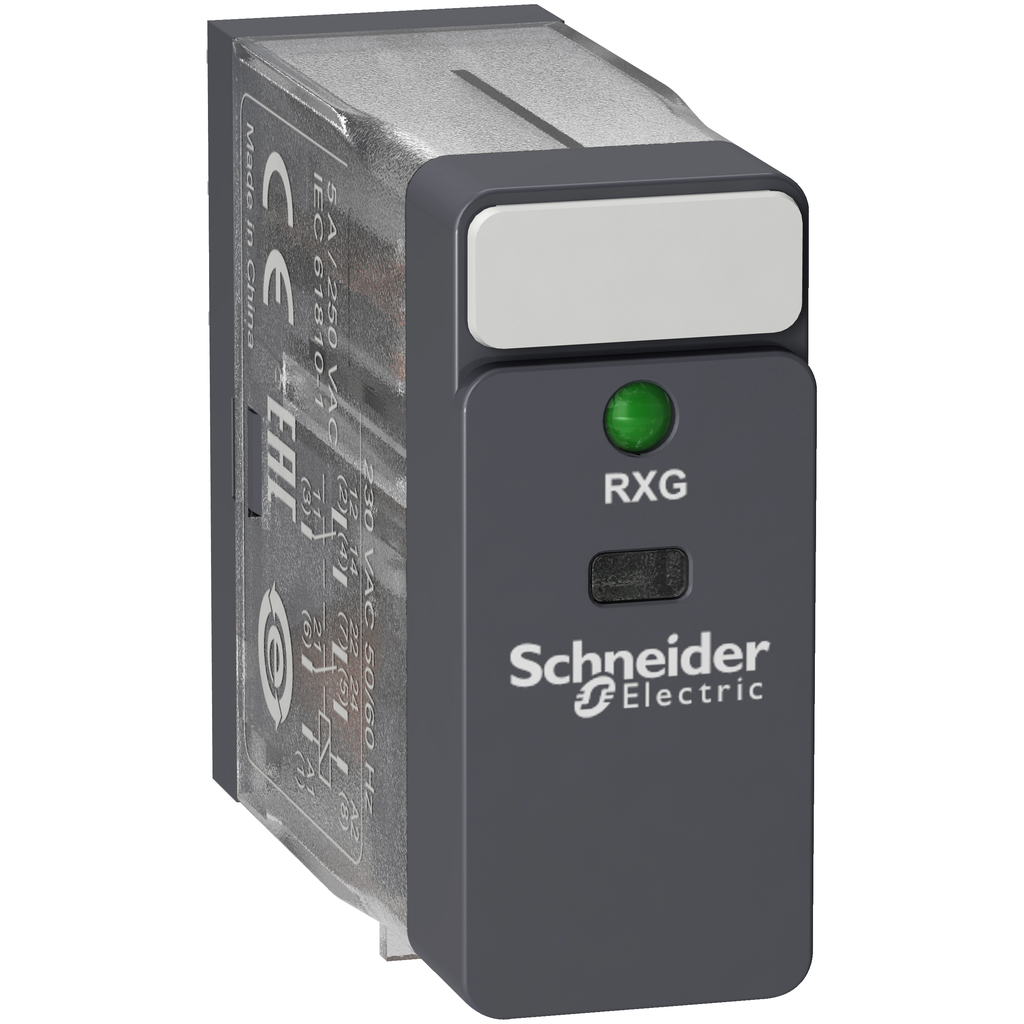

Schneider Electric RXG23F7 SQD RXG23F7 Interface Plug In Relay 120V AC

Product Description

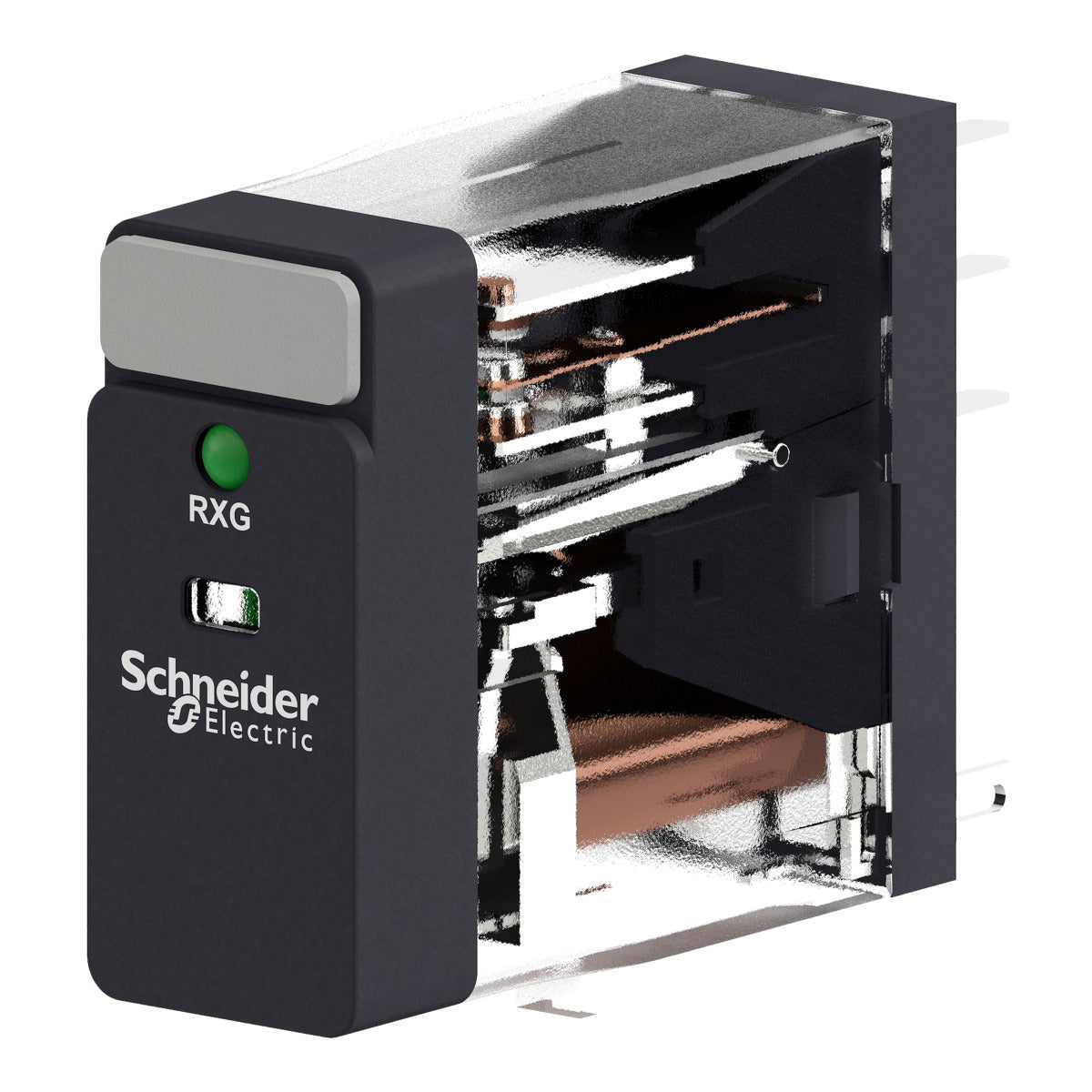

Schneider Electric RXG23F7 is a plug-in relay designed for effective control in automation systems. The relay operates at a coil control voltage of 120V AC and features two changeover contacts (DPDT) rated at five Amps. This compact relay is suitable for high-rated current applications while providing flexibility with multiple contact configurations. The relay includes an LED indicator for status signaling, ensuring visibility both day and night.

• Coil control voltage: 120V AC
• Contact configuration: 2 C/O (changeover)
• Operating cycles: Up to 1800 cycles per hour under load

Product Highlights

This relay is ideal for use in hard-wired logic applications and complements programmable logic controllers (PLCs). It supports machine reliability and is suitable for various industrial automation needs.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: RXG23F7

Technical Specifications

• Weight: 0.04 lb
• Amperage Rating: 5 A at 250 V AC
• Operating Temperature Range: -40 to 70 degrees Celsius
• Contact Material: Silver Alloy
• Dielectric Strength: 1000 V AC between contacts
• Country of Origin: United States
• Certifications: CE, CSA, UL
• Maximum Load Current: 5 A at 250 V AC
