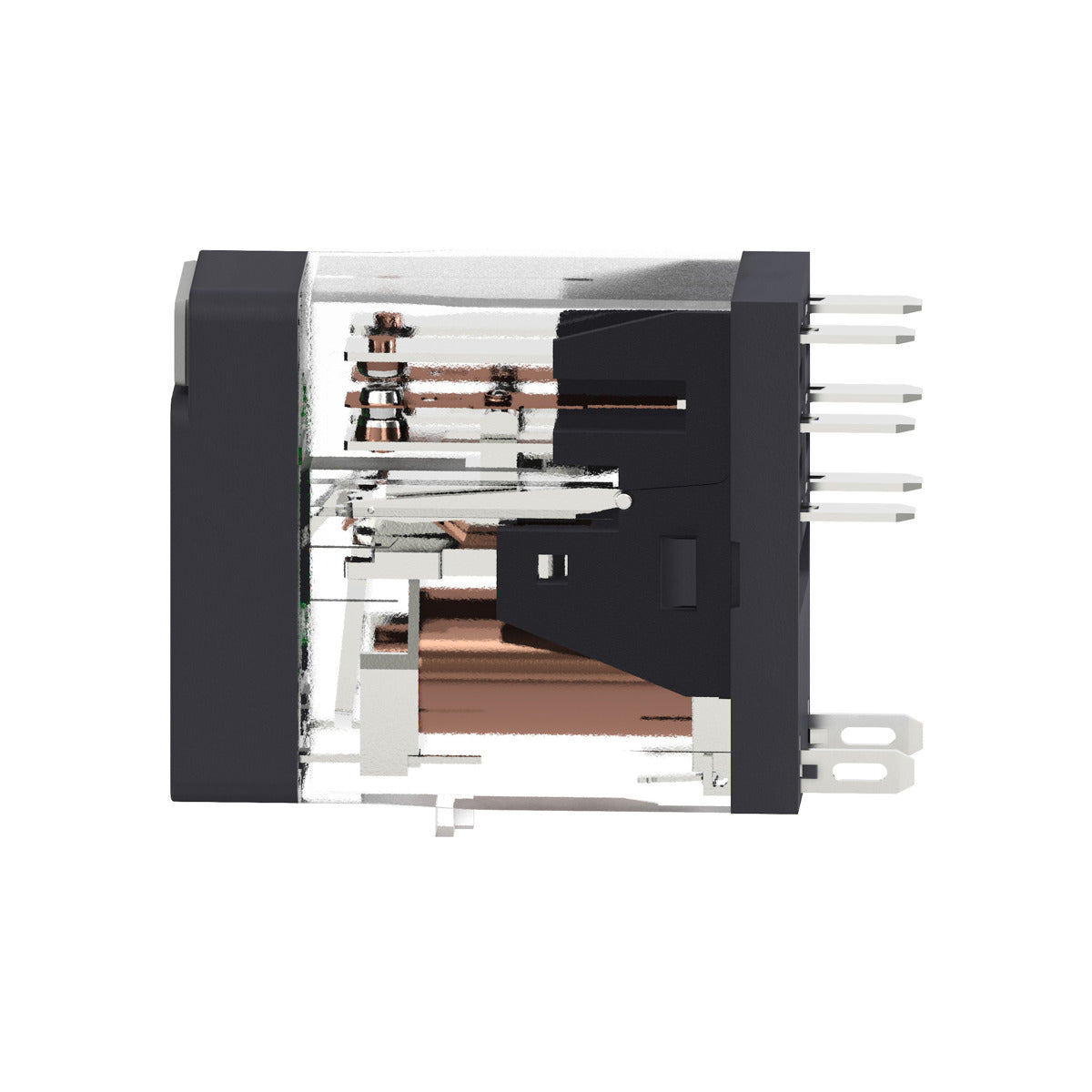

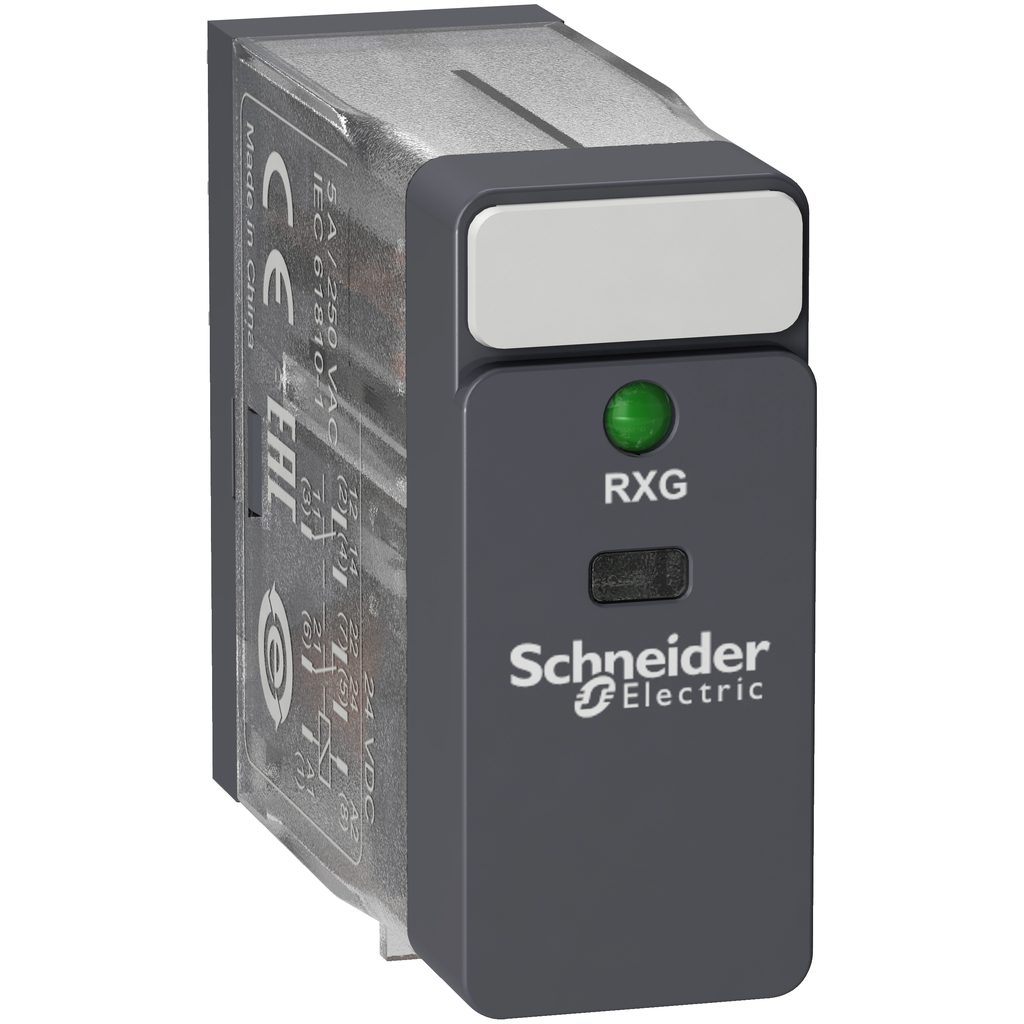

Schneider Electric RXG23BD SQD RXG23BD Interface Plug In Relay 24V DC

Product Description

This Schneider Electric RXG23BD interface plug-in relay features a coil control voltage of twenty-four volts DC and includes two changeover contacts, providing double pole double throw functionality with a five amp rating. This relay offers a broad selection of contact configurations suitable for high-rated current applications while maintaining a compact design. An integrated LED indicator facilitates easy status checking.

The faston pin terminal ensures quick and secure mounting. This relay’s design aims to optimize enclosure space and enhance machine reliability, allowing for versatile installation options. It is well-suited for hard-wired logical automated systems and complements industrial programmable logic controllers. The LED status display ensures visibility both day and night, making it an effective choice for various automation tasks.

• Coil control voltage: twenty-four volts DC
• Two double pole double throw (DPDT) contacts

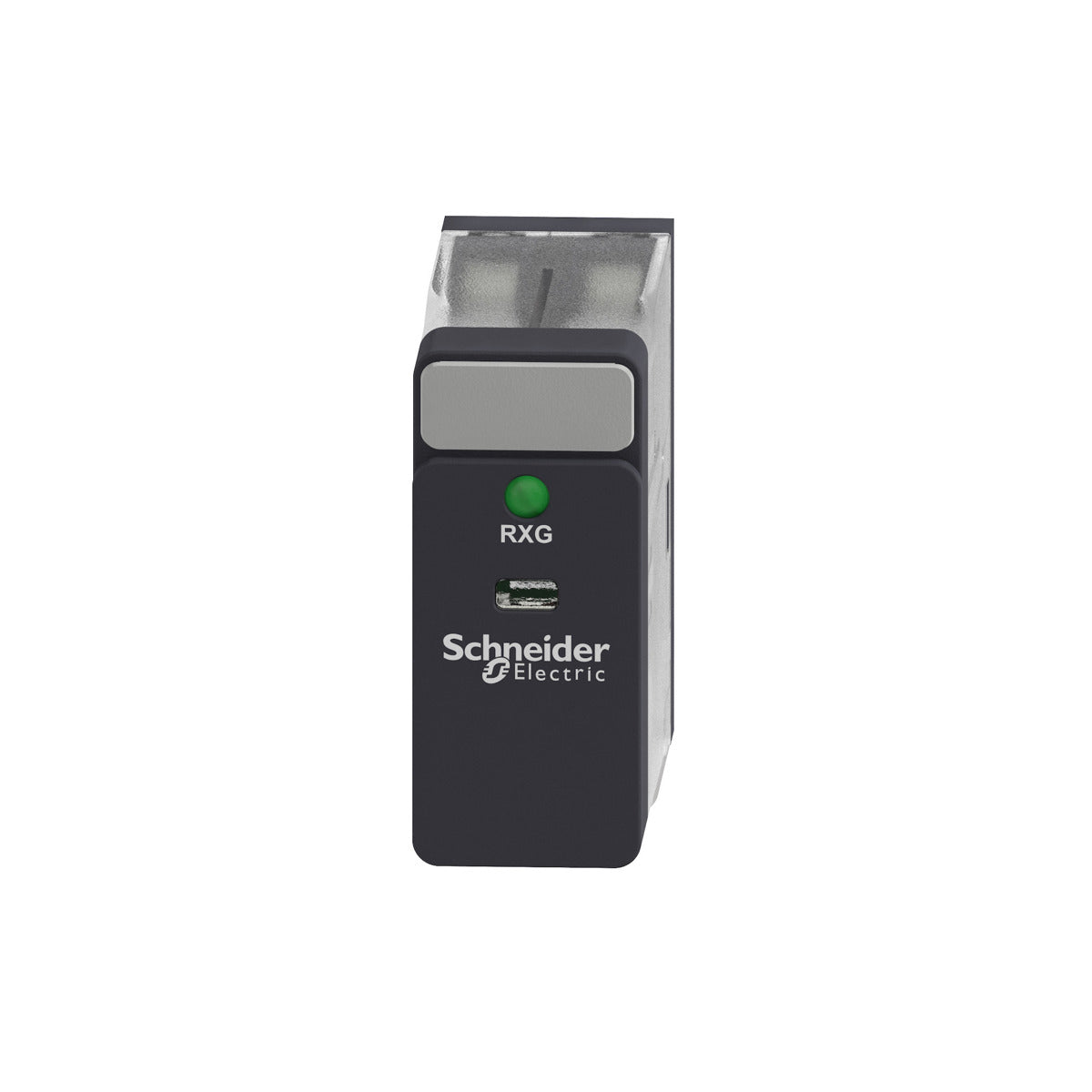

• LED status display for clear operation indication

Product Highlights

Ideal for controlling and automating processes in industrial settings.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: RXG23BD
• Coil Voltage: 24V DC
• Amperage Rating: 5 Amps (250V AC, 30V DC)
• Contact Configuration: 2 C/O
• Operating Temperature: -40 to 70 degrees C
• Dielectric Strength: 1000V AC between contacts; 5000V AC between coil and contacts
• Operating Cycles: <= 1800 cycles/hour under load; <= 18000 cycles/hour no-load
• Certifications: CE, CSA, UL
