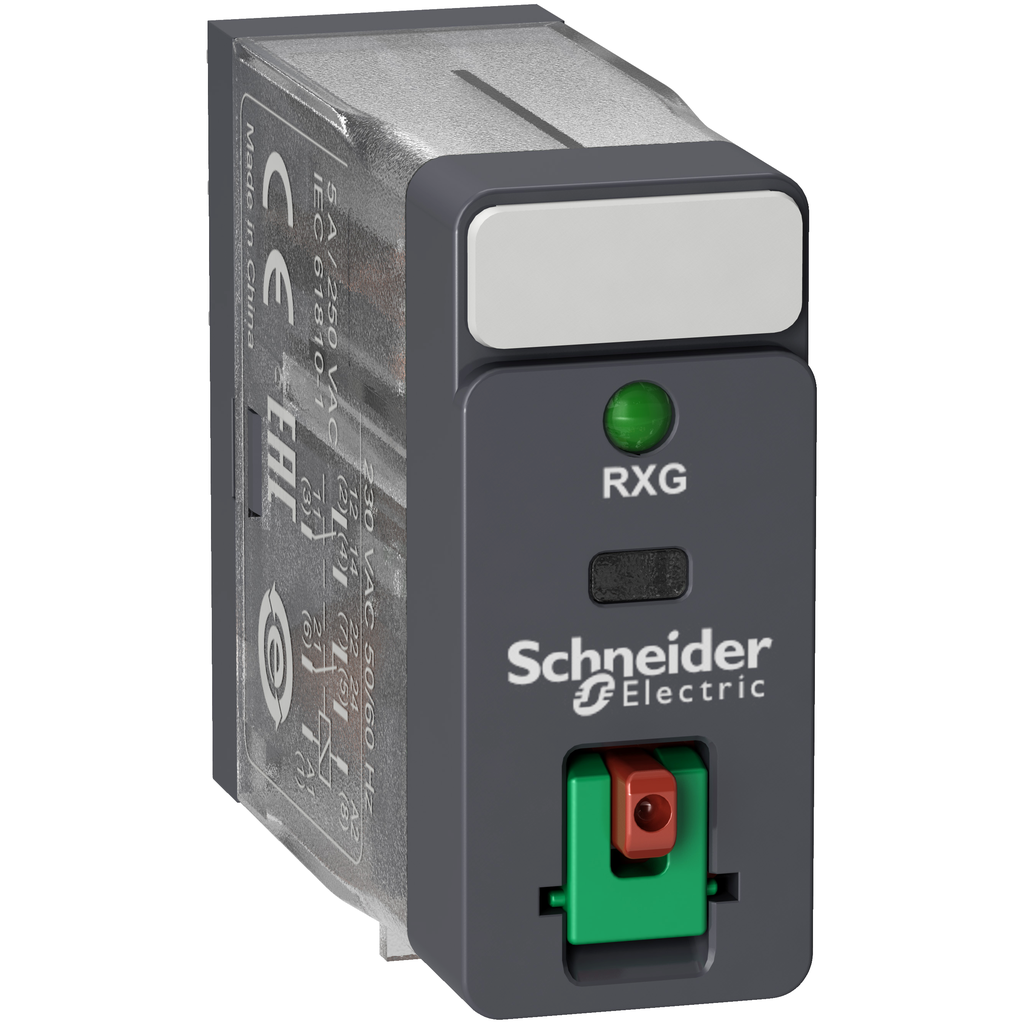

Schneider Electric RXG22B7 SQD RXG22B7 interface plug in relay 24V AC (1 each) Replacement MPN

Product Description

Schneider Electric RXG22B7 is a plug-in relay designed for control systems. This relay operates at a coil control voltage of twenty-four volts AC and features two changeover contacts (DPDT) rated at five amps. Its space-saving design allows for a variety of contact configurations while maintaining high rated current capability. Users can easily mount this relay in numerous locations, enhancing the reliability of machines and electrical systems.

• Coil Control Voltage: 24V AC
• Contact Rating: 5A DPDT
• Lockable test button and LED indicator for user convenience

Product Highlights

The RXG22B7 relay is compatible with industrial programmable logic controllers (PLCs) and is geared for hard-wired logic automated systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: RXG22B7
• Country of Origin: China
• Contact Configuration: 2 C/O
• Operating Cycles: <= 1800 cycles/hour under load; <= 18000 cycles/hour no-load
• Resistance: 260 Ohm +/- 10%
• Standard: CSA C22.2 No 14, IEC 61810-1, UL 508
• Power Consumption: 0.82 VA
• Dielectric Strength: 1000 V AC between contacts; 5000 V AC between coil and contact
