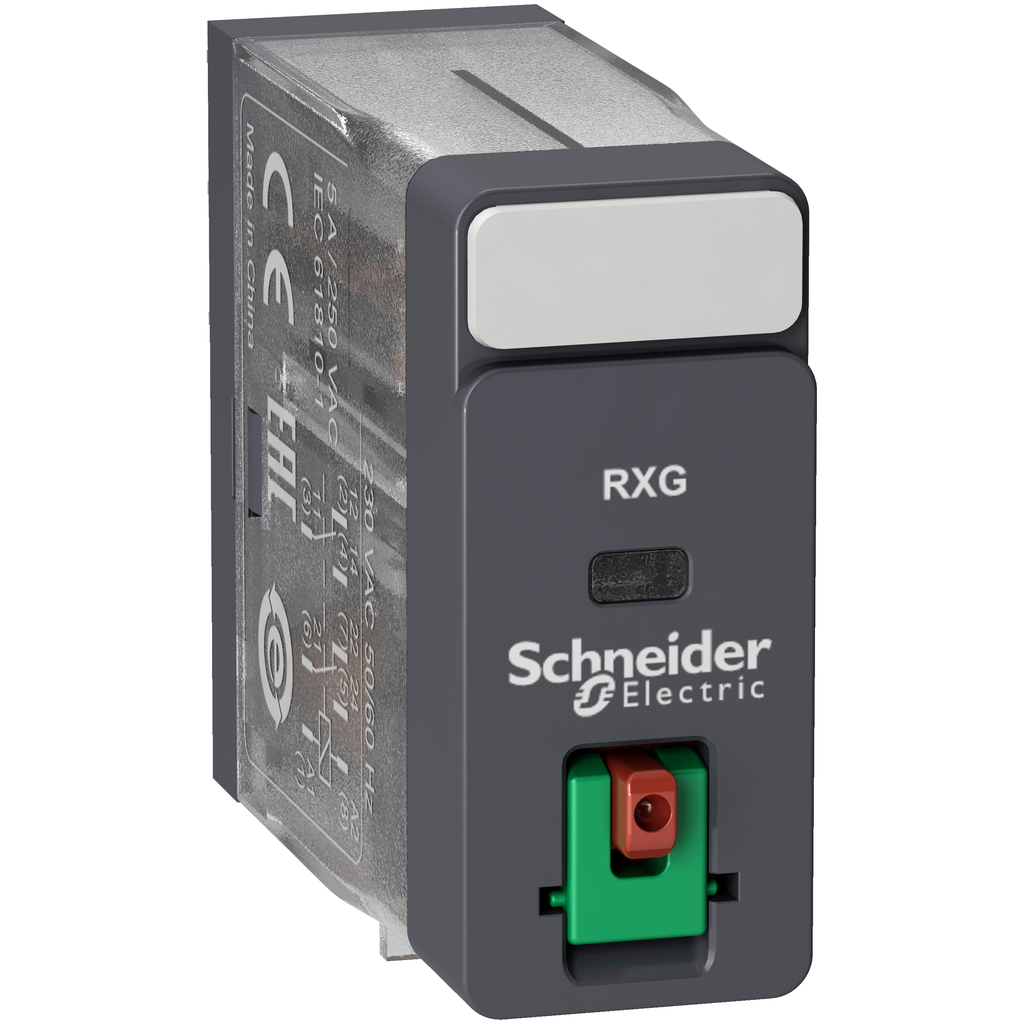

Schneider Electric RXG21F7 SQD RXG21F7 Interface Plug In Relay 120V AC

Product Description

Schneider Electric offers the RXG21F7 interface plug-in relay. This relay operates with a coil control voltage of one hundred twenty volts AC and features two changeover contacts, configured as DPDT (double pole double throw). It is rated at five amps, making it suitable for various applications.

• Coil control voltage: 120V AC
• Two changeover contacts rated at 5A
• Lockable test button enhances usability

Product Highlights

This relay allows for a variety of configurations while maintaining a compact design. Its faston pin terminal ensures quick and secure mounting.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: RXG21F7

Technical Specifications

• Amperage: 5A, 250V AC; 5A, 30V DC
• Weight: 0.04 lb
• Operating Temperature: -40 to 70 degrees C
• Dielectric Strength: 1000V AC between contacts
• Storage Temperature: -40 to 85 degrees C
• Contact Material: Silver Alloy
• Certifications: CE, CSA, UL
• Operating Cycles: <= 1800 cycles/hour under load
