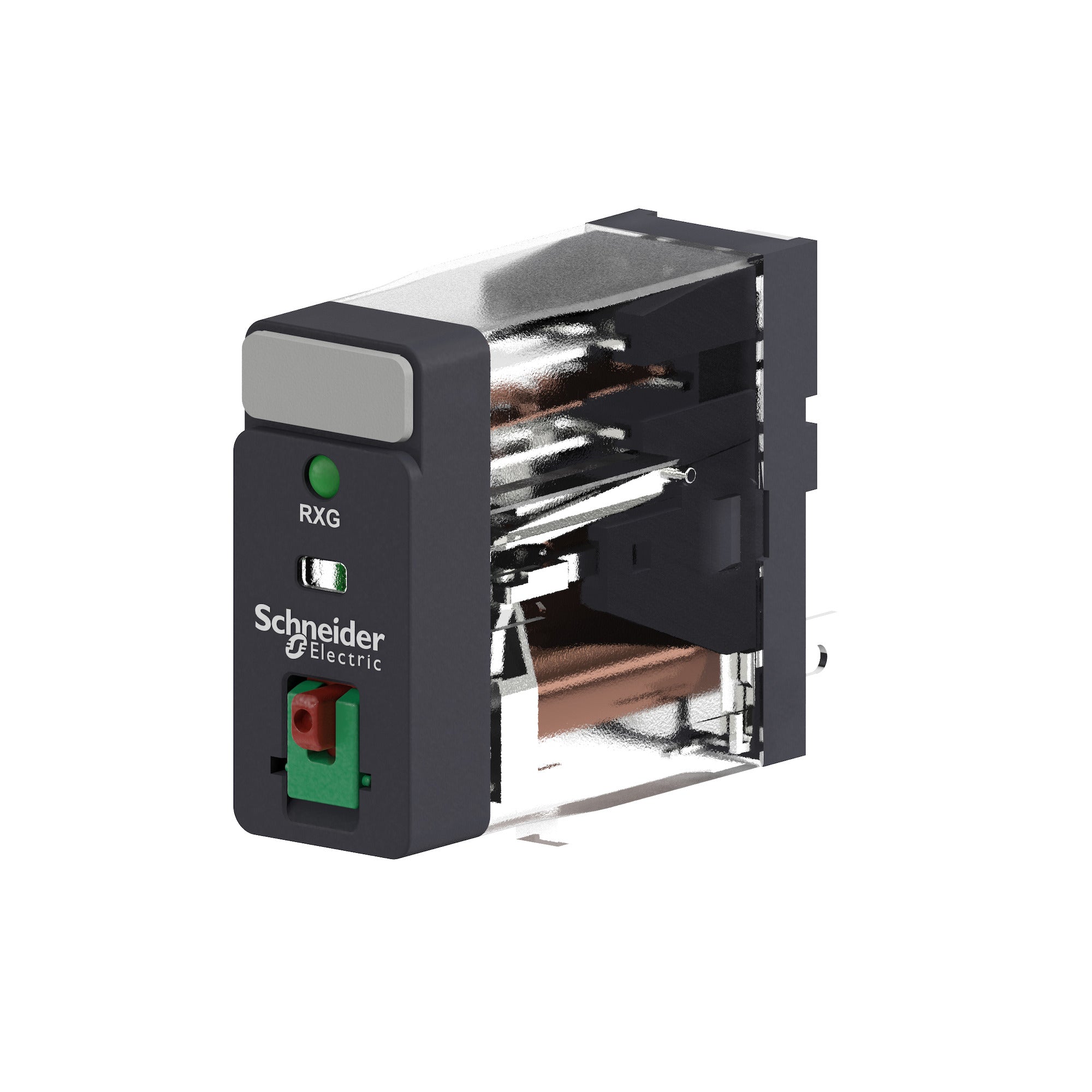

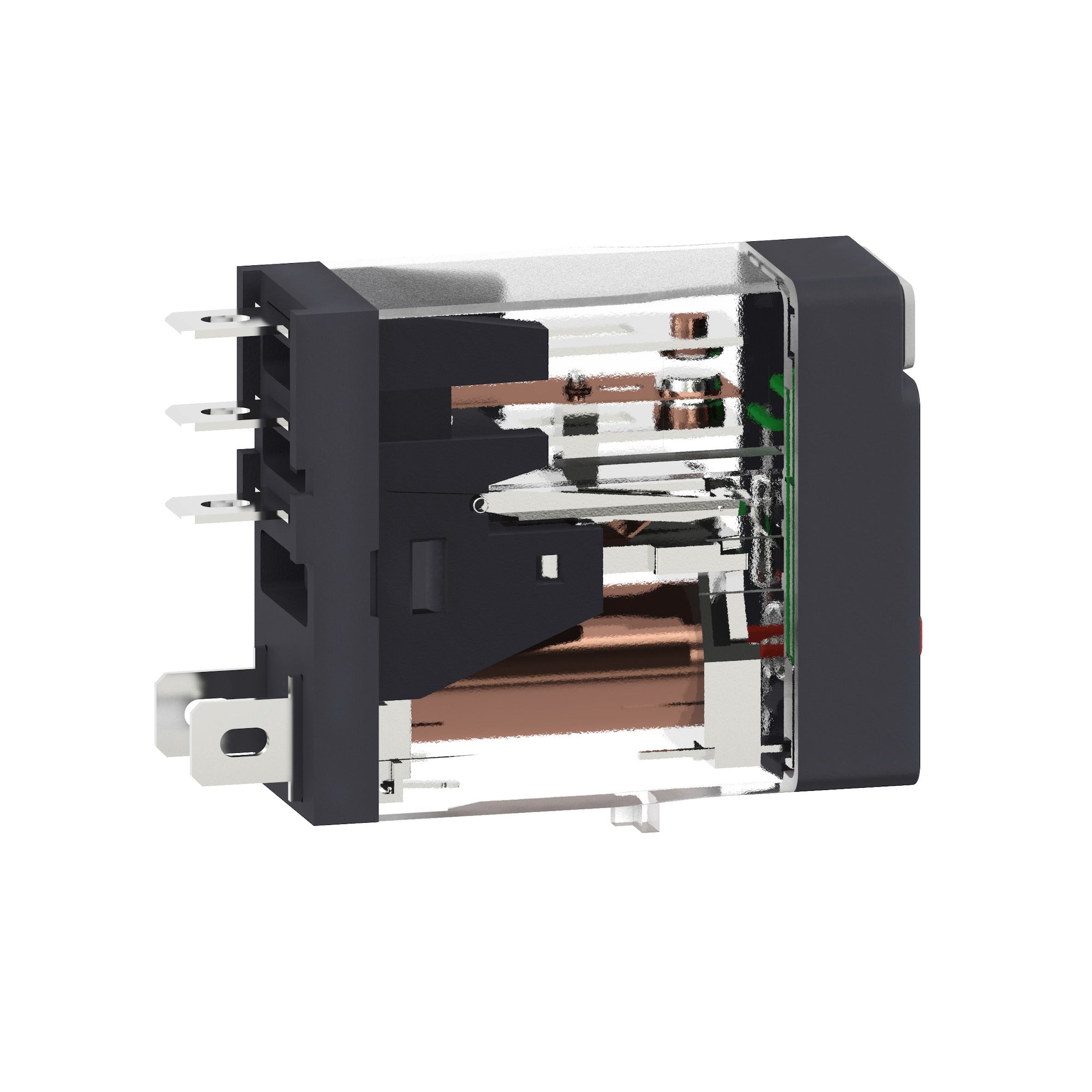

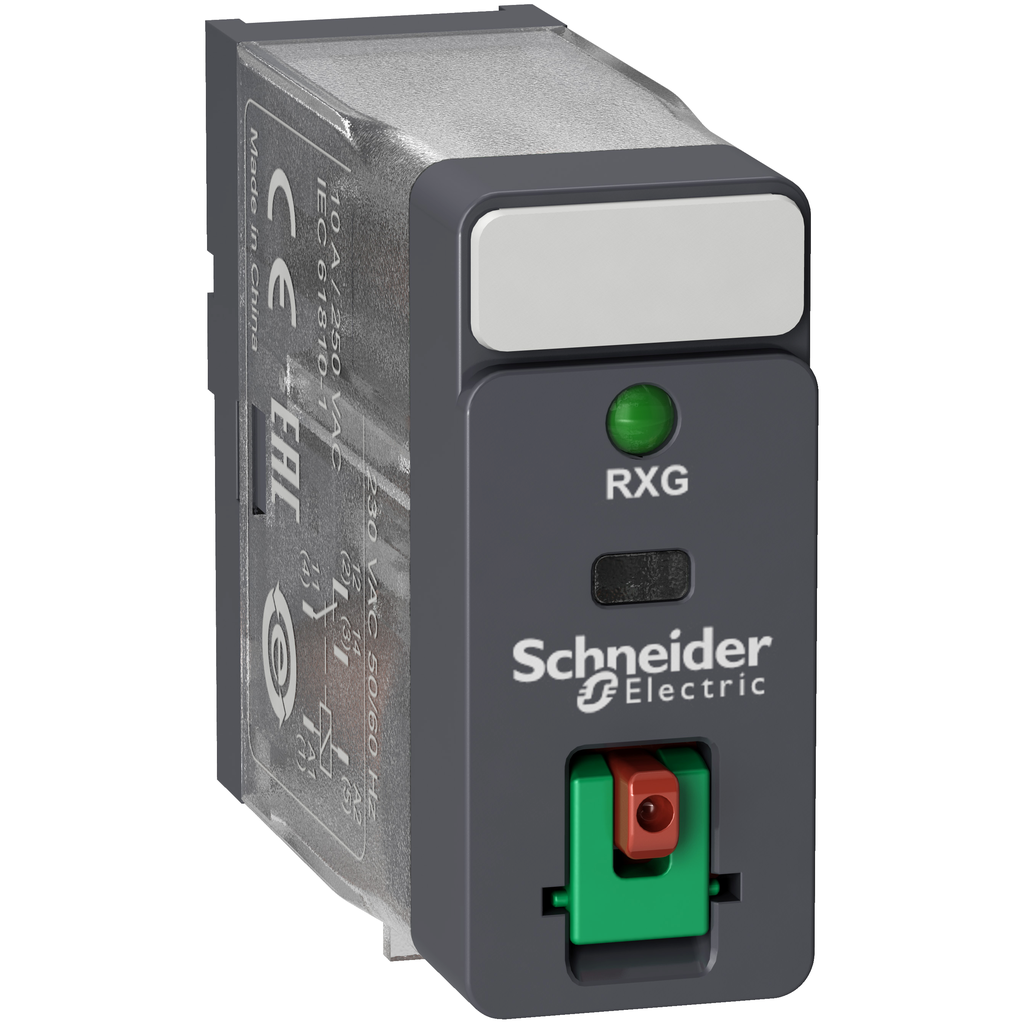

Schneider Electric RXG12F7 SQD RXG12F7 interface plug in relay 120V AC

Product Description

The Schneider Electric RXG12F7 is a plug-in relay with a coil control voltage of one hundred twenty volts AC and features one changeover contact (SPDT) rated for ten amps. The design supports a variety of contact configurations suitable for high current applications. This unit includes a lockable test button and an LED indicator for operational feedback. Measuring sixteen millimeters in width, it can fit into tight spaces, promoting better enclosure designs and machine reliability.

• Coil control voltage: 120V AC
• Changeover contact configuration: SPDT, rated for 10A
• LED indicator and lockable test button

Product Highlights

This interface relay is designed for use in automated systems that require reliable control integration with industrial programmable logic controllers (PLCs). The LED status display allows for visibility in various lighting conditions, enhancing functionality.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: RXG12F7
• Weight: 0.04 lb
• Standard Compliance: CSA C22.2 No 14, IEC 61810-1, UL 508
• Operating Temperature: -40 to 70 degrees C
• Operating Cycles: <= 1800 cycles/hour under load; <= 18000 cycles/hour no-load
• Resistance: 6300 Ohm +/- 10 %
• Certification: CE, CSA, DNV-GL, EAC, UL
• Warranty Length: 18 months
• Country of Origin: China
