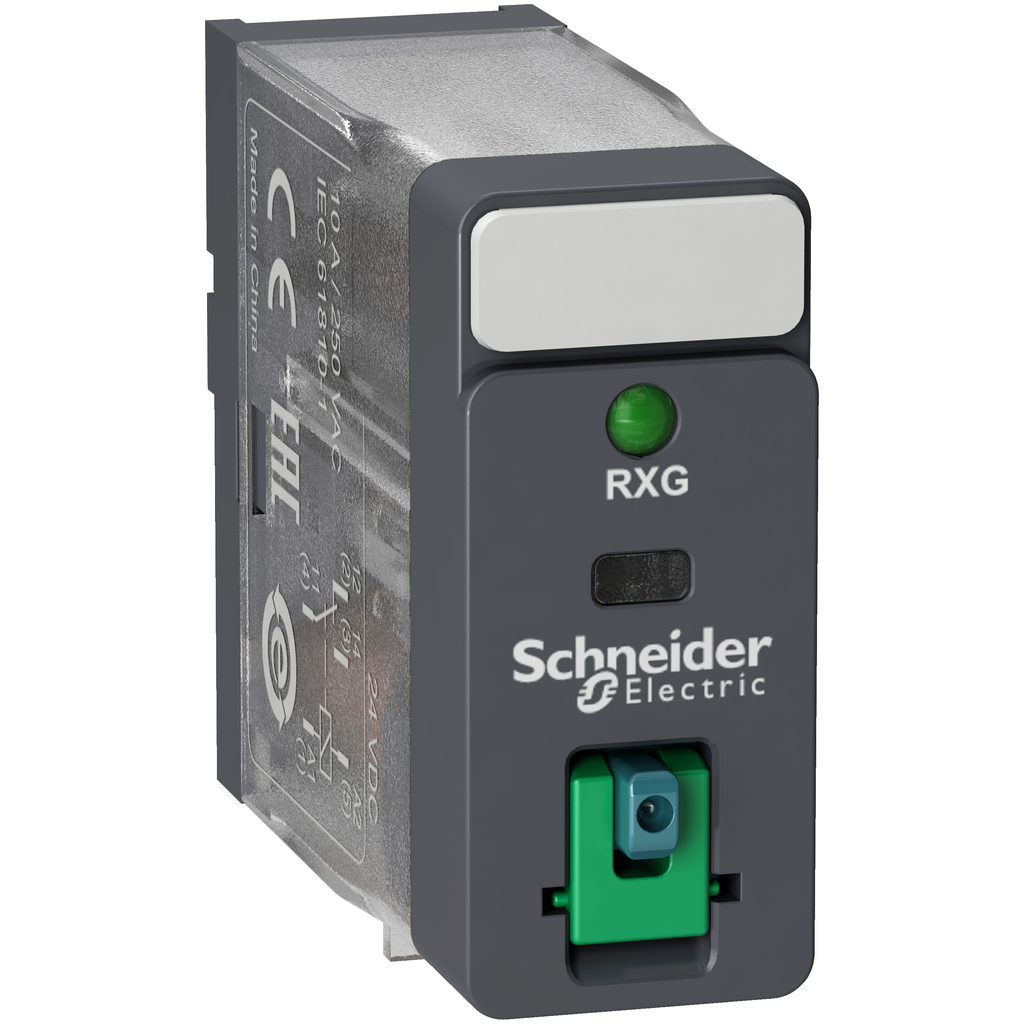

Schneider Electric RXG12BD SQD RXG12BD interface plug in relay 24V DC

Product Description

The Schneider Electric RXG12BD is an interface plug-in relay designed for use in control and automation systems. It operates at a coil control voltage of twenty-four volts DC and features one changeover contact (SPDT) rated at ten amps. This relay is suitable for applications requiring high rated current use. It includes a lockable test button and an LED indicator for signaling status. The narrow width of sixteen millimeters allows for versatile mounting options in various enclosures. Ideal for hard-wired logic automated systems, this relay complements industrial programmable logic controllers (PLCs). The LED indicator provides clear status signals both during the day and at night.

• Coil control voltage: 24 volts DC
• One SPDT contact rated for ten amps
• LED indicator and lockable test button

Product Highlights

This product reduces enclosure size and enhances machine reliability.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: RXG12BD
• Weight: 0.04 lb
• Line Rated Current: 10 A
• Operating Cycles: <= 1800 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
• Dielectric Strength: 1000 V AC between contacts; 5000 V AC between coil and contact
• Contact Configuration: 1 C/O
• Operating Temperature: -40 to 70 degrees C
• Country of Origin: China
