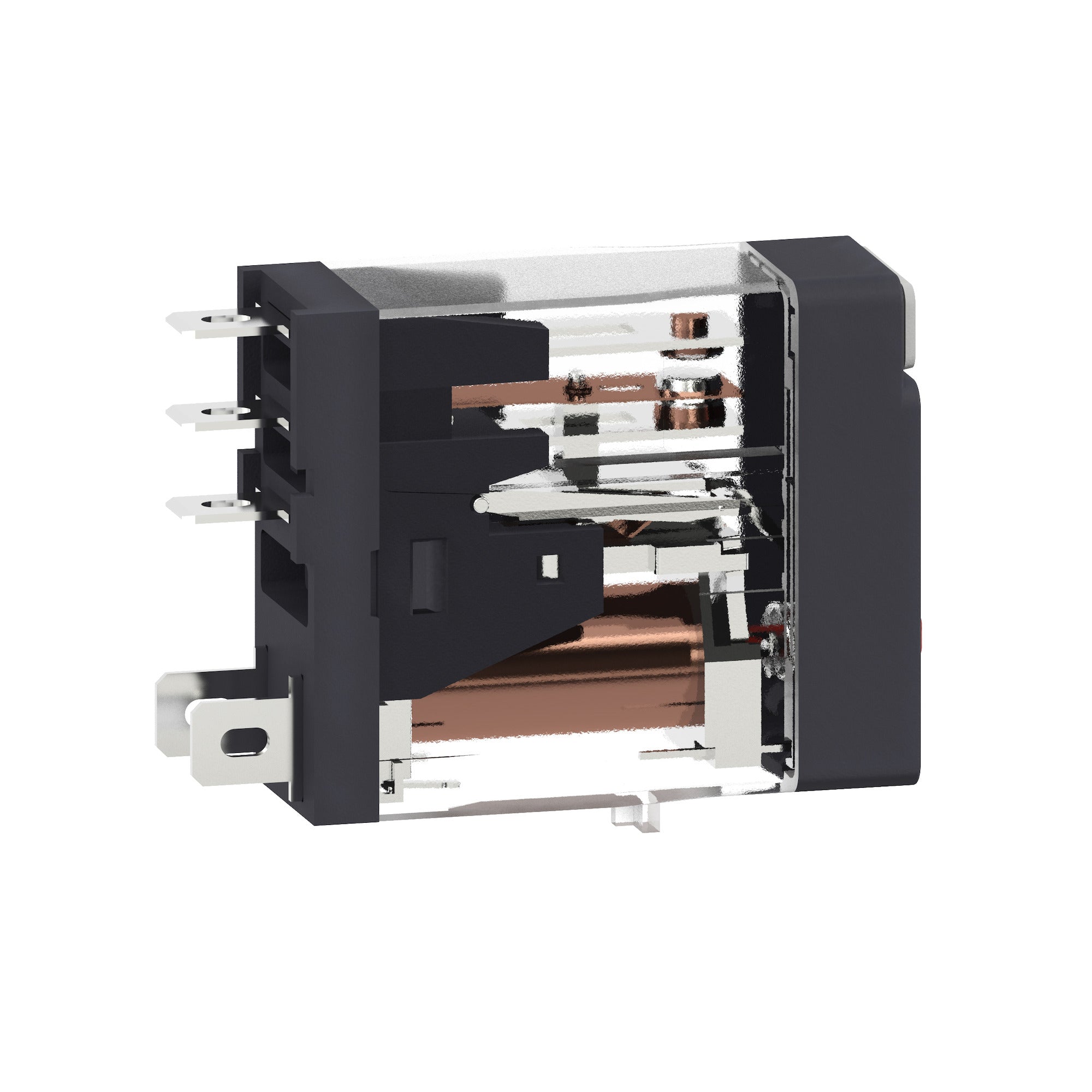

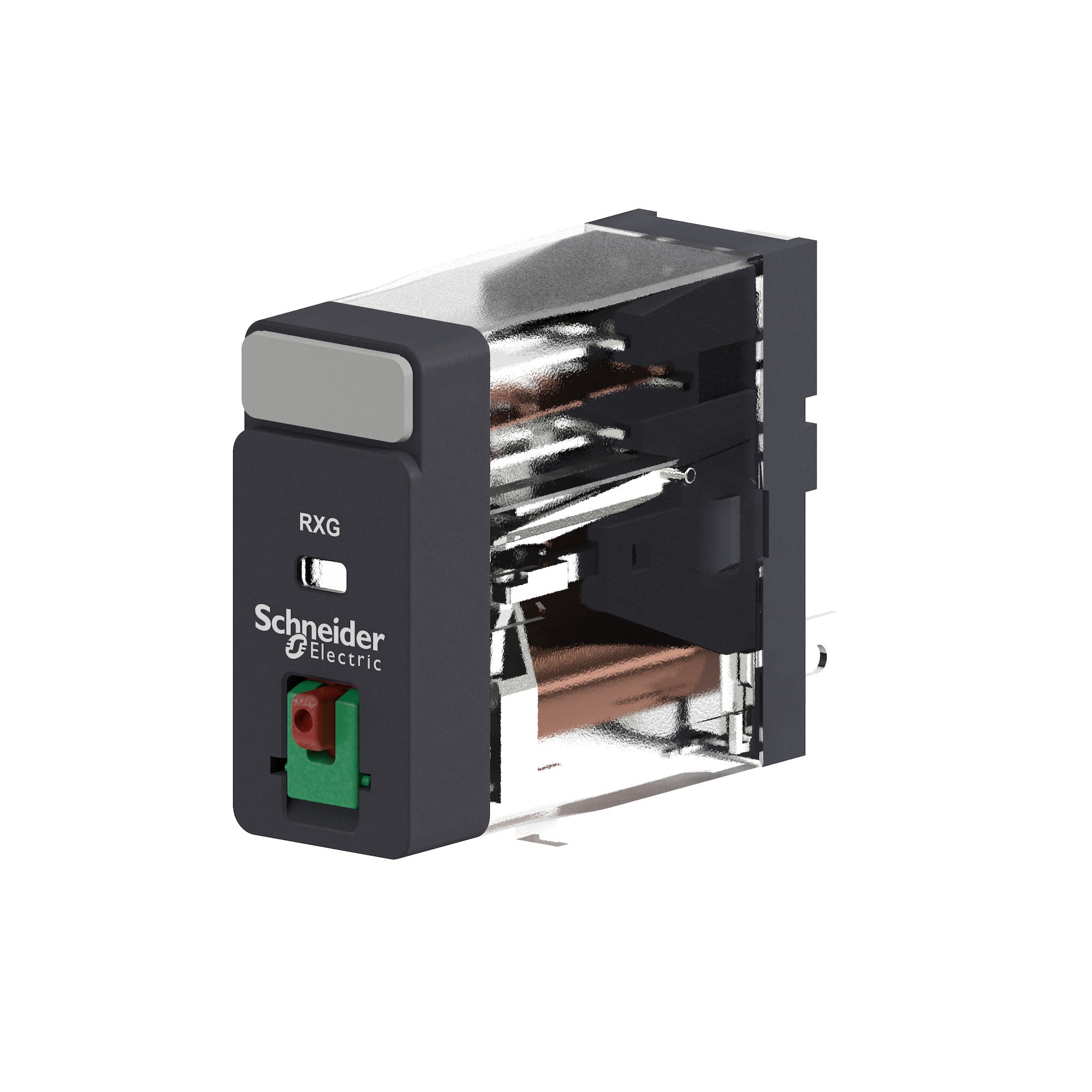

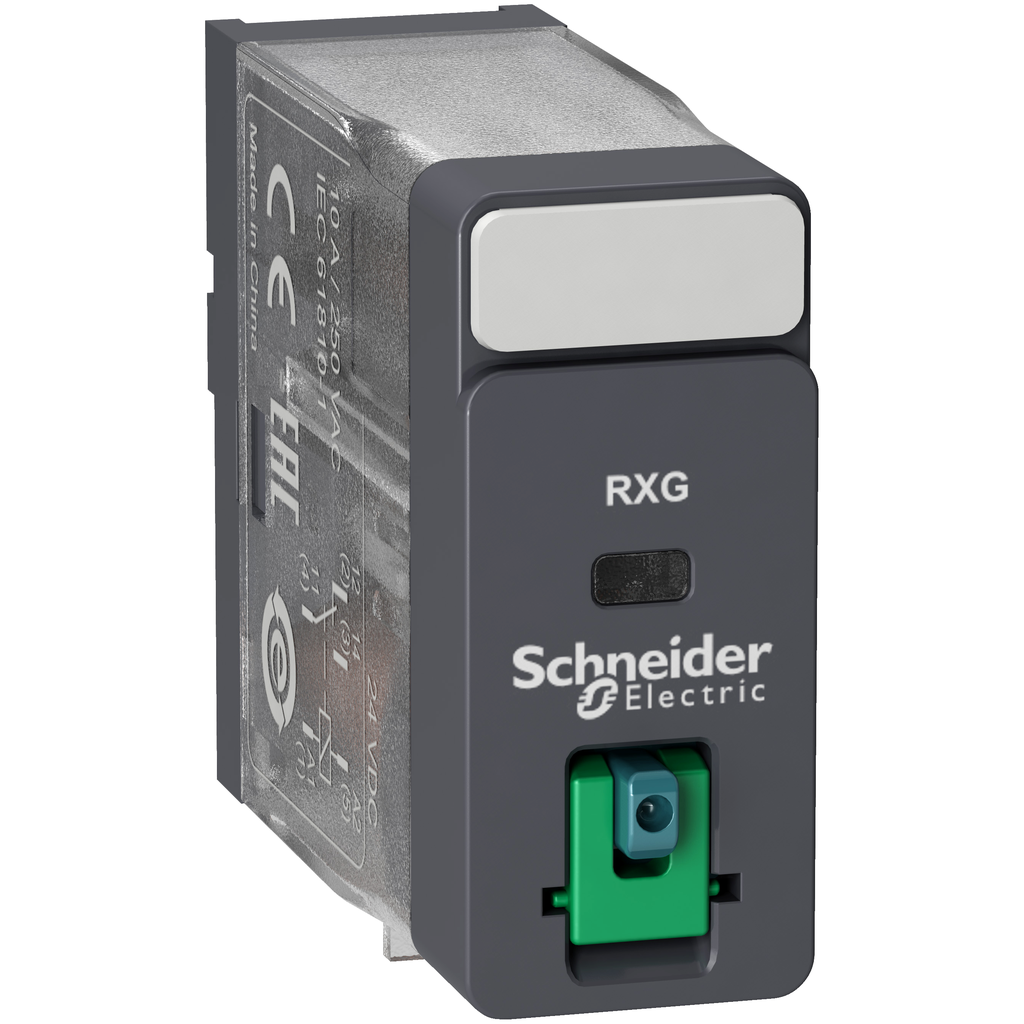

Schneider Electric RXG11BD SQD RXG11BD interface plug in relay 24V DC 10A

Product Description

The Schneider Electric RXG11BD is a plug-in relay designed for effective control in various industrial applications. This relay features a coil control voltage of twenty-four volts DC and supports one single pole double throw (SPDT) changeover contact rated for ten amperes. It is engineered to accommodate high-rated current with multiple contact options. The device enhances machine reliability while minimizing enclosure sizes. Its compact width of sixteen millimeters facilitates versatile mounting options, making it suitable for various automation tasks.

• Coil control voltage: 24V DC
• Contact configuration: 1 SPDT
• Lockable test button included

Product Highlights

This interface plug-in relay is ideal for hard-wired logic systems that work in conjunction with industrial programmable logic controllers (PLCs).

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: RXG11BD
• Weight: 0.04 lb
• Max Load Current: 10 A, 250 V AC
• Control Type: Lockable test button
• Operating Temperature: -40 to 70 degrees C
• Operating Cycles: <= 1800 cycles/hour under load; <= 18000 cycles/hour no load
• Country of Origin: China
• Certifications: CE, CSA, DNV-GL, EAC, UL
