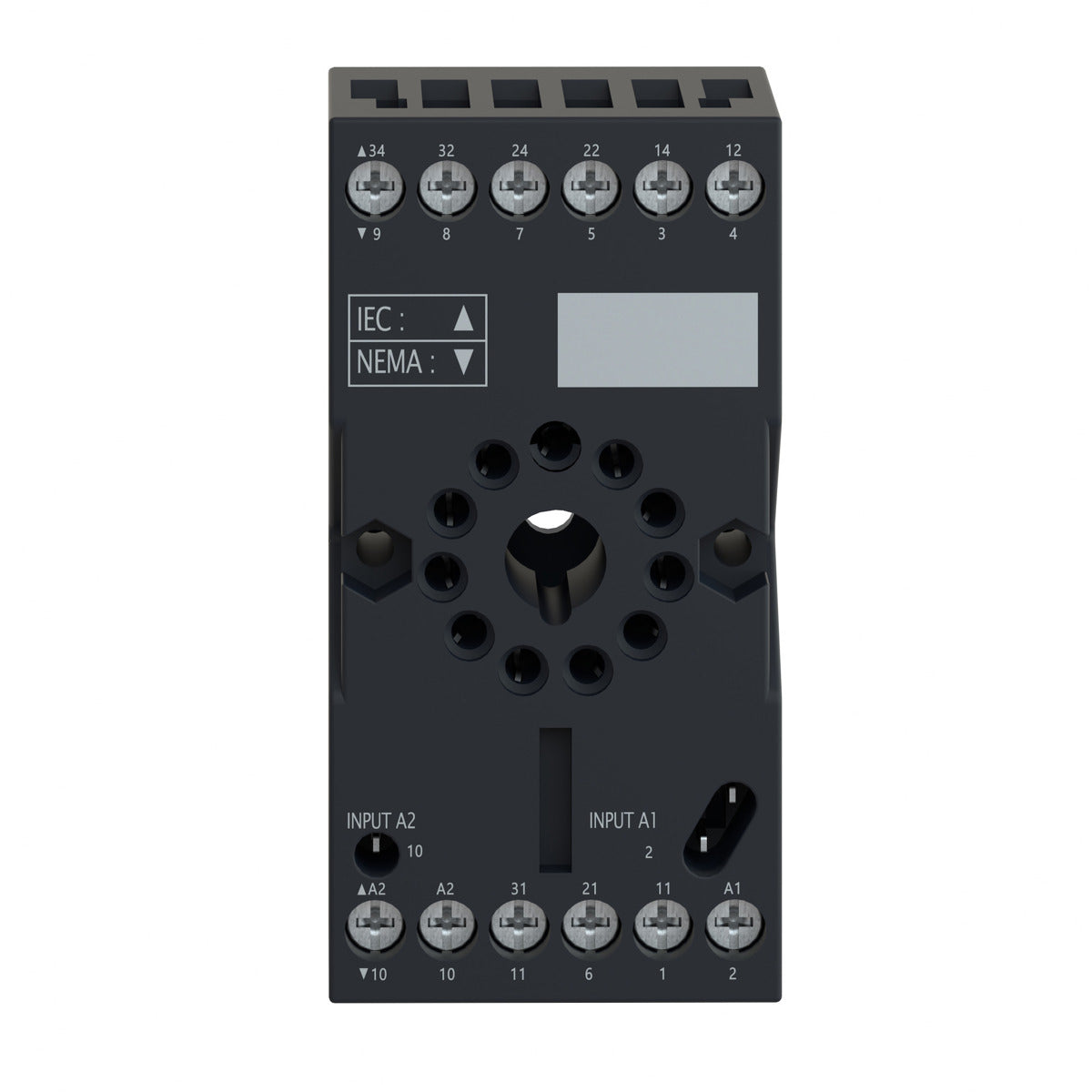

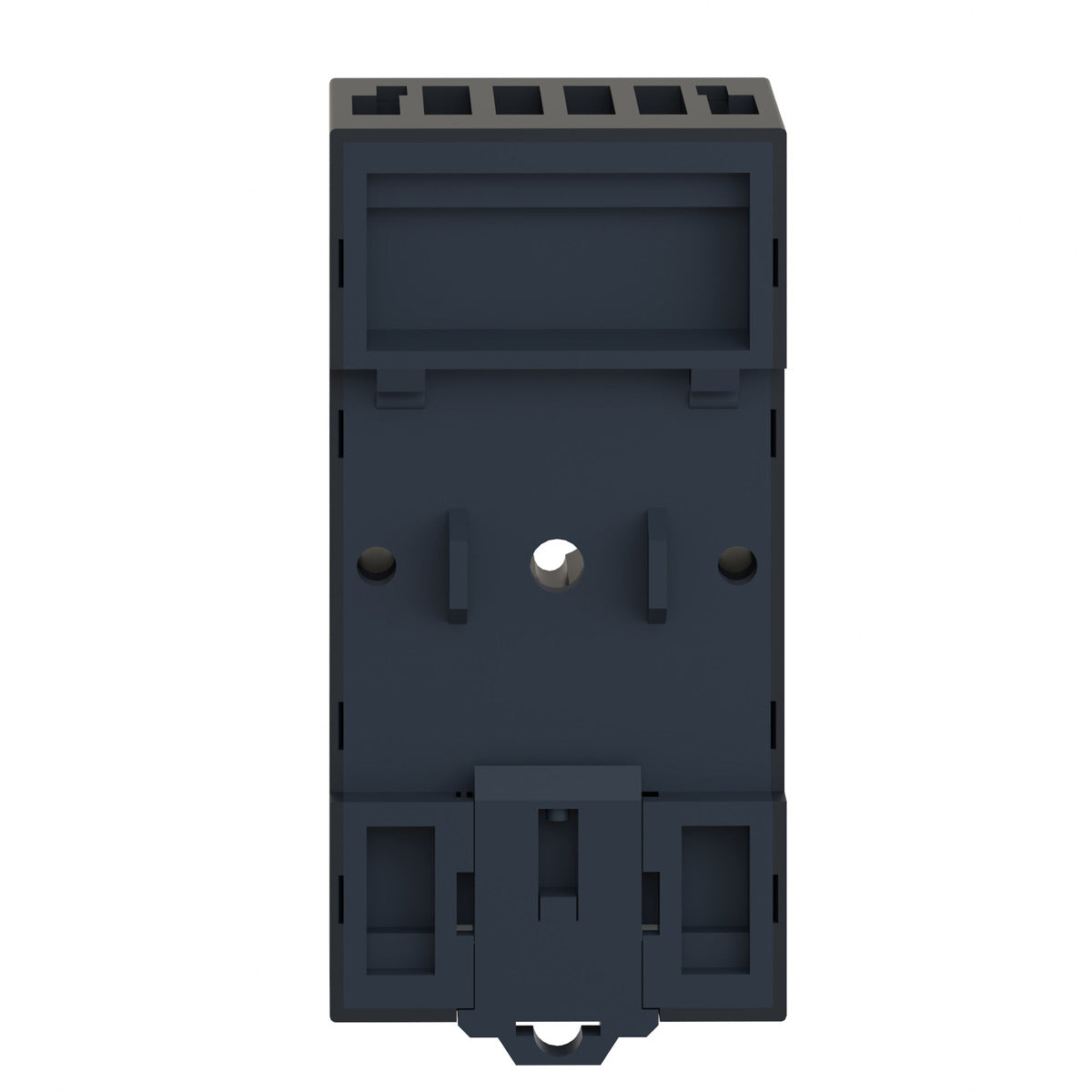

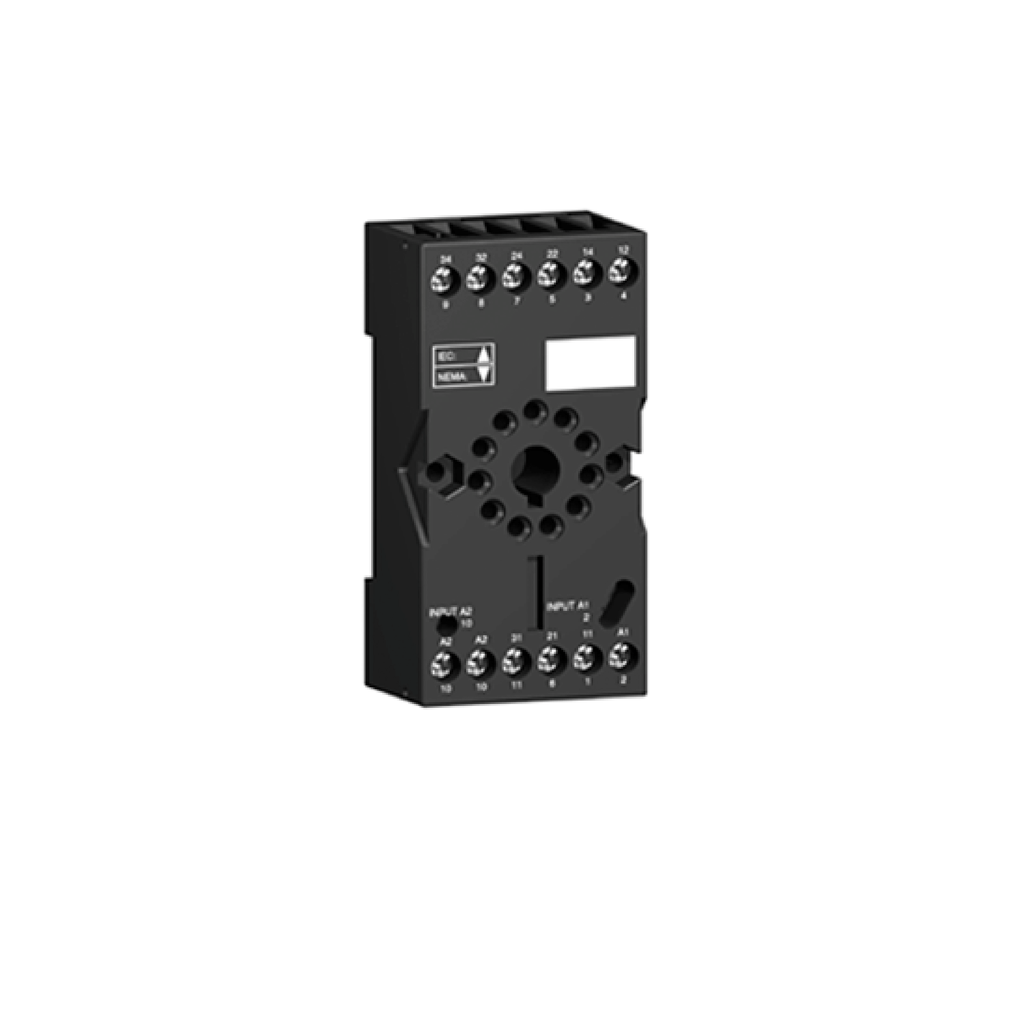

Schneider Electric RUZC3M Square D 250 Volt 10 Amp Din Rail/Panel Mount Box Lug Connector Terminal Relay Socket

Product Description

The Schneider Electric RUZC3M is a square D relay socket designed for use with a coil control voltage of 250 volts AC. It features mixed contact ratings capable of handling currents up to 10 amps. This relay socket can help reduce enclosure sizes and improve machine reliability, making it highly versatile for various mountings.

• Coil control voltage: 250 Volts AC
• Rated current: 10 Amps
• Compatible with plug-in control relay systems

Product Highlights

The RUZC3M provides a simple installation process and connects efficiently to the relay. It is suitable for hard-wired logic automated systems, enhancing the functions of industrial programmable logic controllers (PLCs).

Product Information

Standard Information

• Catalog Number: RUZC3M
• Brand: Schneider Electric

Technical Specifications

• Type: Socket
• Width: 1.5 inches
• Weight: 0.12 lb
• Voltage Rating: 250 Volt
• Amperage Rating: 10 Amp
• Mounting: By screw panel; clip-on 35 mm symmetrical DIN rail
• Enclosure: IP20
• Operating Temperature: -40 to 55 degrees Celsius
