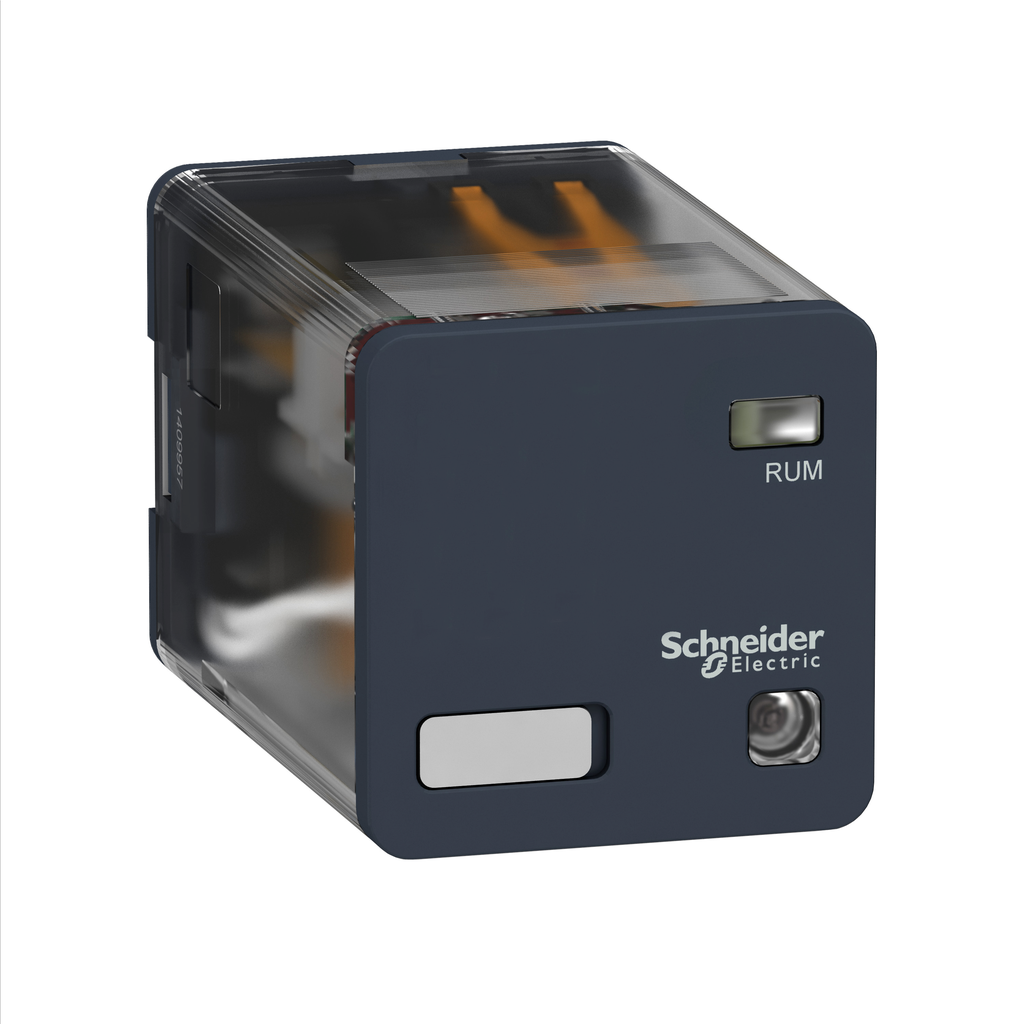

Schneider Electric RUMC33GD Universal Plug In Relay 10A 125V DC

Product Description

This Schneider Electric RUMC33GD universal plug-in relay features cylindrical pins and operates on a control coil voltage of one hundred twenty-five volts DC. It includes three changeover contacts with a triple pole double throw configuration, rated at ten amps. This relay is designed to offer a comprehensive solution for various applications and features a Power On LED indicating readiness. Its compact design helps reduce the size of enclosures while enhancing machine reliability.

The relay has an IP40 rating and includes a transparent cover for easy visual inspection of contact status. It integrates smoothly with hard-wired logic automated systems, supporting industrial programmable logic controllers (PLCs). The status display with LED provides clear visibility in both daylight and darkness.

• Control voltage: one hundred twenty-five volts DC
• Three changeover contacts with a rating of ten amps
• IP40 rated with a transparent cover for status viewing

Product Highlights

Effective for various automation applications with high reliability and clear status indications.

Product Information

Standard Information

• Catalog Number: RUMC33GD
• Manufacturer: Schneider Electric

Technical Specifications

• Weight: 0.19 lb
• Amperage: 10 Amp at 250 V AC
• Standard: CSA C22.2 No 14, EN/IEC 61810-1, UL 508
• Operating Temperature: -40 to 55 degrees C
• Country of Origin: China
• Contact Configuration: 3 C/O
• Operating Cycles: <= 1200 cycles/hour under load
• Certifications: CSA, EAC, UL
