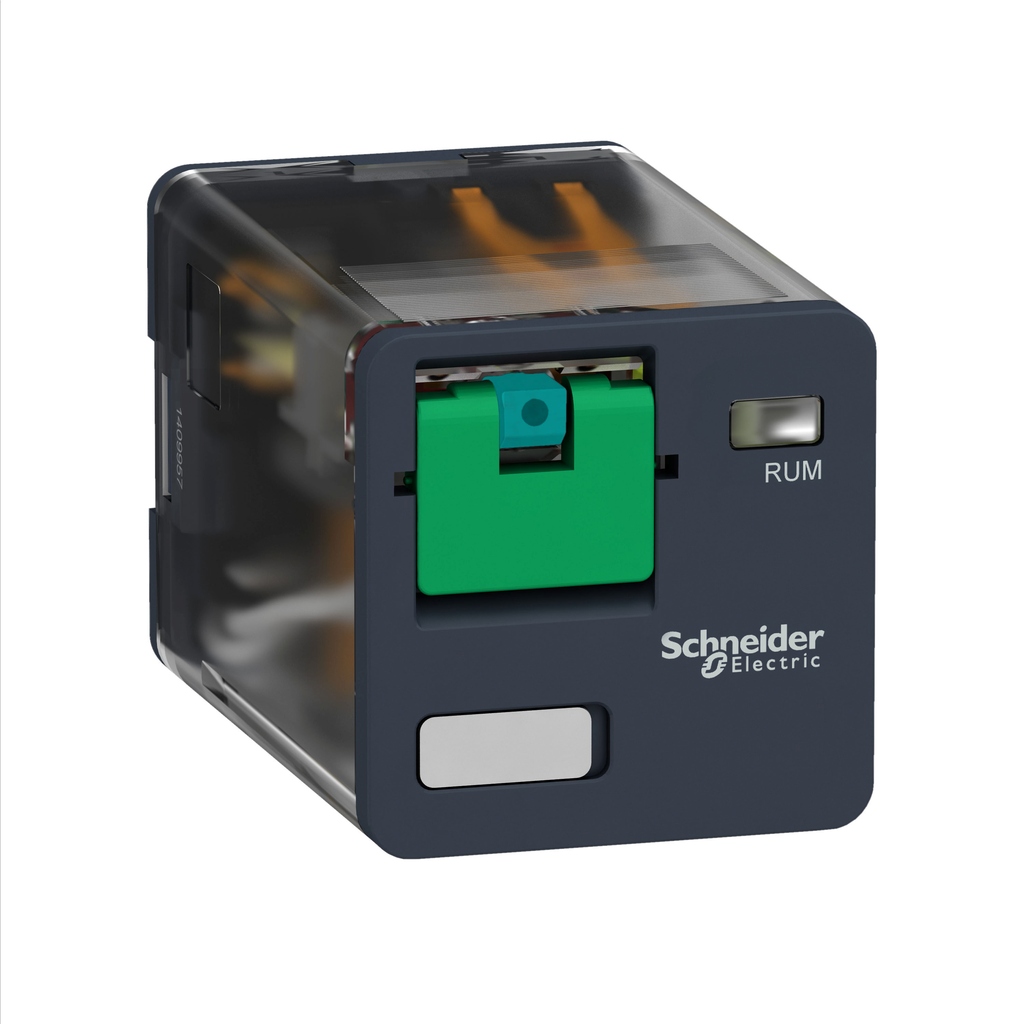

Schneider Electric RUMC31BD SQD RUMC31BD universal plug in relay 24V DC

Product Description

The Schneider Electric RUMC31BD is a universal plug-in relay designed for control and automation applications. This relay operates at a control coil voltage of twenty-four volts DC and features three changeover contacts with a rating of ten amps. It is suitable for demanding applications and includes a lockable test button for easy operation. The compact design allows for easy mounting in various environments while promoting machine reliability.

• Control coil voltage: 24V DC
• Includes a three-way changeover contact rated for ten amps
• Lockable test button for operational ease

Product Highlights

The IP40 rating and transparent cover enable visual contact status verification, making this relay ideal for hard-wired logic automated systems used with industrial programmable logic controllers (PLCs).

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: RUMC31BD
• Operating Cycles: <= 1200 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
• Amperage: 10 Amp (multiple voltages)
• Standard Compliance: CSA C22.2 No 14, IEC 61810-1, UL 508
• Country of Origin: China
• Control Type: Lockable test button
• Resistance: 470 OHM at 20 C +/- 15
• Operating Temperature: -40-55 degrees C
