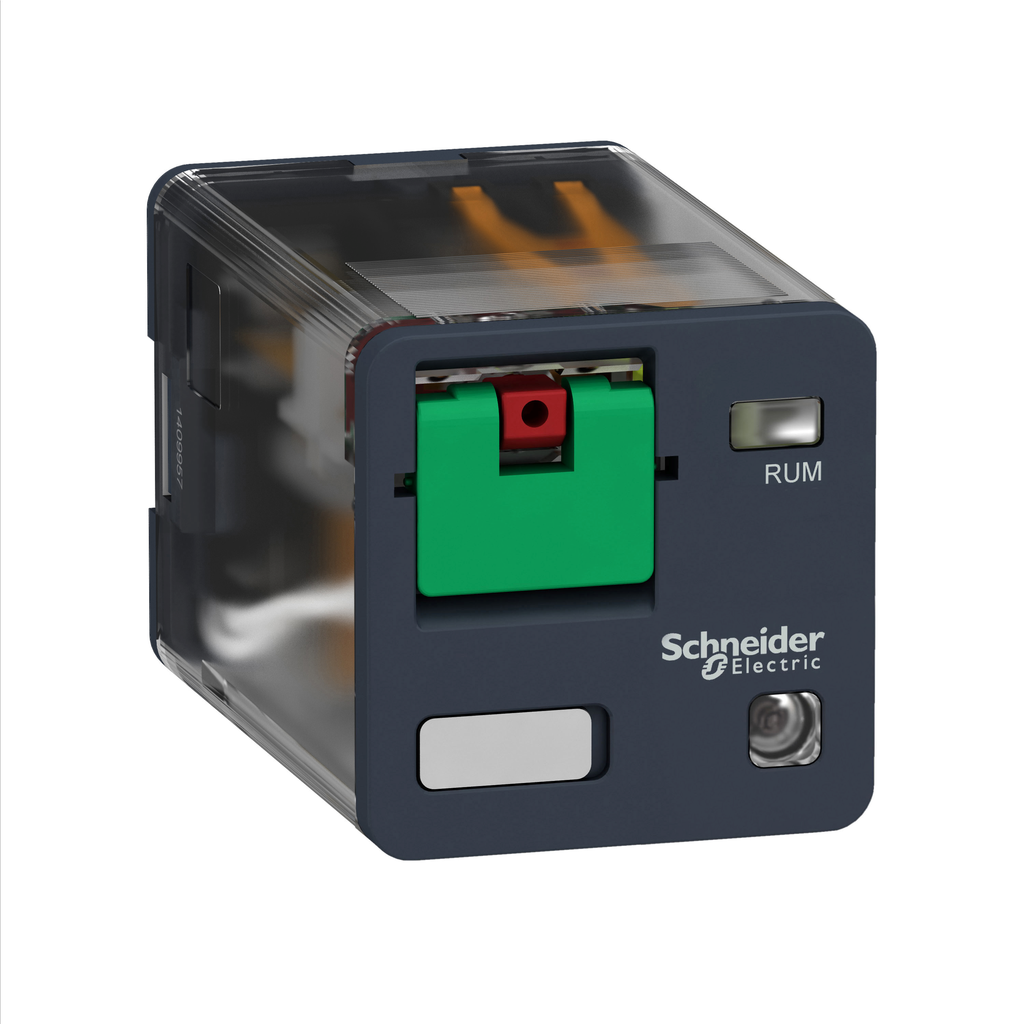

Schneider Electric RUMC22P7 Square D RUMC22P7 230 VAC 10 Amp 2CO Universal Plug-In Relay with LED

Product Description

The Schneider Electric RUMC22P7 is a universal plug-in relay designed for various applications. This relay operates at a control coil voltage of 230V AC and features two changeover contacts with a rating of 10 Amp. Its compact design allows for easy mounting and installation in various systems.

• Control Voltage: 230V AC
• Contact Configuration: 2 Changeover Contacts
• Compact Design for Easy Mounting

Product Highlights

This product includes a lockable test button and a Power On LED indicator for operational readiness. The IP40 rating protects against solid objects, while the transparent cover allows visual inspection of the contact status. It complements programmable logic controllers in automated systems, providing reliable operation.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: RUMC22P7
• Weight: 0.19 lb
• Operating Temperature: -40 to 55 degrees C
• Storage Temperature: -40 to 85 degrees C
• Country of Origin: China
• Certifications: CSA, EAC, UL
• Operating Cycles: <= 1200 Cycles/hour Under Load
• Contact Material: Silver Alloy
