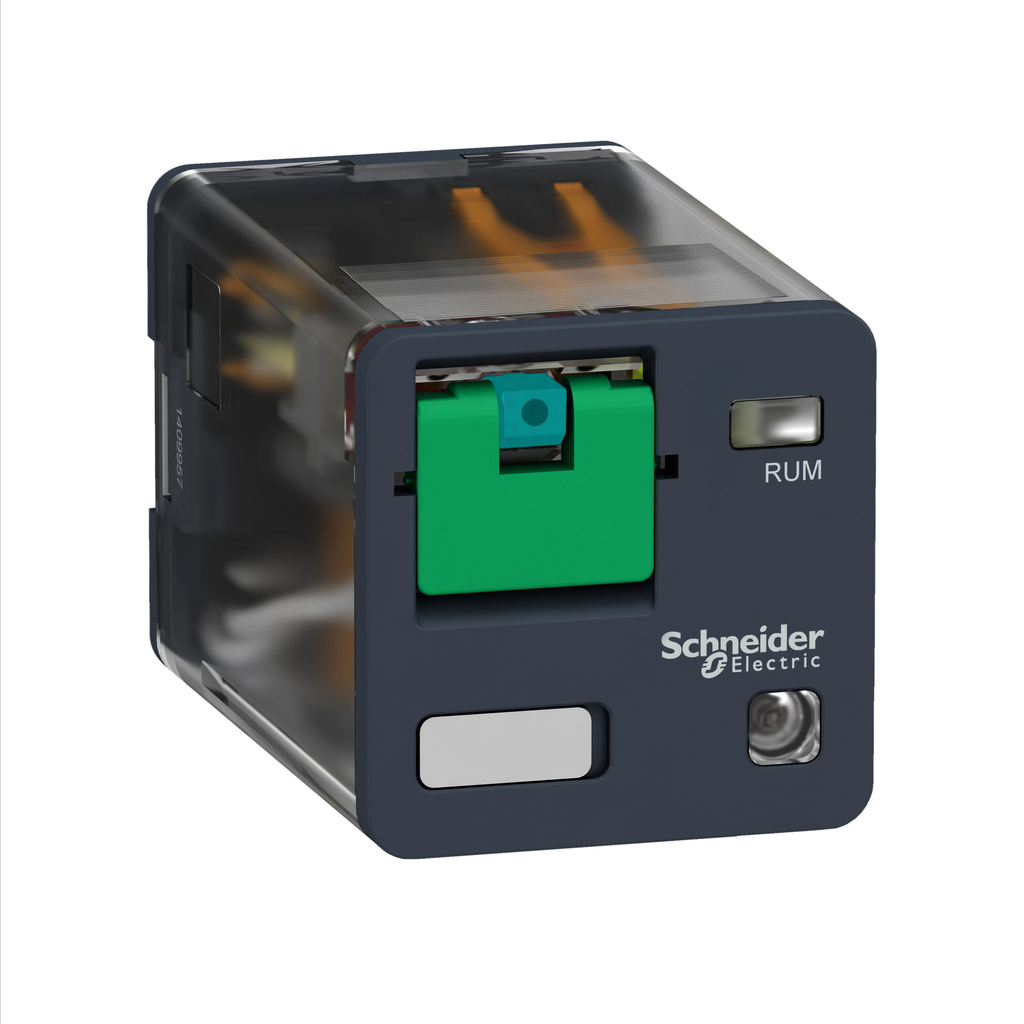

Schneider Electric RUMC22JD Square D 277 VAC 10 Amp DPDT Socket Mount Plug Pin General Purpose Relay

Product Description

The Schneider Electric RUMC22JD is a general purpose relay designed for a variety of applications. This relay operates at a control coil voltage of twelve volts DC and features two changeover contacts in a double pole double throw configuration, rated for ten amps. Its compact design helps in reducing enclosure sizes and enhancing machine reliability, making it suitable for installation in various places.

• Product is IP40 rated, providing effective protection against solid objects.
• Includes one-step lockable test button and a power-on LED indicator.
• Compatible with hard-wired logic automated systems.

Product Highlights

This relay provides a complete system solution for demanding applications, enabling it to work effectively with industrial programmable logic controllers.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: RUMC22JD
• Control Coil Voltage: 12V DC
• Operating Temperature: -40 to 55 degrees C
• Weight: 0.19 lb
• Amperage Rating: 10 Amp
• Operating Cycles: <= 1200 Cycles/hour Under Load
• Contact Configuration: 2 C/O
