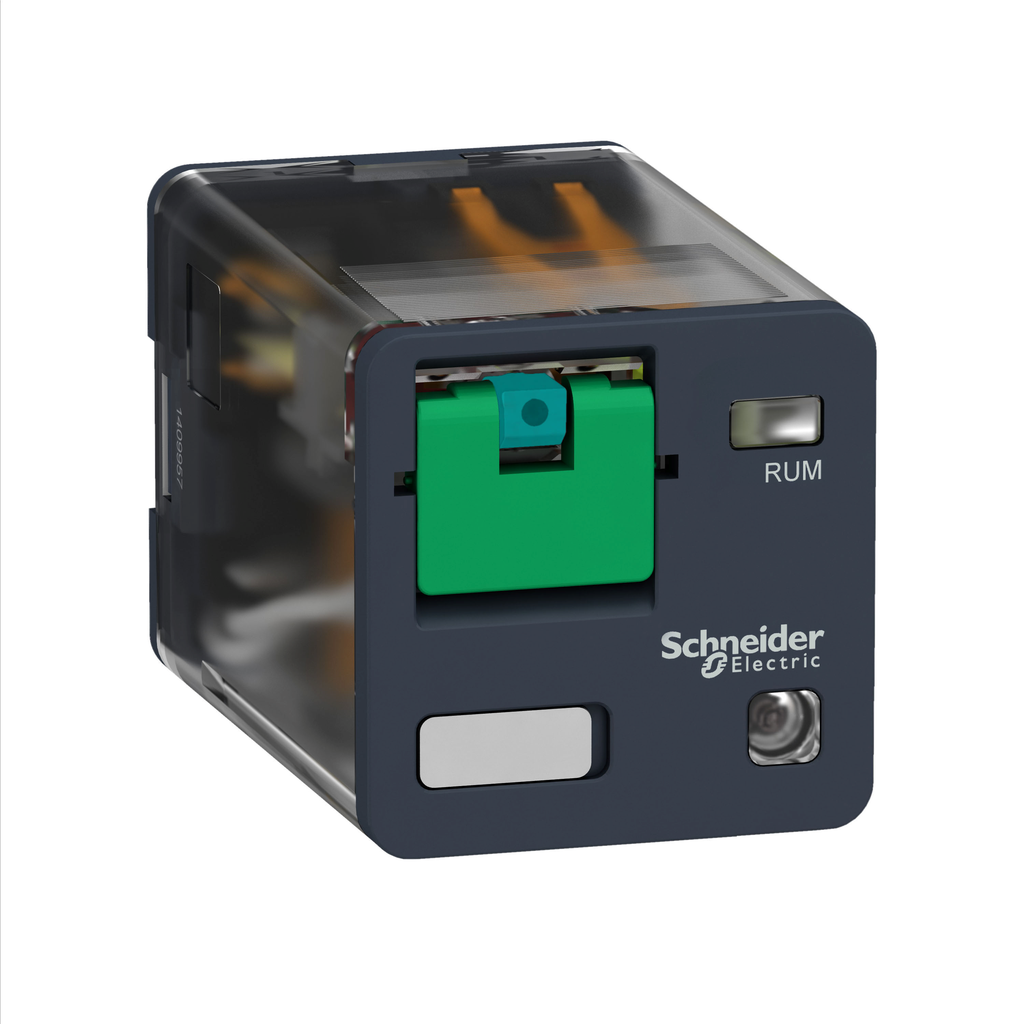

Schneider Electric RUMC22BD Sqd Relay 2 C/O 24 Volt Universal Plug-In Relay

Product Description

The Schneider Electric RUMC22BD is a 24 Volt universal plug-in relay designed for efficient operation in various settings. This relay features a control coil voltage of twenty-four volts direct current and two changeover contacts, making it suitable for demanding applications.

• Control coil voltage: 24V DC
• Two changeover contacts with a rating of 10A
• LED status display for clear visibility

Product Highlights

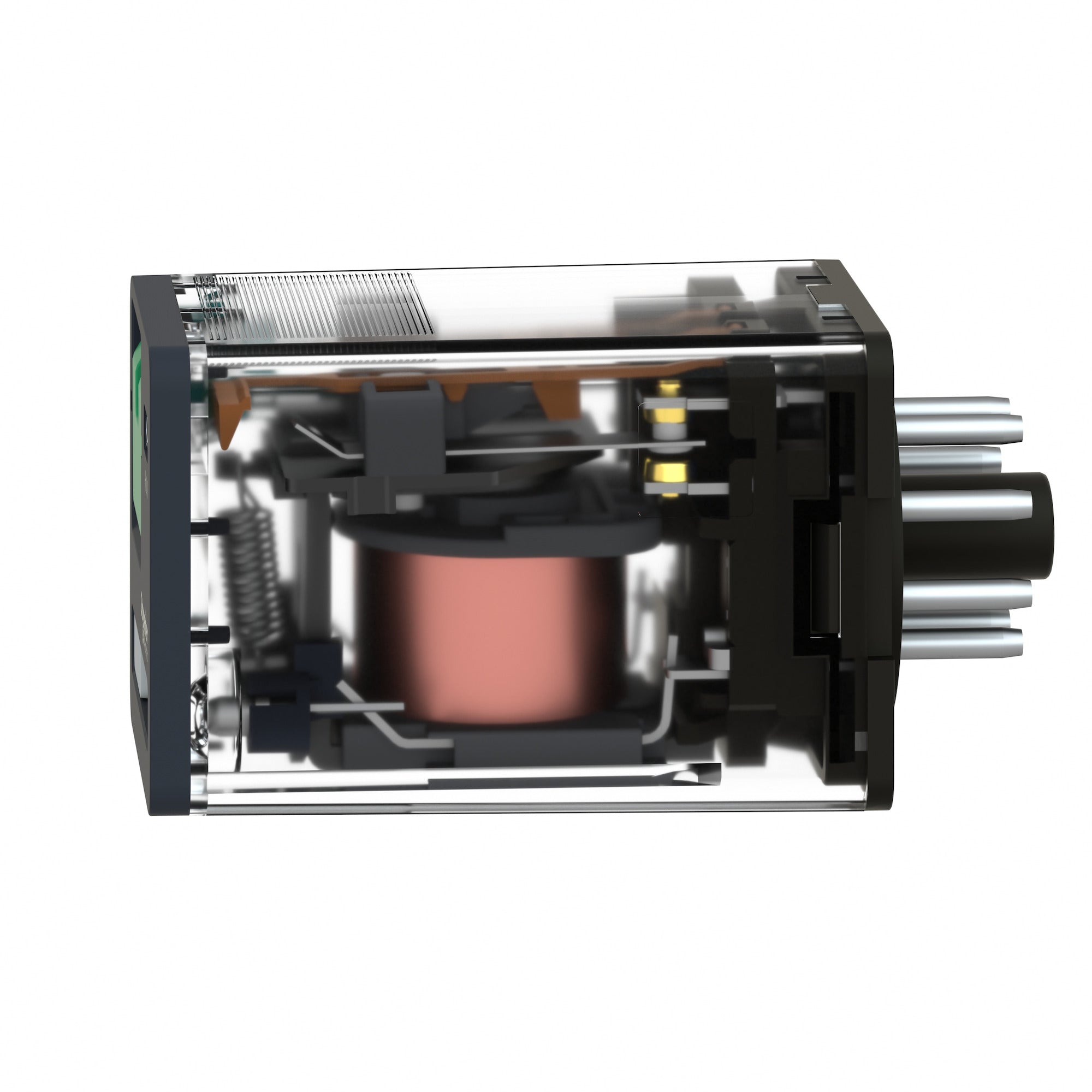

The RUMC22BD is built for flexibility and reliability. The one-step lockable test button allows for easy testing, while the transparent cover enables a visual check of the contacts. Additionally, this product is IP40 rated, ensuring protection from solid objects.

Product Information

Standard Information

• Brand: Schneider Electric
• Model Number: RUMC22BD

Technical Specifications

• Weight: 0.19 lb
• Country of Origin: China
• Operating Temperature: -40 to 55 degrees C
• Contact Configuration: 2 C/O
• Standard Compliance: CSA C22.2 No 14, IEC 61810-1, UL 508
• Operating Cycles: Up to 1200 cycles/hour under load
• Certifications: CSA, EAC, UL
• Storage Temperature: -40 to 85 degrees C
