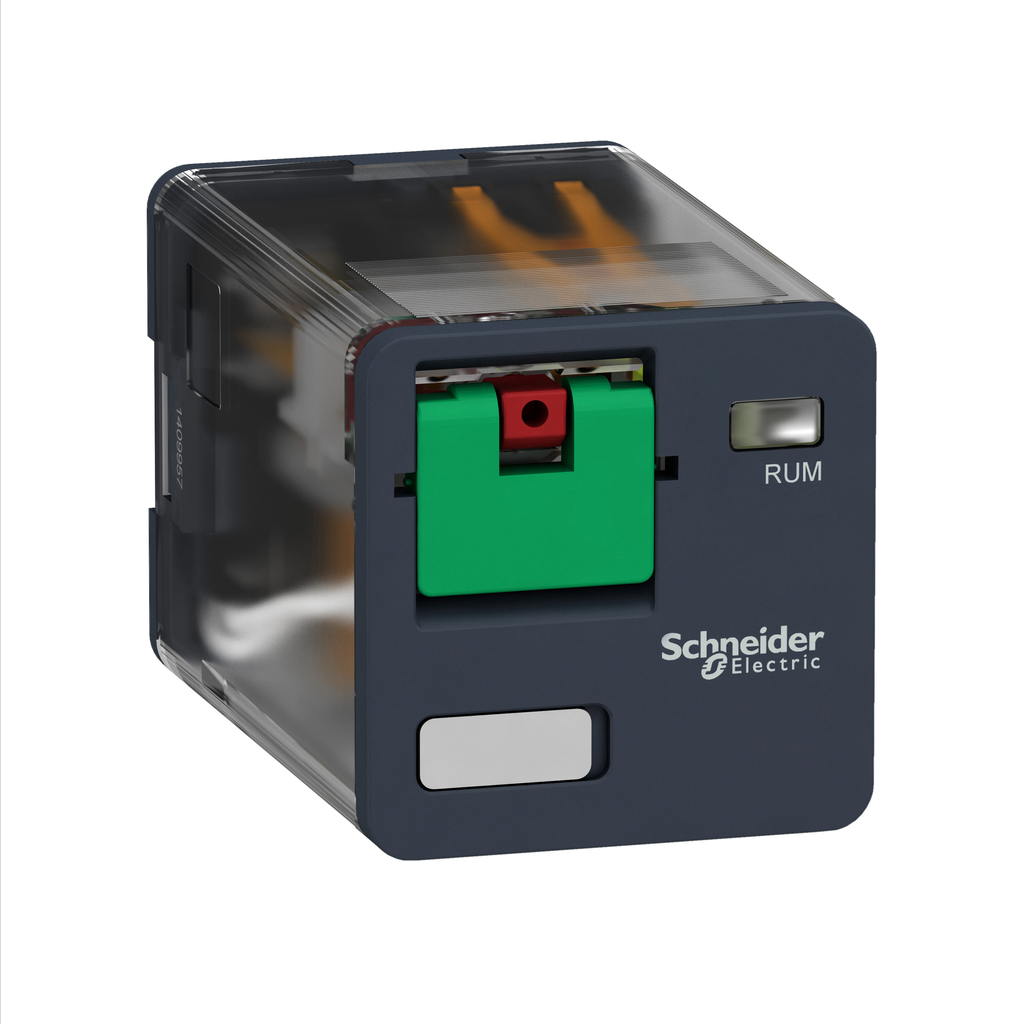

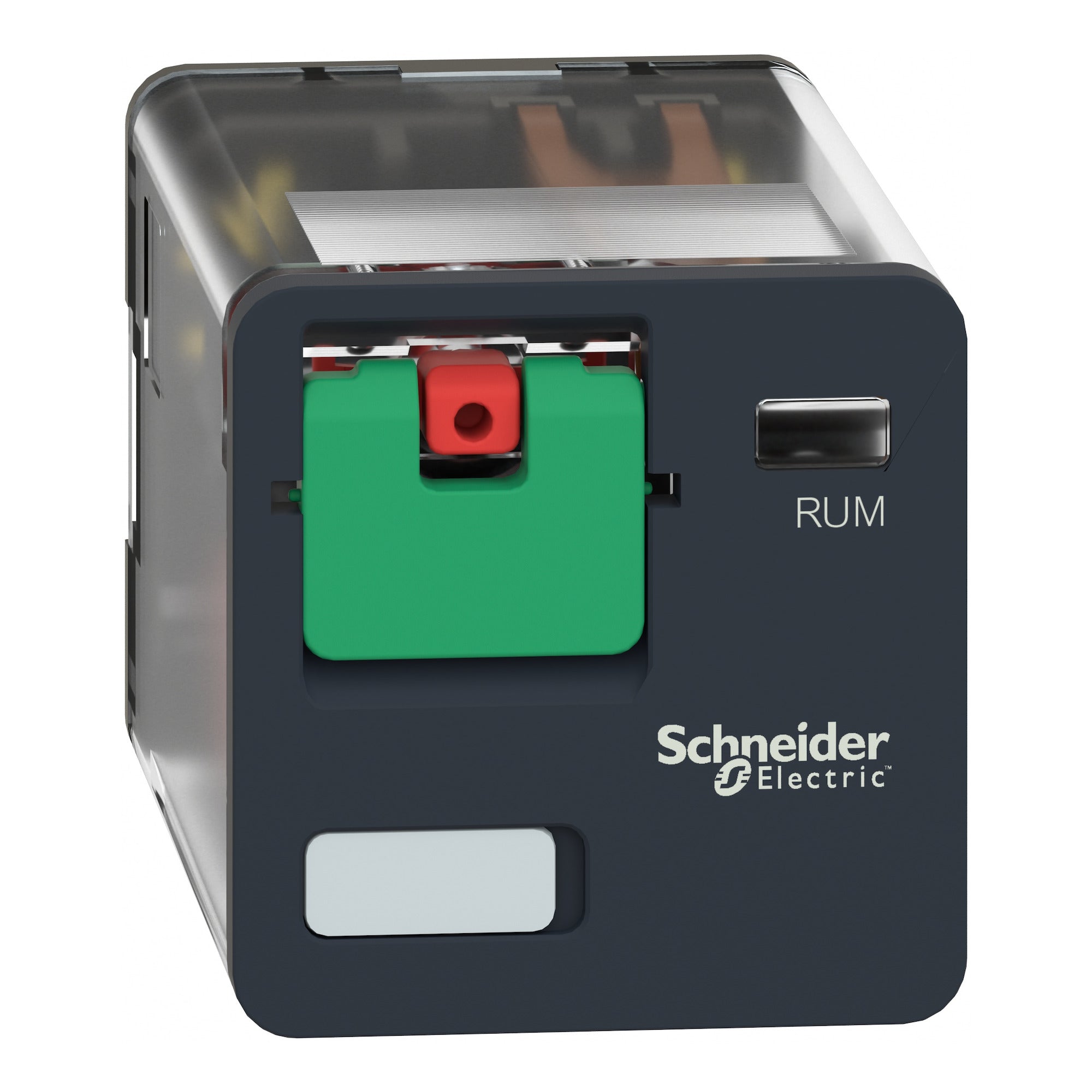

Schneider Electric RUMC21P7 SQD RUMC21P7 Universal Plug In Relay 230V AC

Product Description

The Schneider Electric RUMC21P7 is a universal plug-in relay with a control coil voltage of two hundred thirty volts AC. It has two changeover contacts, double pole double throw, rated for ten amps. This relay is suitable for various control applications in industrial settings.

• Plug-in design with cylindrical pins
• Includes a lockable test button
• Compact form helps save space in enclosures

Product Highlights

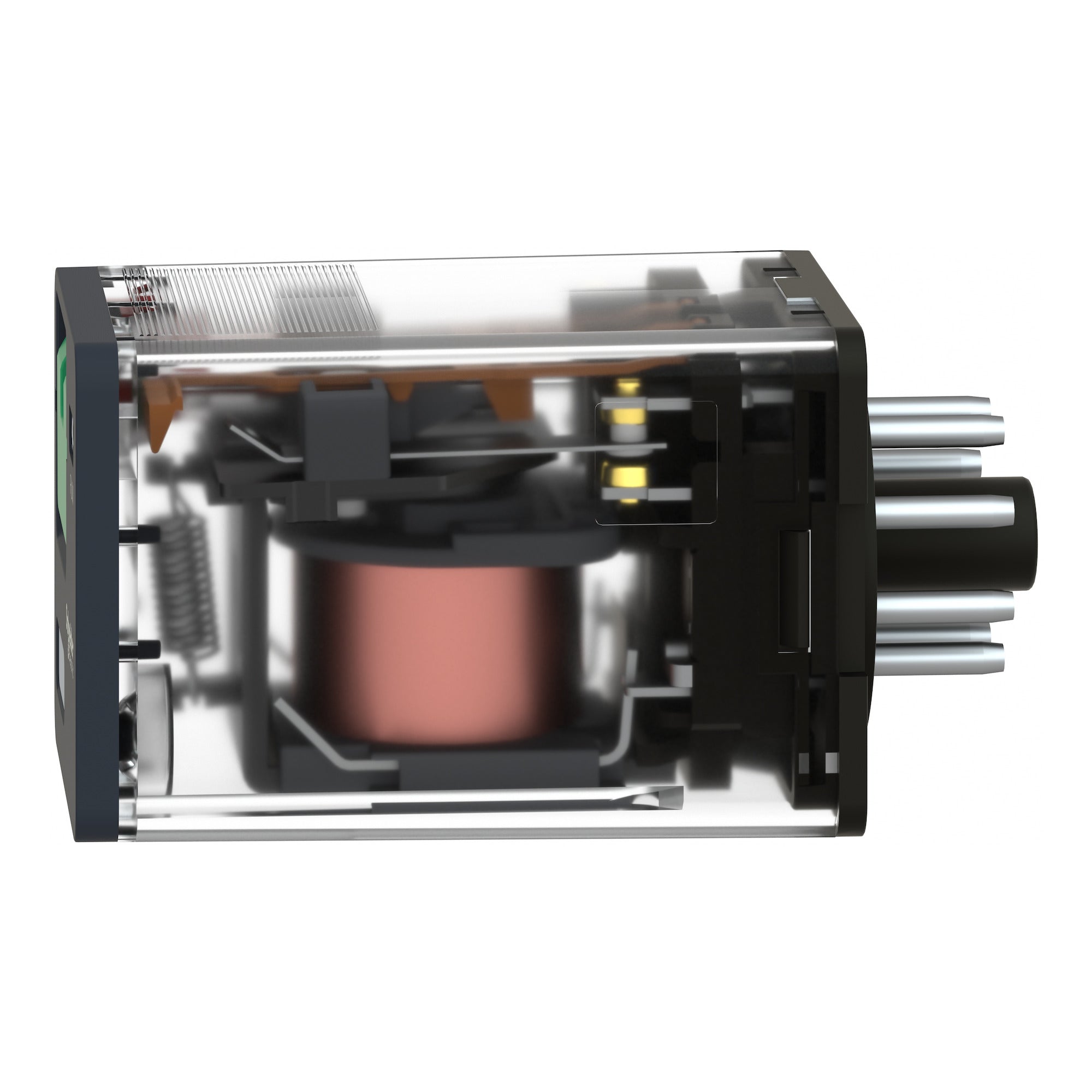

The relay is designed for reliable operation in demanding environments. It allows for visual inspection due to its transparent cover, making it easy to check the status of contacts.

Product Information

Standard Information

• Catalog Number: RUMC21P7
• Manufacturer: Schneider Electric

Technical Specifications

• Control Coil Voltage: 230V AC
• Amperage Rating: 10 Amps
• Contact Configuration: 2 Changeover
• Certification: CSA, EAC, UL
• Storage Temperature: -40 to 85 degrees C
• Operating Temperature: -40 to 55 degrees C
• Operating Cycles: <= 1200 Cycles/hour under load
