Schneider Electric RUMC21F7 Square D 120 VAC 10 Amp 2CO Din Rail/Panel Mount Plug-In Relay

Product Description

The Schneider Electric RUMC21F7 is a plug-in relay designed for various control and automation needs. Operating at 120 volts AC, this relay features two changeover contacts rated for ten amps. It is suitable for use in industrial applications that require reliable control and switching capabilities.

• Voltage rating: 120 VAC
• Contact configuration: Double pole double throw (2CO)
• High durability and reliability in demanding environments

Product Highlights

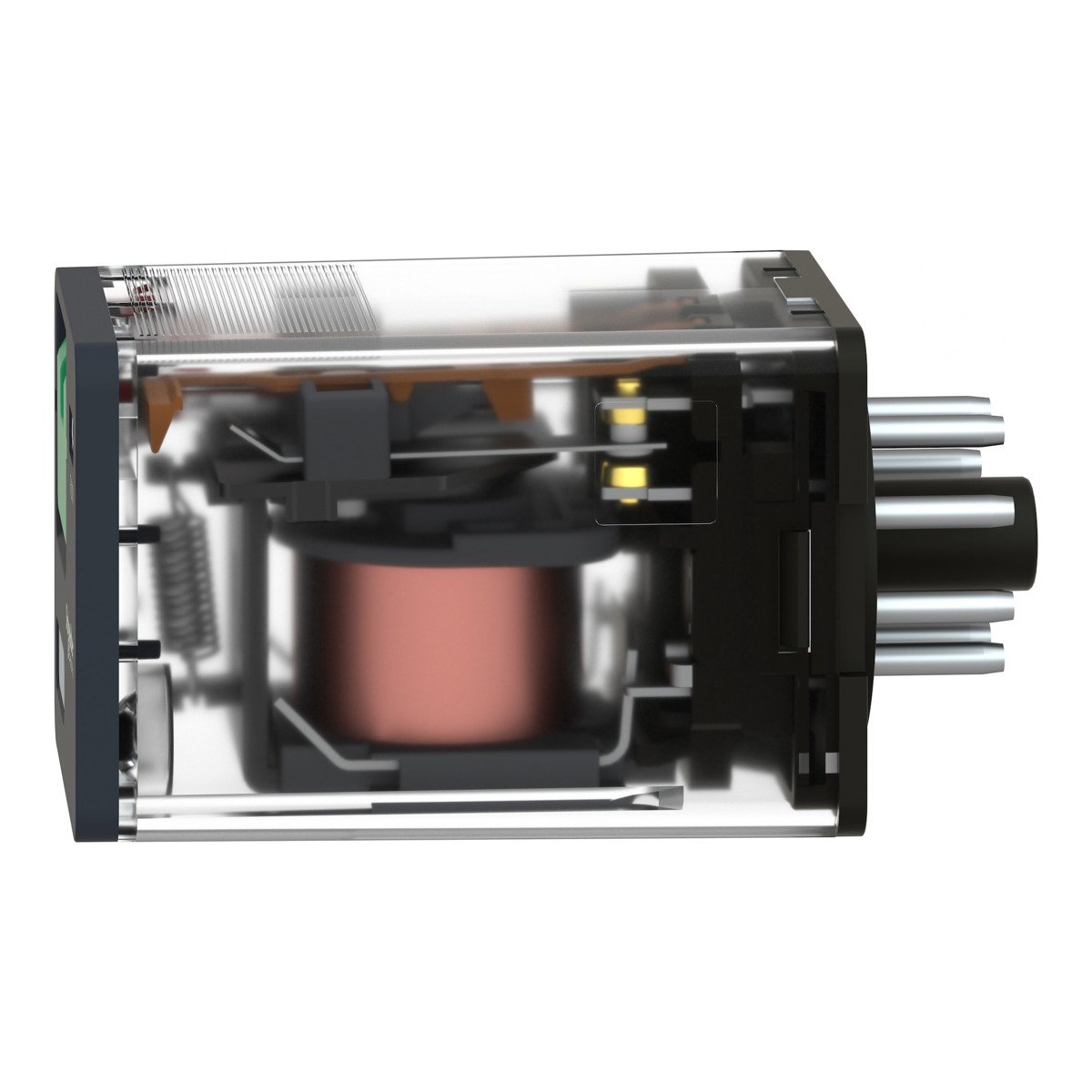

This relay is ideal for applications such as motor control, HVAC systems, and lighting control. Its compact design allows for easy installation on DIN rails or panels. The relay is IP40 rated and features a transparent cover for visual contact status inspection.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• MPN: RUMC21F7
• Catalog Number: RUMC21F7
• Weight: 0.19 lb
• Operating Voltage: 120 VAC
• Amperage: 10 Amp
• Contact Configuration: 2 C/O
• Country of Origin: China
• Operating Temperature: -40 to 55 degrees C
• Storage Temperature: -40 to 85 degrees C
• Certifications: CSA, EAC, UL
