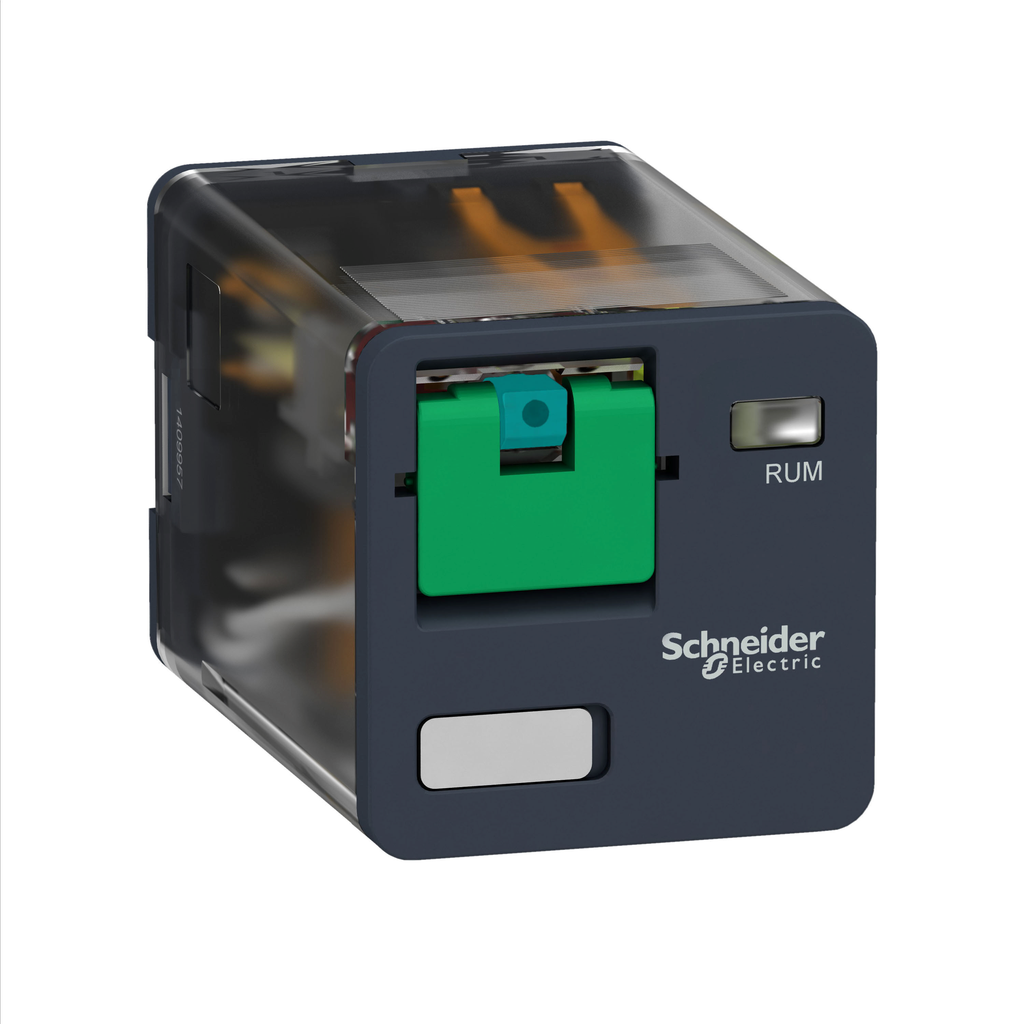

Schneider Electric RUMC21BD Square D 24 VDC 10 Amp 2CO Din Rail/Panel Mount Plug-In Relay

Product Description

Schneider Electric RUMC21BD is a square D universal plug-in relay with a control coil voltage of twenty-four volts DC. This model features two changeover contacts, double pole double throw, and supports a rating of ten amps. It is designed for tough applications and includes a lockable test button for easy testing. The compact design allows for mounting in various setups, aiding in space conservation.

• Rated for up to ten amps
• Designed for use with hard-wired logic systems
• IP40 rating with transparent cover for contact inspection

Product Highlights

Designed for reliability and efficiency, this relay reduces enclosure sizes and integrates well with industrial programmable logic controllers, making it a suitable choice for control and automation tasks.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: RUMC21BD
• Control Coil Voltage: 24 VDC
• Rated Current: 10 A
• Contact Configuration: 2 C/O
• Operating Temperature: -40 to 55 degrees Celsius
• Weight: 0.19 lb
• Country of Origin: China
• Certifications: CSA, UL
